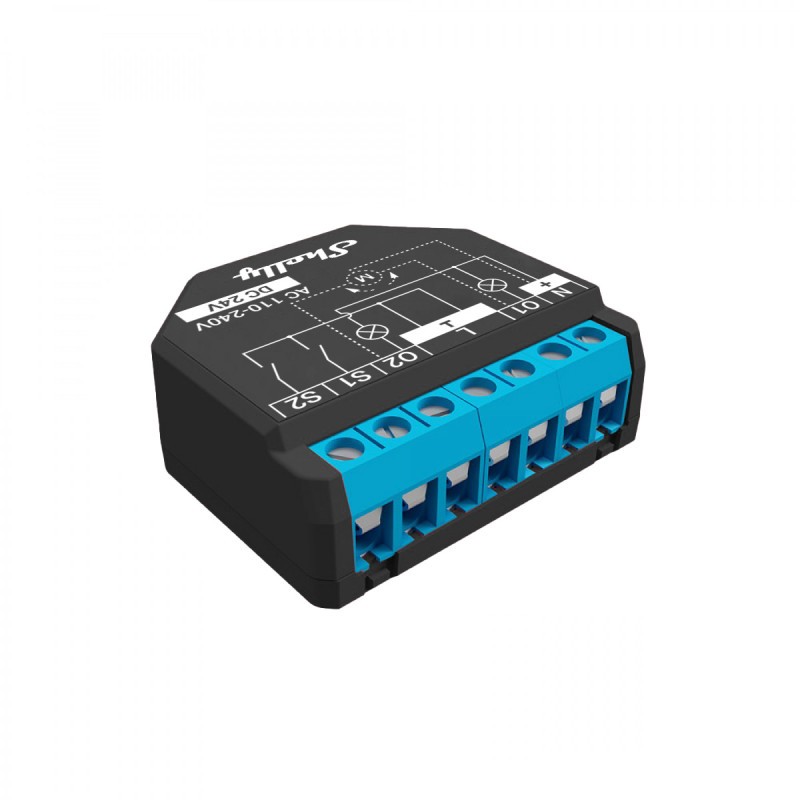

SHELLY - Dual switch WiFi module with roller shutter mode and consumption measurement (Shelly Plus 2PM)

Shelly Plus 2PM is a two-channel single-phase relay supporting up to 10 A per channel and a total current of 16 A (peak of 18 A). It is equipped with two power meters for each channel and an overload protection function to limit your energy consumption. The opening control allows you to control and monitor roller shutters, blinds, curtains, gates or other bidirectional alternating current motors.

the products Shelly can work autonomously, by connecting to your Wifi, or can serve as accessories to your home automation box.

New Shelly PLUS range

Enjoy home automation and supreme control with the new generation of Shelly devices - Shelly Plus!
Shelly smart relays now feature advanced control of electrical devices thanks to an extremely fast processor, faster connectivity, improved integration and enhanced security! You can now add devices easily via the Bluetooth connection, using the Shelly Cloud app. The Shelly Plus line supports TLS encryption and has an improved shell for standardized support for external sensor plugs.

Curtains that follow your schedule

Shelly Plus 2PM supports opening control, making it perfect for automating curtains, roller shutters, garage doors, awnings, gates, and any other two-way motor in your home. Use the "Schedules" feature to create the perfect morning/evening routines by setting Shelly Plus 2PM to open/close your home's curtains at predefined times each day. In addition, precise position control allows you to adjust the desired intermediate position of your curtains as a percentage (%).

Control two lights with 1 device

Shelly Plus 2PM allows you to control two different circuits and monitor their consumption separately. This way, you can control two different lights on the same phase with a single device, saving you extra energy. Use the manual switch, the app, the favorite home automation system or your voice!

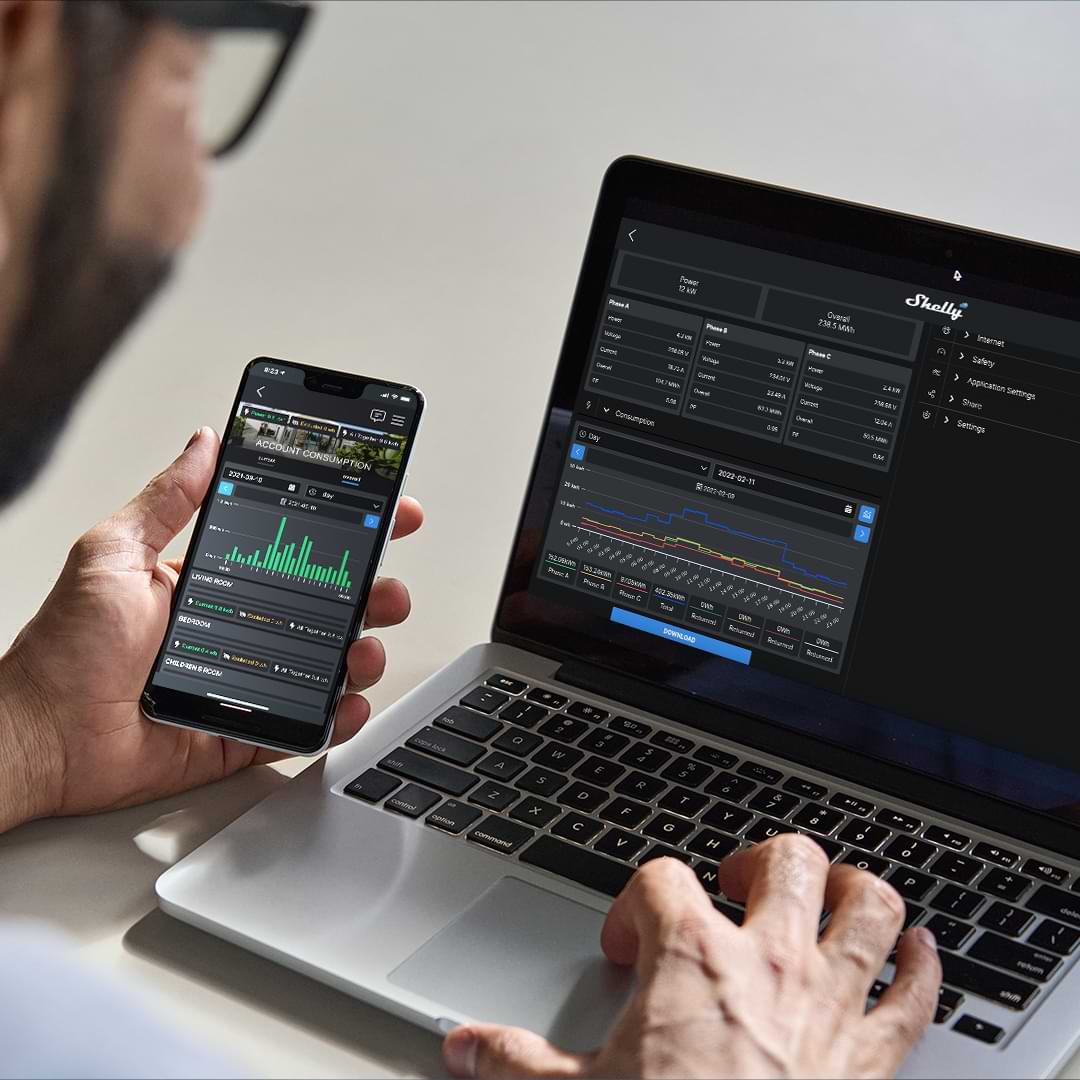

Track your energy consumption and save energy

You can now track and analyze the energy spent by your automated devices and control your consumption. Shelly Plus 2PM has two built-in accurate power meters that allow you to monitor the consumption of each channel separately. Freely stored consumption data helps you predict your expenses and allows any homeowner to reduce their electricity costs.

Combine Shelly Plus 2PM with other devices in your home automation

Shelly Plus 2PM, like all Shelly devices, can be bundled with other devices and triggered to perform actions under predefined conditions. Nowadays, many people prefer to work from their home office. Install the door/window 2 Shelly sensor on your home office door and set Shelly Plus 2PM to open the roller shutters as soon as you enter the room in the morning, letting in natural light. Once the workday is over, Shelly Plus 2PM closes the roller shutters and leaves them there until you're ready for the next business day.

Highly compatible

Use your favorite voice assistant to control Shelly Plus 2PM. Shelly Plus 2PM is compatible with most popular voice assistants.

No hub required

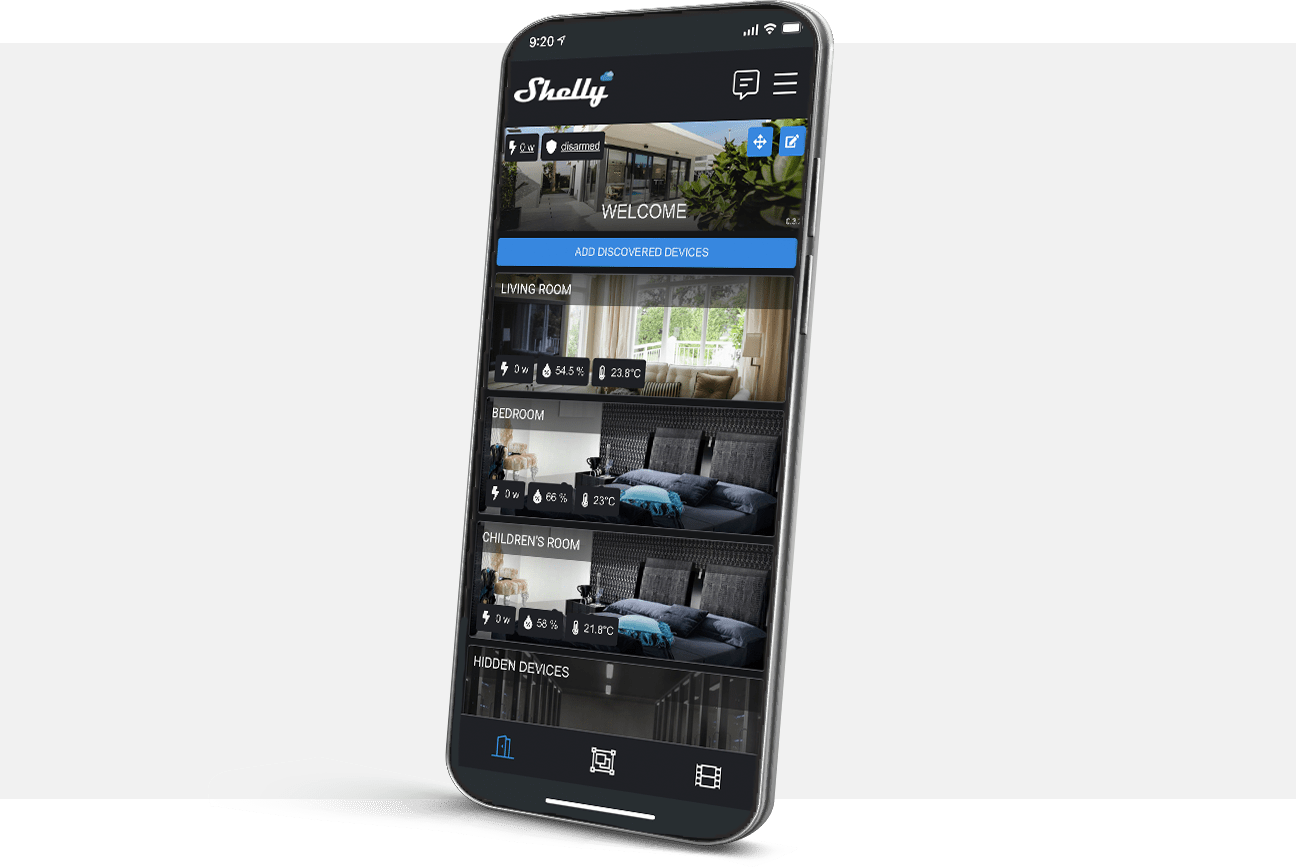

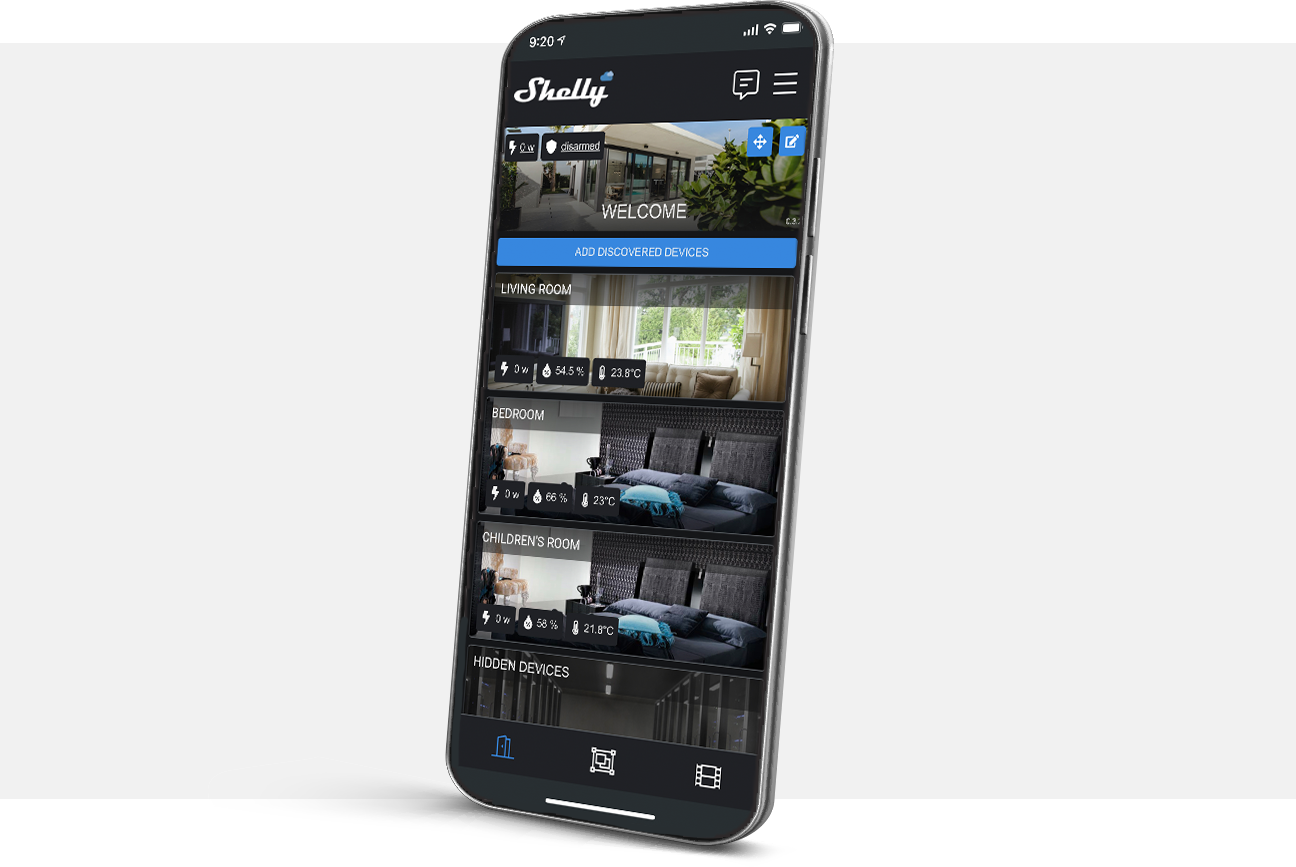

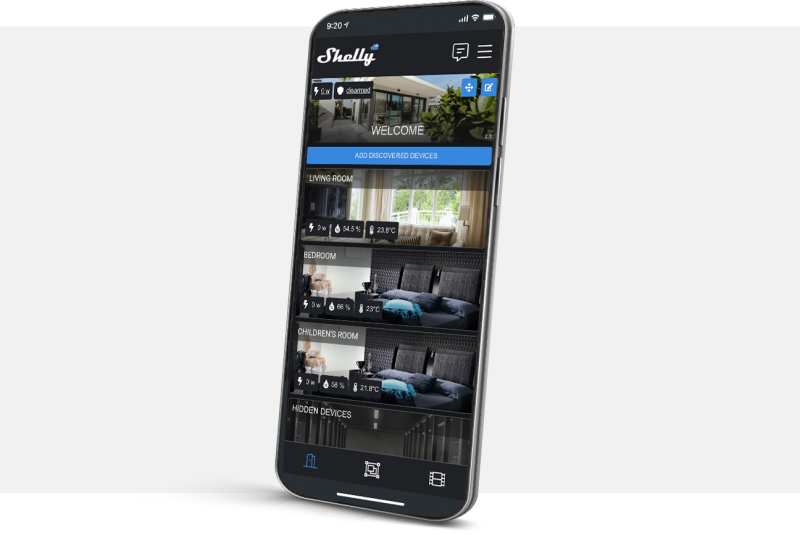

Shelly Plus 2PM can be controlled directly and without a hub via your smartphone with Shelly Cloud App. Manage and control your home or facility, set scenes, schedules and adjust settings wherever you are via cloud access, or only on the local network!

Duties

• Works in Wi-Fi - Connects to your Wi-Fi network. No HUB required!
• Bluetooth - Add devices quickly and easily via a Bluetooth connection, using the Shelly Cloud app
• 2 channels on the same phase
• Energy consumption tracking
• Control of openings - automates and adjusts the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, other bidirectional motors
• AC or low voltage power supply
• Extremely fast processor – ESP32
• Enhanced safety - Protection against overload, overvoltage and overheating
• Enhanced Security - Support for MQTT and WSS, support for TLS and custom certificates
• Improved API interface

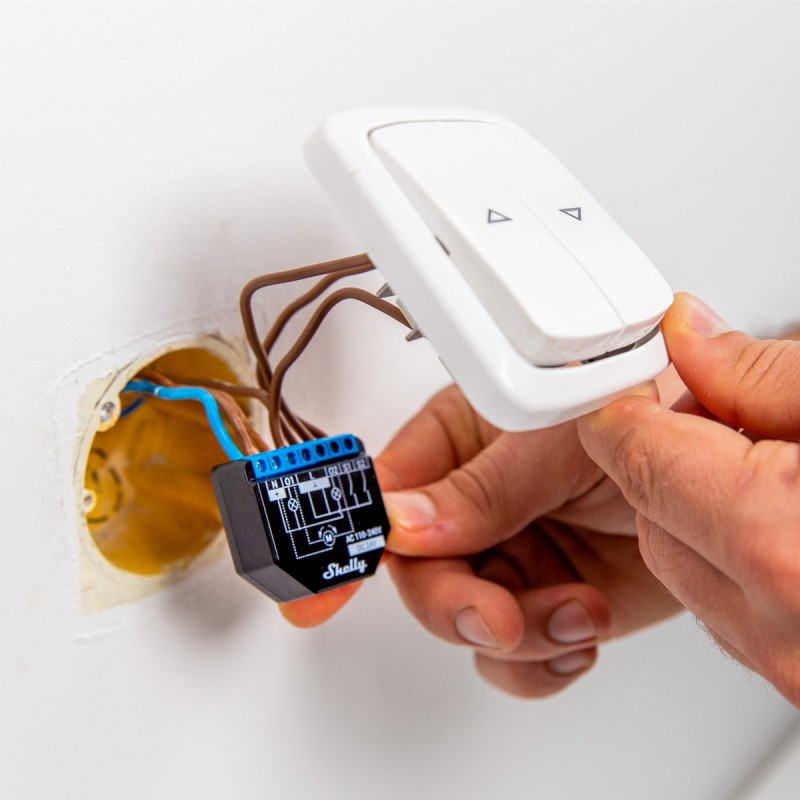

• Can be controlled by an external button/switch
• Compatible with Google Home and Amazon Echo

Technical characteristics

• Feeding:
• 110-240V ± 10% AC 50/60Hz
• 24V DC
• Maximum load per channel: 10A, 16A total (peak at 18A)
• Power Consumption: <1.4W
• Radio signal strength: 1mW
• Wireless Protocol / WiFi: 802.11 b/g/n (2.4 GHz)
• Frequency: 2400 - 2484 MHz
• Operating range (depending on local construction):
• up to 50 m outdoors
• up to 30 m indoors
• Operating Temperature: 0 - 40°C
• Dimensions (H x W x D): 42 x 38 x 17 mm
