Nodon - Zigbee on/off module 16a dry contact + consumption measurement
The NodOn Zigbee SIN-4-1-21 module allows you to measure your consumption while controlling: a garage door, boiler, radiator, electrical socket, VMC, dimmable LED driver, air conditioning.

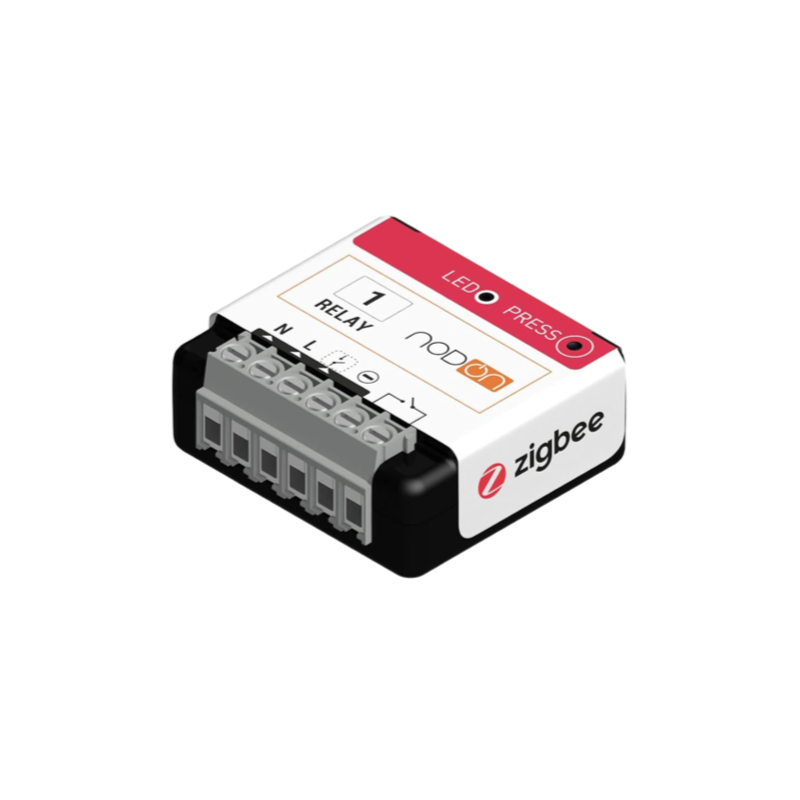

NodOn SIN-4-1-21, The dry contact module with consumption measurement
With the NodOn Zigbee connected module, you can remotely control from your phone:
- Your building entrance hall
- Your gate, garage door
- Your heating / air conditioning / VMC / boiler
- Your lighting
- Your electrical appliances
The NodOn Zigbee SIN-4-1-21 allows high-quality control:
The SIN-4-1-21 module manages both powered load switching under various voltages and pulsating dry contact (also known as impulse or potential-free) or maintained. It quickly installs on existing equipment to make it connected and remotely controllable - requires a compatible home automation hub - with a smartphone or automatically.
High switching capacity:
3000W, to control individual or collective devices (water heater, boiler...).
Consumption measurement:
Instantaneous power measurement function and cumulative energy, to save energy (please note that consumption measurement will not work for use of the SIN-4-1-21 module in dry contact).
Potential-free output:
The SIN-4-1-21 module has a dry contact output.
Ultra-compact profile:
Compact micromodule for mounting suitable for flush-mounting boxes.
Installation on an electrical enclosure:
Requires DIN rail enclosure.
Over-the-air (OTA) update:
The Zigbee SIN-4-1-21 module is quick to update thanks to the OTA function. Updates can be performed via a compatible home automation hub and the NodOn Connect application.
Compatible with all Zigbee ecosystems:
Zigbee 3.0, this module is 100% Zigbee interoperable and is compatible with different ecosystems:
- Home Assistant
- Jeedom
- Zigbee2MQTT
Functions
- Remote control of lighting/appliance
- Installs behind existing switches
- ON/OFF function
- Potential-free output
- Small, discreet, and aesthetic
- Easy to use and install
- Compatible with all Zigbee 3.0 gateways
- Over-the-air (OTA) update
Technical Specifications
- Power supply: 230V AC ~ 50Hz
- Switching capacities: 230V AC - 14A
- Consumption: < 1W
- Max Power: 3000W - Integrated zero crossing
- Radio protocol: Zigbee 3.0
- Compatibility:
- Jeedom
- Home Assistant
- Zigbee2mqtt
- Radio frequency band used: 2.4 GHz
- Maximum radio power: +10dBm
- Radio range: up to 40m indoors
- Operating temperature:
- The SIN supports an ambient temperature:
- Between -20 and 40°C in open air.
- Between -20 and 35°C in a flush-mounting box.
- Between -20 and 40°C in the NodOn DRB (Din Rail Box).
- Between -20 and 40°C in the NodOn BPS (Surface Mounting Box).
- Protection index: IP 20
- Device ID Type: Smart Plug (0x0051)
- Commercial warranty: 2 years
Reviews (2) - Review moderation
Ich kann das Produkt empfehlen. Man sollte allerdings, wenn man das potentialfreie Relais nutzt, das Schwesterprodukt SIN-4-1-20 wählen, da die Verbrauchsmessung nur funktionert, wenn man die Versorgungsspannung auch schaltet. Wenn man, wie in meinem Fall, das Relais potentialfrei nutzt, gibt es keine Verbrauchsmessung. Steht auch so in der Bedienungsanleitung, die ich mir leider vor der Bestellung nicht so genau angeschaut habe.
Nodon propose plusieurs produits similaires. Ce modèle, le SIN-4-1-21 est le même que le modèle SIN-4-1-20 avec l'avantage qu'il remonte l'information de la consommation électrique. Pour la différence de prix, c'est cool et séduisant. Mais fort malheureusement, la box Homey Pro ne le reconnait pas, alors qu'elle gère parfaitement le module SIN-4-1-20. C'est un peu le piège car ils sont quasi identiques, mais du coup, sur une Homey Pro, c'est sans utilité ! Une petite note sur le descriptif du shop serait peut-être utile...
-
