NICE DoubleDimmer-Control - Z-Wave+ dual-channel dimmer

Introduction

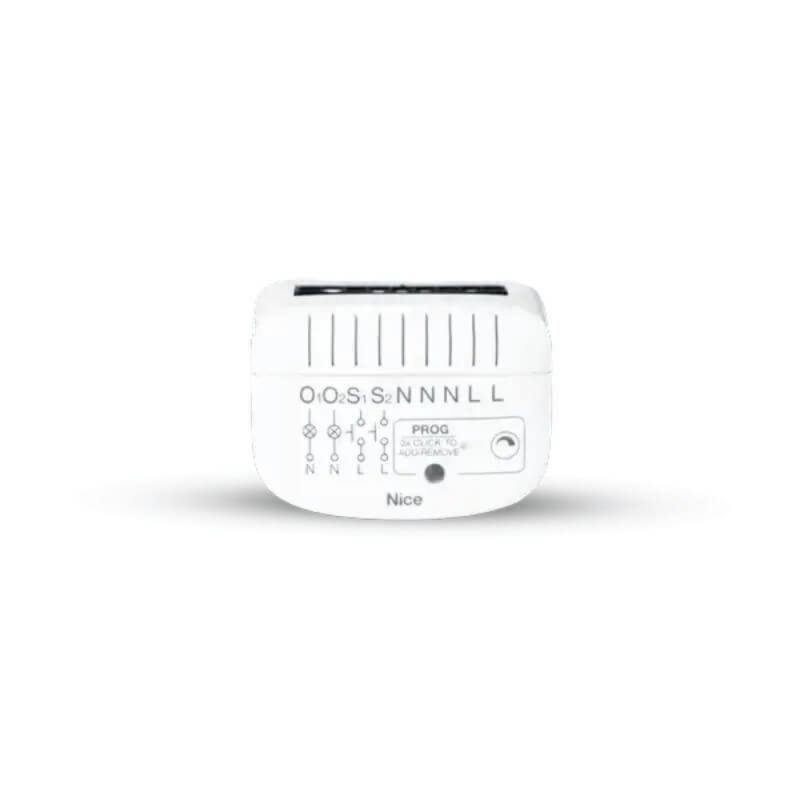

The Nice DoubleDimmer-Control is a compact dimmer module from the Z-Wave 800 Series that allows independent control of two lighting circuits. Optimized for LED loads (2×70W or 1×140W combined), it installs in standard wall boxes and functions as a dimmer or switch according to needs. Compatible with dimmable/non-dimmable LEDs (in the latter case, only in ON/OFF mode) 220-240V, 12-24V LED/halogens with dimmable transformers, and LED drivers. Energy consumption measurement, automatic switch type detection, manual calibration, and favorite position configure precise and efficient lighting control.

Key Functions

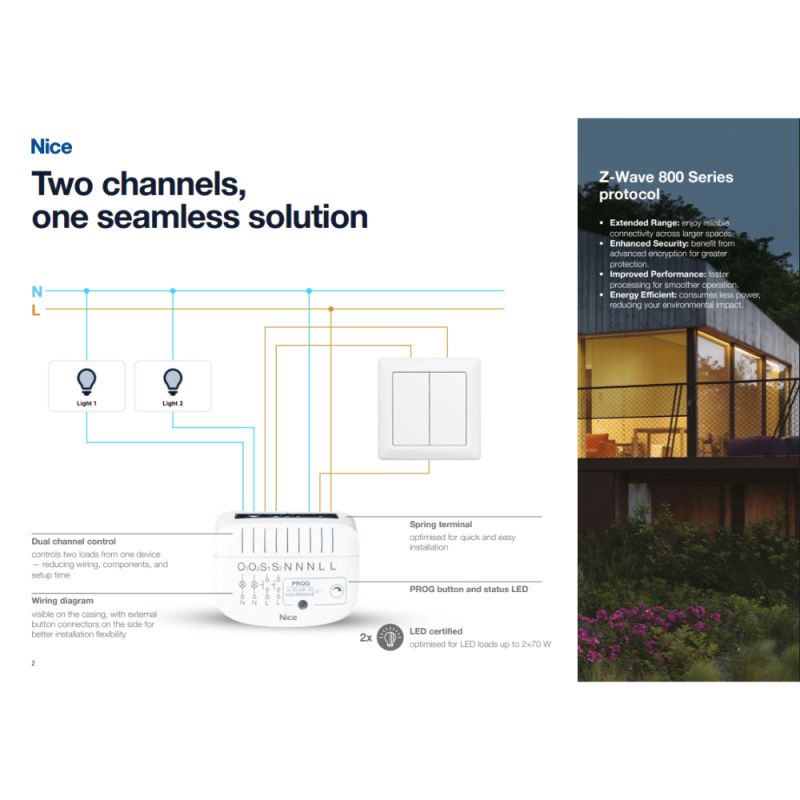

• Independent dual channel: Allows control of two separate lighting circuits or combining outputs for a higher load (2 × 70 W LED or 1 × 140 W combined).
• Dimmer or switch: Functions both as a dimmer and a switch, compatible with momentary or toggle switches.
• Z-Wave 800 with SmartStart and AES-128 security: Offers extended radio range, more reliable connection, and a higher level of security.

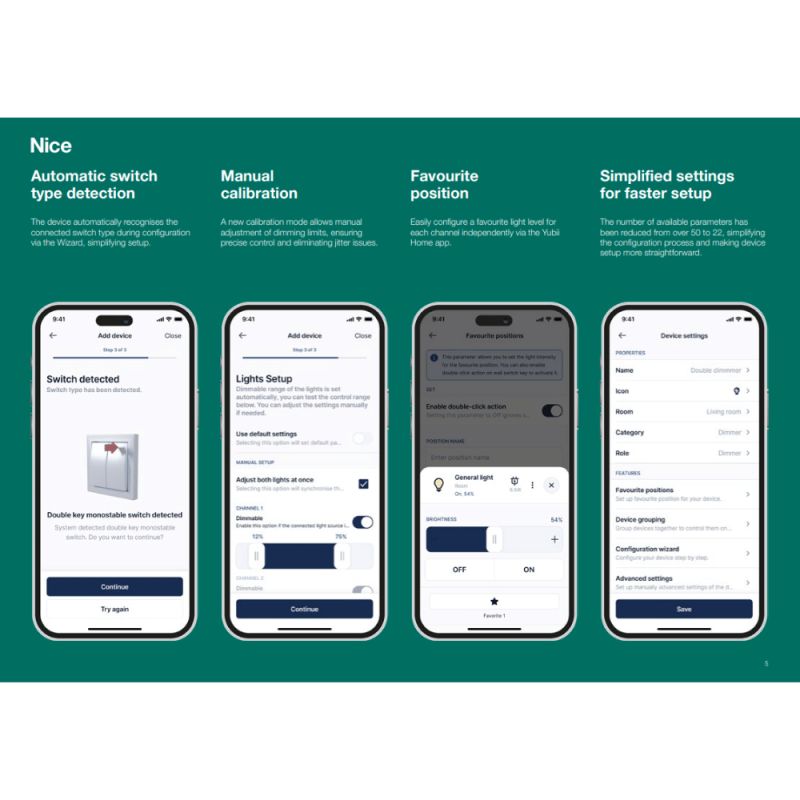

• Automatic calibration: Automatic detection of load type and calibration for precise brightness adjustment.
• Real-time measurement and monitoring: Measures voltage, current, power, and energy consumption, with data sent to the home automation controller.
• Integrated protection: Protection against overheating, overloading, and voltage drops for optimized usage safety.
• Simplified configuration: Quick installation with spring terminals, setting of preferred brightness level per channel, and memory of the last level.

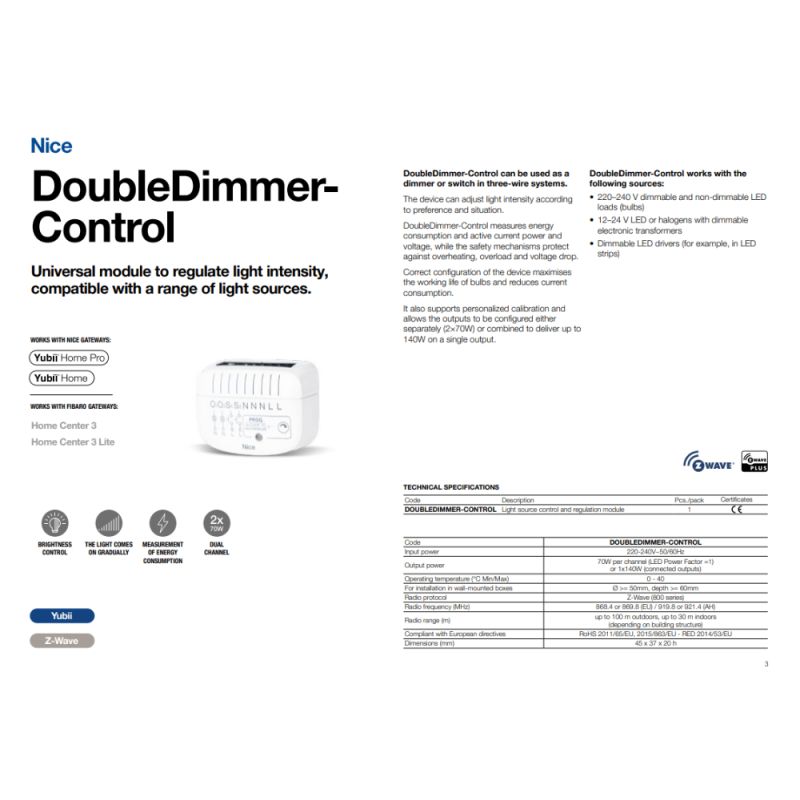

Technical Specifications

• Radio protocol: Z-Wave 800 series (Z-Wave Plus compatible)
• Power supply: 220–240 VAC, 50/60 Hz
• Outputs: 2 × 70 W LED or 1 × 140 W combined
• Operating temperature range: 0 °C to 35 °C
• Operating humidity: 10–95% non-condensing
• Dimensions: 45 × 37 × 20 mm
• Installation: Flush-mountable in boxes Ø ≥ 50 mm, depth ≥ 60 mm
• Compatibility: Compatible with home automation controllers such as Yubii Home, Home Center 3, and Home Center 3 Lite
