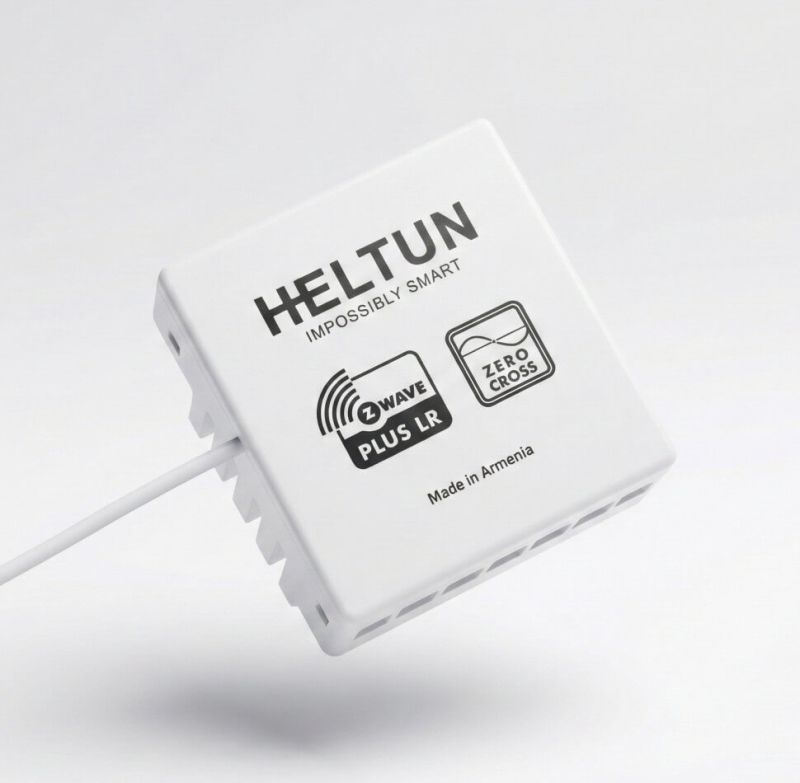

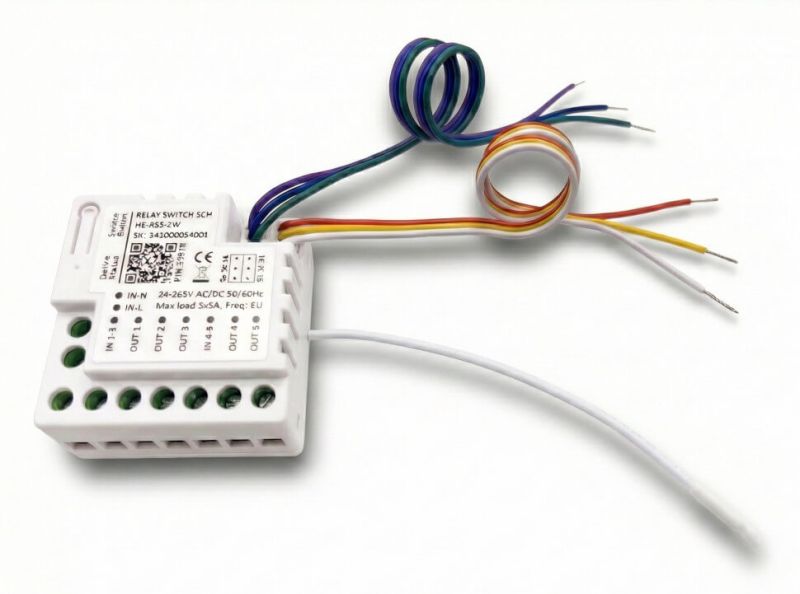

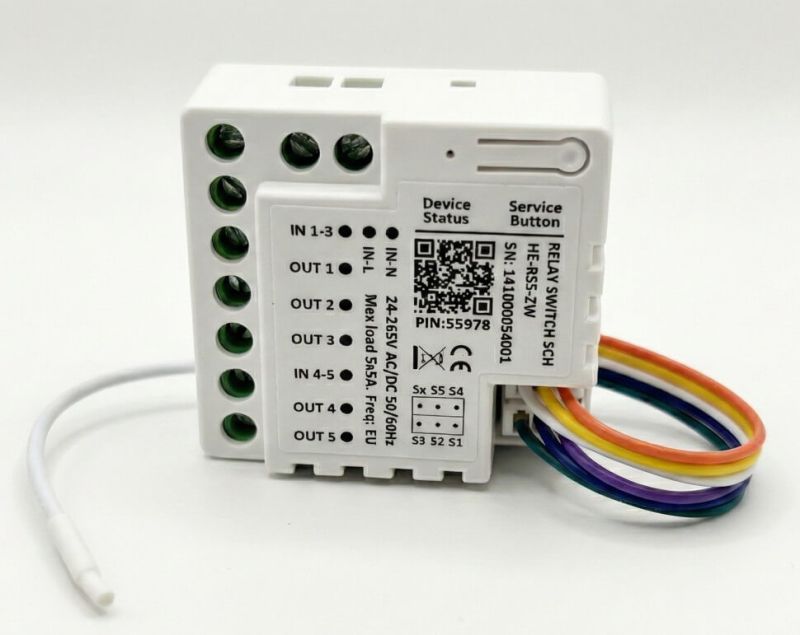

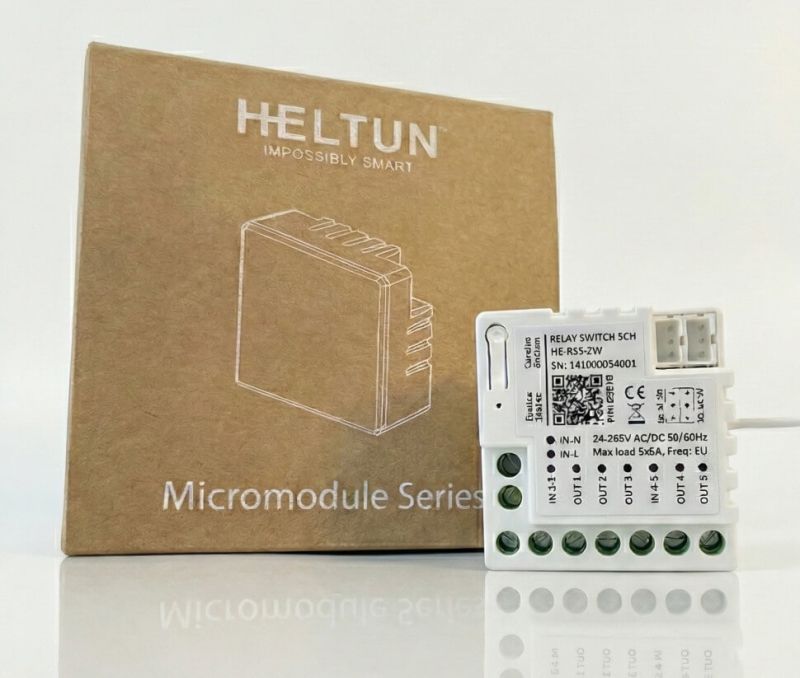

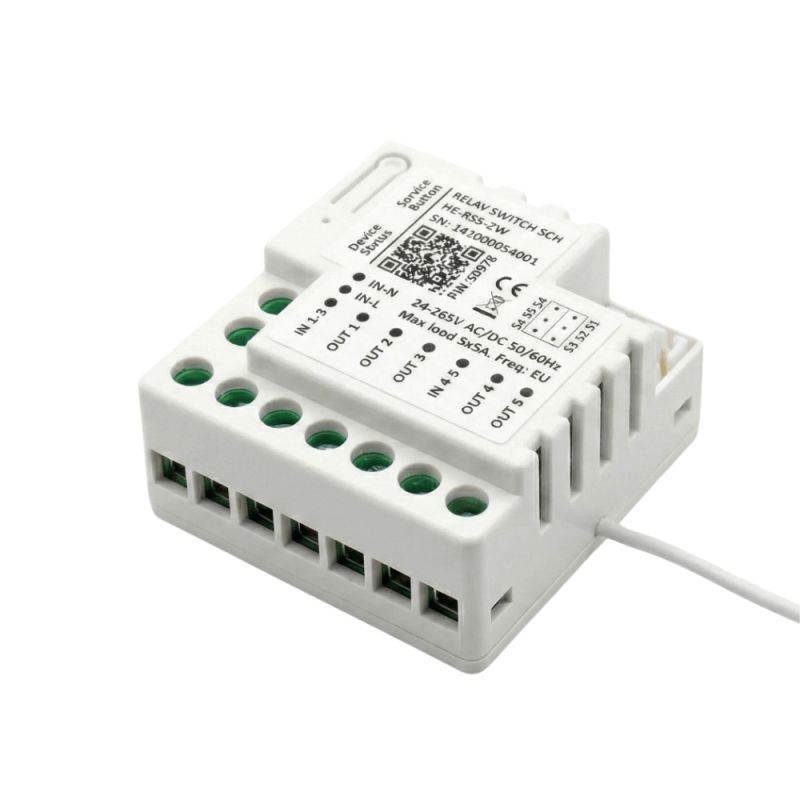

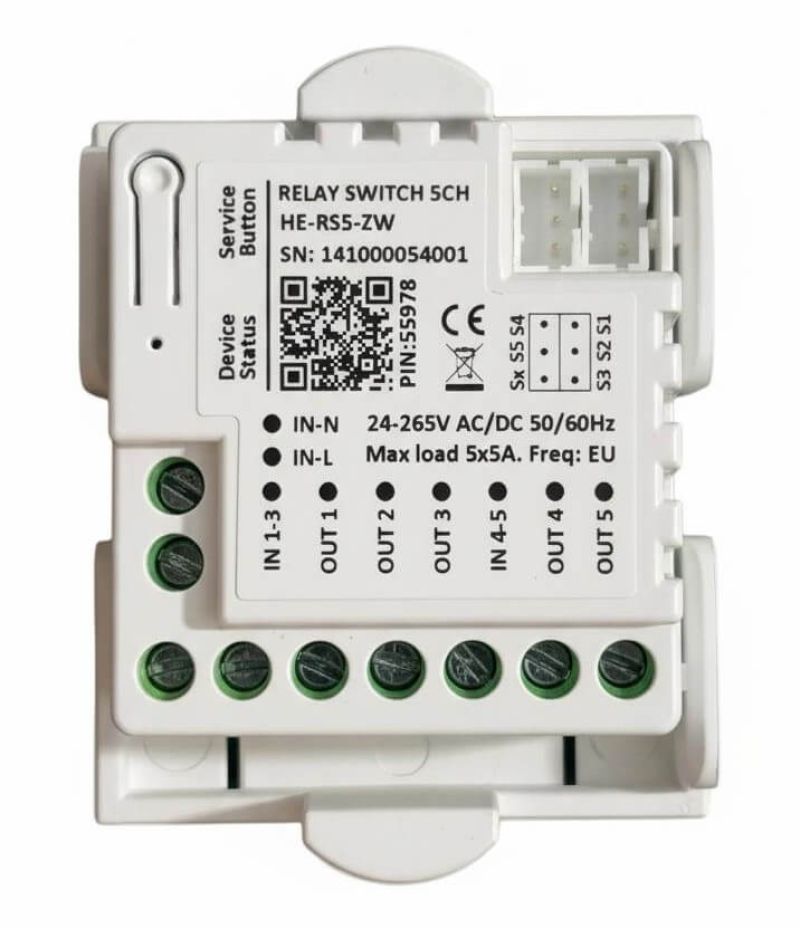

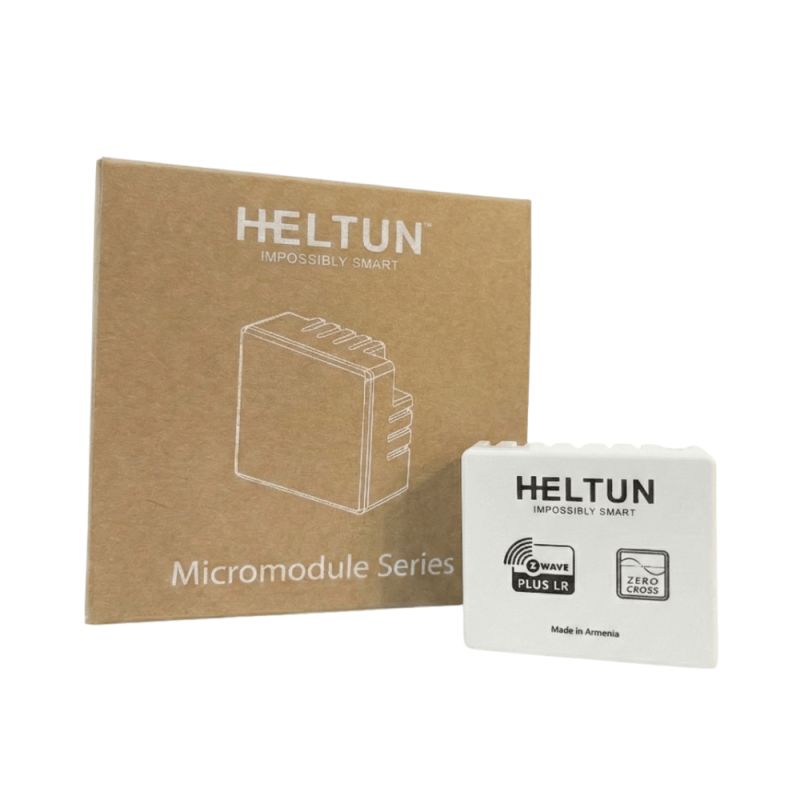

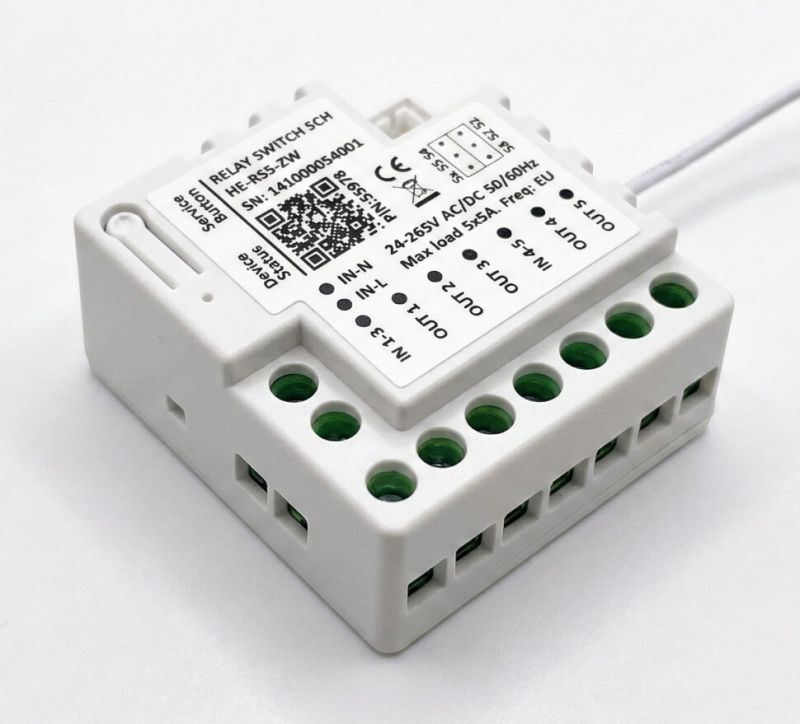

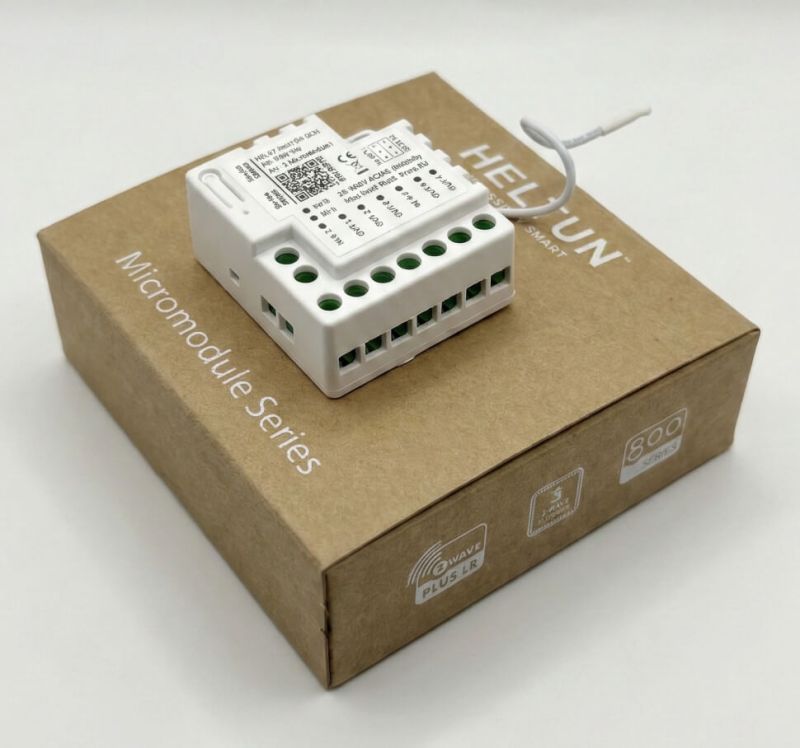

HELTUN HE-RS5-ZW - Z-Wave Relay Module 5 Channels 5x5A

General Overview

The HELTUN HE-RS5-ZW (Relay Switch Quinto) embodies the excellence of miniaturization in the field of professional Z-Wave home automation. This 5-channel micromodule revolutionizes the automation of existing electrical installations by discreetly fitting behind wall switches or in electrical panels. With its ultra-compact dimensions of just 19 × 40 × 38 mm, it easily fits into flush-mounted boxes and electrical panels.

The HE-RS5-ZW utilizes the Z-Wave 800 protocol with Long Range Ready for reliable and secure communication. The Z-Wave mesh architecture ensures bidirectional communication between all devices, with each module acting as a repeater to extend the network range.

The versatility of the HE-RS5-ZW is distinguished by its two independent power inputs allowing the management of circuits with different voltage sources or creating dry contacts to control industrial equipment. Its five relay outputs of 5A each control lighting, motors, valves, and locks with Zero-Cross technology for enhanced reliability.

Key Features

• Ultra-compact architecture for complex installations: With its dimensions of 19 × 40 × 38 mm and a lightweight of 110g, the HE-RS5-ZW installs easily in flush-mounted boxes and electrical panels. This extreme miniaturization allows the module to be installed even in the most confined spaces. Flexible installation behind outlets/switches or DIN rail mounting with the HELTUN Micromodule Mounting Adaptor.
• Professional power flexibility: The module accepts an exceptionally wide power range of 24-265V AC or 24-48V DC, allowing universal installation in most residential and commercial settings. The two independent power inputs allow the management of circuits with different voltage sources on the same module or create dry contact outputs to control equipment not requiring power switching, such as industrial HVAC systems or automatic gates.
• Zero-Cross Technology: The module uses Zero-Cross technology which synchronizes relay switching at the zero crossing of the sine wave. This approach reduces electrical arcs, electromagnetic interference, and extends the lifespan of the module and connected loads.
• Motor and valve control: The module can control motors, valves, and locks thanks to its 5 relay outputs of 5A each. The 7 configurable modes allow the operation to be adapted to different types of applications (lighting, motors, valves).
• Six ultra-configurable pilot inputs: The module has 6 pilot inputs that can control the relay outputs and trigger Z-Wave scenes simultaneously. 7 configurable modes per channel: momentary, toggle, invert, timers, ON/OFF only. This flexibility allows the module to adapt to any type of existing switch (push-button, toggle, inverter) without modifying wall wiring. Each input can also trigger Z-Wave scenes to create complex automations.
• S2 Security and SmartStart: Implements the Z-Wave S2 security protocol to protect communications. Supports SmartStart for simplified and secure inclusion in the Z-Wave network.

Detailed Technical Specifications

Electrical Specifications

• Power Supply: 24-265V AC or 24-48V DC
• Number of Channels: 5 independent relays
• Load per Channel: 5A maximum
• Contact Type: Dry contact
• Switching Technology: Zero-cross relay switching
• Number of Power Inputs: 2 independent
• Number of Pilot Inputs: 6

Z-Wave Specifications

• Protocol: Z-Wave 800
• Long Range: Long Range ready
• SmartStart: Yes, automatic inclusion
• Security: S2 Security
• Europe Frequency: 868 MHz
• Repeater Function: Yes (automatically extends mesh network)

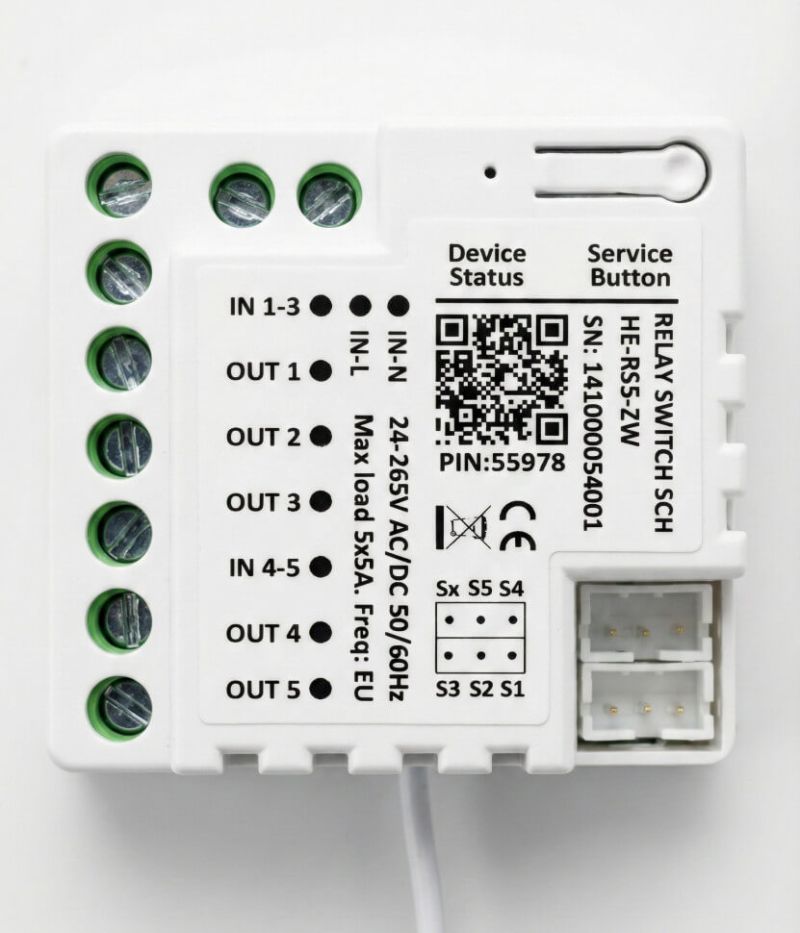

Configuration and Inputs/Outputs

• Relay Outputs: 5 (dry contact)
• Configurable Pilot Inputs: 6
• Independent Power Inputs: 2
• Operating Modes per Channel: 7 (momentary, toggle, invert, timers, ON/OFF only)
• Motor Control: Supports motors and valves
• Scene Triggering: Pilot inputs can trigger Z-Wave scenes

Advanced Features

• Security: S2 Security
• SmartStart: Automatic inclusion
• Zero-Cross Technology: Zero-cross switching
• Control: Lighting, motors, valves, locks
• Applications: Dry contact and smart wiring

Physical Characteristics

• Dimensions: 19 × 40 × 38 mm (ultra-compact)
• Weight: 110 grams
• Mounting: Flush-mounted boxes and electrical panels
• DIN Rail Mounting: Via HELTUN Micromodule Mounting Adaptor
• Installation: Behind outlets/switches or on DIN rail

Standards and Certifications

• Brand: Heltun
• Z-Wave Frequency: Europe (868 MHz)
• Customs Code (HS Code): 8536508090
• CE Compliance: Radio equipment
• RoHS Compliance: Restriction of hazardous substances
