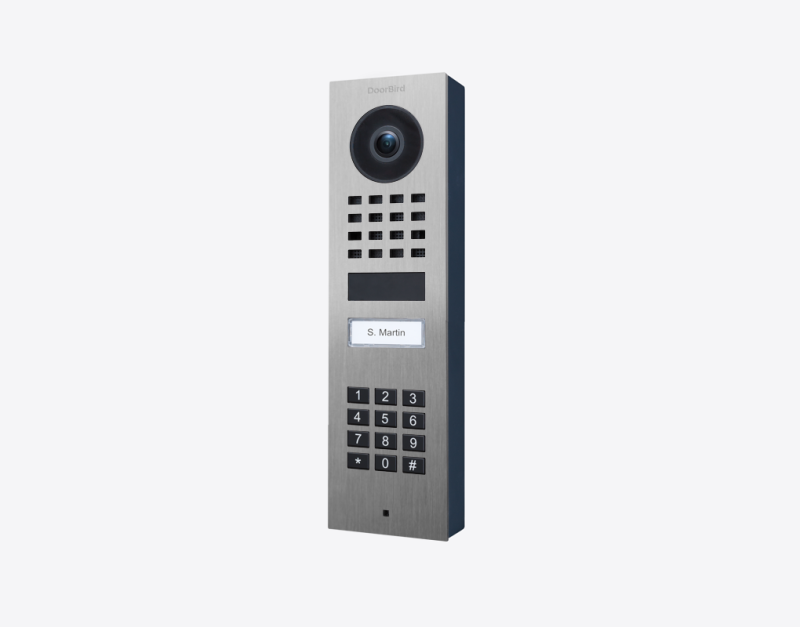

Doorbird - D1101KV IP video intercom (surface-mounted)

Introduction

The DoorBird D1101KV is a high-end, surface-mounted IP video intercom that combines German elegance with cutting-edge technology. Featuring a programmable 12-button keypad, a 1080p HDTV camera with 180° ultra-wide-angle lens and a 4D radar motion sensor, this connected doorphone transforms your entrance into an ultra-secure, intelligent reception system. Its integrated WiFi and PoE connectivity, solid 3 mm stainless steel design and compatibility with over 500 customizable PIN codes make it the ideal solution for private homes, offices and medical practices. German manufacture with IP65/IK08 certification for maximum resistance to weather and vandalism.

Key features

Premium design Made in Germany

• Front panel in 3 mm thick solid brushed stainless steel
• Made in Germany by Bird Home Automation GmbH in Berlin
• Robust construction: IP65 (waterproof) and IK08 (shockproof) ratings
• Available finishes: brushed V2A stainless steel, saltwater-resistant V4A, PVD coatings (bronze, titanium, gold, chrome), over 45 RAL colors
• Timeless, award-winning design: German Design Award Special 2023, Plus X Award 2022

High-performance HDTV camera

• Sony HDTV 1080p Full HD dynamic image sensor (adaptive VGA to HDTV resolution)
• Ultra-wide angle premium hemispherical lens: 180° diagonal, 150° horizontal, 82° vertical
• Digitally corrected distorted image for natural vision without fisheye effect
• Automatic night vision with OSRAM infrared LEDs (850 nm) and IR-Cut filter
• Ambient light sensor for automatic day/night switching
• Real-time video streaming via Smart Transmission Mode (STM) optimized for 3G/4G/5G mobile networks

12-key intelligent keyboard module

• Backlit keypad with 12 keys configurable via mobile app
• Manages over 500 different individual PIN codes
• Personalized access rights via PIN code
• Programming of specific events: relay activation, HTTP(S) calls, notifications
• Flexible scheduling: limited access to certain times or days
• Access history with timestamp and user identification
• Ideal for multiple access (family, employees, delivery personnel, contractors)

Illuminated call button

• Backlit bell button for night-time visibility
• Plastic nameplate included (engraved metal plates available separately)
• Instant video call activation on smartphones, tablets or SIP phones

Advanced 4D radar motion sensor

• 24 GHz RFE radar technology with intelligent algorithms
• Range adjustable from 1 to 6 metres in 1-metre increments via application
• Detection angle: 80° horizontal, 50° vertical
• Configurable directional detection: person approaching, moving away, or both
• Trigger customized actions: relay activation, push notifications, SIP audio/video calls, HTTP(S) calls
• Time schedule: activate the sensor only on certain days or time slots
• Example: Automatically switch on outdoor lighting between 9 p.m. and 6 a.m. when motion is detected
• Can be disabled if not required

Full WiFi and Ethernet connectivity

• Integrated IEEE 802.11 b/g/n 2.4 GHz WiFi for installation without network cabling
• 10/100 Base-T Ethernet port with Power over Ethernet (PoE 802.3af Mode-A)
• Flexible power supply: PoE only or external 15V DC power supply (max. 15W, adapter supplied)
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF
• Smart Transmission Mode (STM): optimized real-time audio/video streaming for mobile devices via WLAN, 3G, 4G, 5G

Two-way audio communication

• High-quality built-in speaker and microphone
• Two-way full-duplex audio streaming (simultaneous conversation)
• Echo cancellation (AEC) and ambient noise reduction (ANR)
• Crystal-clear voice quality even in noisy environments
• SIP calls compatible with all IPBXs and SIP landlines

Integrated access control

• 1 self-holding bistable relay, freely configurable
• Maximum load: 1-24V DC/AC, 1 Ampere
• Remote control of electric locks, strikes, gates, garage doors
• Flexible configuration: temporary (adjustable duration) or permanent activation via application
• Input for external release button
• Geofencing: automatic door/gate opening on returning home (via GPS smartphone)
• Door automation: programmed automatic opening (e.g. Monday to Friday, 9 a.m. to 4 p.m. for offices)

Bluetooth Low Energy (BLE)

• Compatible with DoorBird Keyfob A8007 Bluetooth remote control
• Hands-free opening as you approach the door
• Can be connected to compatible Bluetooth connected locks
• Support for external Bluetooth sensors

Mobile application and free history

• Free DoorBird application for iOS (iPhone/iPad) and Android (smartphones/tablets)
• Instant push notifications every time a bell rings or motion is detected
• Live HD video chat with visitors from anywhere
• Free visitor history: unlimited image storage (videos available at extra cost)
• Remote control of locks and gates
• Complete configuration of all parameters
• Quick installation by QR code scan
• Multi-user management with rights levels

Home automation and Smart Home integrations

• Open local API for integration into third-party systems
• Compatible with over 200 platforms: KNX, Loxone, Control4, ELAN, Home Assistant, Homey, Fibaro, Bang & Olufsen, URC, RTI
• NVR compatibility: Synology, QNAP and other network video recorders
• Phone compatibility: AVM FRITZ!Fon and other SIP phones
• Site dedicated to integrations : www.doorbird.com/connect
• Full API documentation : www.doorbird.com/api

Technical specifications

General

• Front panel : Stainless steel 3 mm (0.12 in) - See table of materials for other finishes
• Rear-mounting housing: High-strength polycarbonate
• Type of installation: Surface-mounted (Aufputz) - Flush-mounted version available separately
• Call button: Backlit for night visibility
• Nameplate: Plastic (engraved metal plates available separately on request) www.doorbird.com/buy)
• Keyboard module: 12 backlit keys, configurable by application
• Weight: 920 grams
• Dimensions: 241×65×29.5 mm (H×W×D)

Power supply

• Voltage: 15V DC (max. 15W) or Power over Ethernet (PoE 802.3af Mode-A)
• AC adapter included: 110-240V AC to 15V DC with up to 4 international adapters
• Maximum power consumption: 15W

Connections and inputs/outputs

• LAN/PoE port: RJ45 (T+, T-, R+, R-) - 10/100 Base-T with PoE 802.3af Mode-A
• Self-holding bistable relay n°1: 1-24V DC/AC, 1 Ampere (for electric strike, gate)
• External input: External release button
• Power supply input: 15V DC (+, -), max. 15W

Protection and certifications

• Protection rating: IP65 (total rain and dust tightness)
• Shock resistance: IK08 (vandal-proof)
• Certifications: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
• Made in Germany

Conditions of use

• Operating temperature : -25°C to +55°C (-13°F to 131°F)
• Relative humidity: 10% to 85% (non-condensing)
• Use: Outdoor and indoor

Video camera

• Resolution: HDTV 1080p dynamic (adaptive VGA to HDTV resolution depending on bandwidth)
• Sensor: High-sensitivity Sony HDTV
• Lens: premium hemispherical ultra-wide angle 180° (D), 150° (H), 82° (V), distorted then digitally corrected
• Infrared-compatible lens for optimum night vision
• Night vision : OSRAM 850 nm infrared LEDs
• Ambient light sensor with automatic IR-Cut filter
• Streaming: A simultaneous video stream for event-based recording

Audio

• Components : High-quality speaker and microphone
• Streaming: Bidirectional, full-duplex (simultaneous conversation)
• Echo cancellation (AEC) and ambient noise reduction (ANR)
• Optimum vocal clarity even in noisy environments

Network and connectivity

• Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
• WiFi: IEEE 802.11 b/g/n 2.4 GHz
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], sIP INFO [RFC-2976]), STM (Smart Transmission Mode)

4D motion sensor

• Type : Active with 24 GHz radar technology (RFE radio frequency)
• Detection angle: 80° horizontal, 50° vertical
• Adjustable range: 1 to 6 metres, configurable in 1-metre steps depending on environment
• Configuration via application :
  • Range setting (1-6m)
  • Direction of travel (approach, distance, both)
  • Individual events (relay activation, push notification, SIP audio/video calls, HTTP(S) calls)
  • Customized scheduling
• Can be disabled if not desired

Integrated wireless modules

• WiFi: 2.4 GHz IEEE 802.11 b/g/n
• Bluetooth: Bluetooth Low Energy (BLE) compatible with Bluetooth remote control Keyfob DoorBird A8007
• Radar sensor: 24 GHz (can be disabled)

Keyboard module

• Keys: 12 backlit keys
• Complete configuration via mobile app
• PIN codes: Over 500 individual codes to manage
• Customized events per code: relay activation, HTTP(S) calls, notifications
• Individual time planning by PIN code
• Access history with user identification

System requirements

• Mobile devices: iOS latest version on iPhone/iPad, Android latest version on smartphones/tablets
• Internet: fixed broadband connection (DSL, cable, fiber optic), no Socks or proxy servers
• Local network: Ethernet network with DHCP enabled

Recommended mounting height

• Camera lens: Minimum 145 cm (57 in) from the ground
• Check optimum height before final installation for ideal framing

Scope of delivery

• 1× Main electrical unit
• 1× Stainless steel front panel
• 1× Surface-mounting box
• 1× 110-240V AC to 15V DC plug-in power adapter with up to 4 international adapters
• 1× RJ45 adapter
• 1× Screwdriver
• 1× Quick start guide with digital passport (QR code)
• 1× Installation instructions
• 1× Small parts (screws, plugs, fixing accessories)
