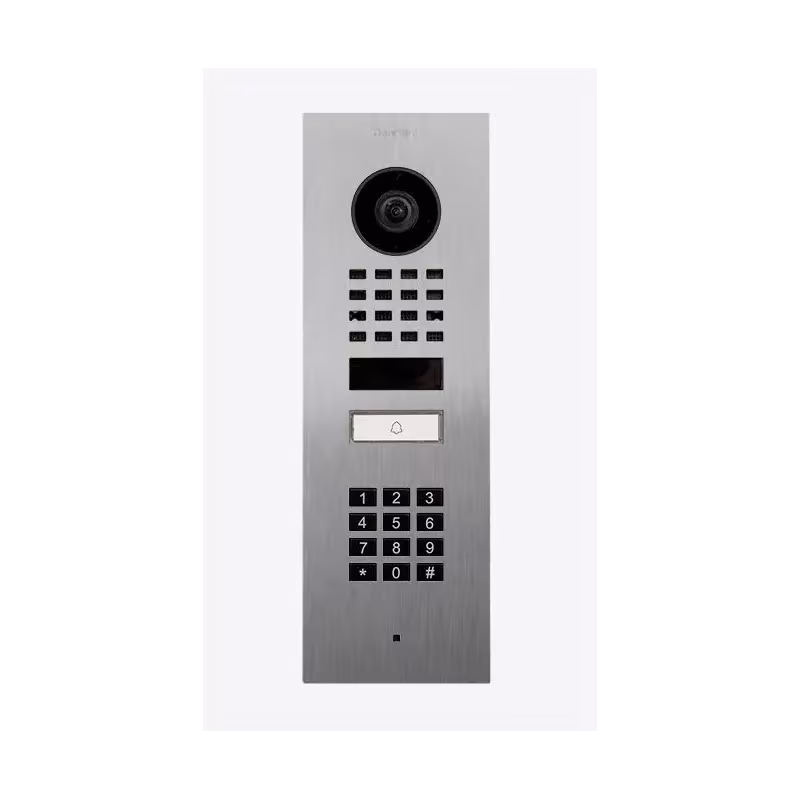

Doorbird - D1101KV IP Video Intercom (Flush Mount)

Introduction

The DoorBird D1101KV in the flush-mounted version is a high-end IP video intercom that combines minimalist design with cutting-edge technology. Equipped with a programmable 12-key keypad, an HDTV 1080p camera with a 180° ultra-wide-angle lens, and a 4D motion sensor radar, this smart intercom integrates perfectly into your facade for an elegant and discreet finish. Its integrated WiFi and PoE connectivity, flush design in 3 mm solid stainless steel, and compatibility with over 500 customizable PIN codes make it the ideal solution for private homes, offices, and medical practices requiring a professional flush-mounted installation. German-made with IP65/IK08 certification for maximum resistance to weather and vandalism.

Main Features

Professional Flush-Mounted Installation

• Flush-mounted installation for a neat finish and discreet integration
• Rear mounting box in stainless steel included
• Front panel in solid brushed stainless steel, 3 mm thick
• Installation in walls, pillars, or any surface with sufficient depth
• Wall cutting required (dimensions provided in technical documentation)
• Surface-mounted version available separately if necessary

Premium Design Made in Germany

• German-made by Bird Home Automation GmbH in Berlin
• Robust construction: IP65 rating (total waterproof) and IK08 (impact resistance)
• Available finishes: brushed V2A stainless steel, saltwater-resistant V4A, PVD coatings (bronze, titanium, gold, chrome), over 45 RAL colors
• Timeless award-winning design: German Design Award Special 2023, Plus X Award 2022
• Elegant architectural integration into modern facades

High-Performance HDTV Camera

• Sony HDTV 1080p Full HD dynamic image sensor (adaptive resolution VGA to HDTV)
• Premium ultra-wide-angle hemispherical lens: 180° diagonal, 150° horizontal, 82° vertical
• Digitally corrected distorted image for natural vision without fisheye effect
• Automatic night vision with OSRAM infrared LEDs (850 nm) and IR-Cut filter
• Ambient light sensor for automatic day/night switching
• Real-time video streaming via Smart Transmission Mode (STM) optimized for mobile networks 3G/4G/5G

Smart 12-Key Keypad Module

• Backlit keypad with 12 keys configurable via mobile app
• Management of more than 500 different individual PIN codes
• Assignment of personalized access rights by PIN code
• Programming of specific events: relay activation, HTTP(S) calls, notifications
• Flexible scheduling: access limited to certain time slots or days
• Access history with timestamp and user identification
• Ideal for multiple access (family, employees, delivery drivers, service providers)

Illuminated Call Button

• Backlit doorbell button for night visibility
• Plastic nameplate included (engraved metal plates available separately)
• Instant activation of video call on smartphones, tablets, or SIP phones

Advanced 4D Radar Motion Sensor

• 24 GHz radio frequency (RFE) radar technology with smart algorithms
• Adjustable range from 1 to 6 meters in 1-meter increments via application
• Detection angle: 80° horizontal, 50° vertical
• Configurable directional detection: approaching, departing, or both
• Triggering of personalized actions: relay activation, push notifications, audio/video SIP calls, HTTP(S) calls
• Scheduling: activate the sensor only on certain days or time slots
• Example: automatically turn on outdoor lighting between 9 PM and 6 AM upon motion detection
• Can be disabled if not desired

Complete WiFi and Ethernet Connectivity

• Built-in WiFi IEEE 802.11 b/g/n 2.4 GHz for installation without network cabling
• Ethernet port 10/100 Base-T with Power over Ethernet (PoE 802.3af Mode-A)
• Flexible power supply: PoE only or external power supply 15V DC (max. 15W, adapter provided)
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF
• Smart Transmission Mode (STM): optimized real-time audio/video streaming for mobile devices via WLAN, 3G, 4G, 5G

Two-Way Audio Communication

• High-quality speaker and microphone integrated
• Full-duplex two-way audio streaming (simultaneous conversation)
• Echo cancellation (AEC) and ambient noise reduction (ANR)
• Crystal-clear voice quality even in noisy environments
• SIP calls compatible with all IPBX and SIP landline phones

Integrated Access Control

• 1 freely configurable bistable self-holding relay
• Maximum load: 1-24V DC/AC, 1 Ampere
• Remote control of electric locks, strikes, gates, garage doors
• Flexible configuration: temporary activation (adjustable duration) or permanent via application
• Input for external push button unlocking
• Geofencing: automatic door/gate opening upon return home (via smartphone GPS)
• Door automation: programmed automatic opening (e.g., Monday to Friday from 9 AM to 4 PM for offices)

Bluetooth Low Energy (BLE)

• Compatibility with Bluetooth remote control DoorBird Keyfob A8007
• Hands-free opening when approaching the door
• Possible connection with compatible Bluetooth smart locks
• Support for external Bluetooth sensors

Mobile App and Free History

• Free DoorBird app for iOS (iPhone/iPad) and Android (smartphones/tablets)
• Instant push notifications for every ring or motion detection
• Live HD video conversation with visitors from anywhere
• Free visitor history: unlimited image storage (optional paid video)
• Remote control of locks and gates
• Complete configuration of all settings
• Quick installation by scanning QR code
• Multi-user management with rights levels

Home Automation and Smart Home Integrations

• Open local API for integration into third-party systems
• Compatible with over 200 platforms: KNX, Loxone, Control4, ELAN, Crestron, Home Assistant, Homey, Fibaro, Bang & Olufsen, URC, RTI, Nice
• NVR compatibility: Synology, QNAP, and other network video recorders
• Phone compatibility: AVM FRITZ!Fon and other SIP phones
• Dedicated integrations site: www.doorbird.com/connect
• Complete API documentation: www.doorbird.com/api

Technical Specifications

General

• Front panel: 3 mm (0.12 inch) stainless steel - See material chart for other finishes
• Rear mounting box: Stainless steel
• Installation type: Flush-mounted (Surface-mounted box sold separately)
• Call button: Backlit for night visibility
• Nameplate: Plastic (engraved metal plates available separately on www.doorbird.com/buy)
• Keypad module: 12 backlit keys, configurable via application
• Weight: 850 grams
• Dimensions: 263×85×26.7 mm (H×W×D)

Power Supply

• Voltage: 15V DC (max. 15W) or Power over Ethernet (PoE 802.3af Mode-A)
• Power adapter included: 100-240V AC to 15V DC with up to 4 international adapters
• Maximum consumption: 15W

Connections and Inputs/Outputs

• LAN/PoE port: RJ45 (T+, T-, R+, R-) - 10/100 Base-T with PoE 802.3af Mode-A
• Bistable self-holding relay: 1-24V DC/AC, 1 Ampere (potential-free) for electric strike, gate
• External input: External push button for unlocking
• Power input: 15V DC (+, -), max. 15W

Protection and Certifications

• Protection rating: IP65 (total rain and dust proof)
• Impact resistance: IK08 (vandal-resistant)
• Certifications: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
• Made in Germany

Operating Conditions

• Operating temperature: -25°C to +55°C (-13°F to 131°F)
• Relative humidity: 10% to 85% (non-condensing)
• Usage: Outdoor and indoor

Video Camera

• Resolution: HDTV 1080p dynamic (adaptive resolution VGA to HDTV depending on bandwidth)
• Sensor: High-sensitivity Sony HDTV
• Lens: Premium ultra-wide-angle hemispherical 180° (D), 150° (H), 82° (V), distorted then digitally corrected
• Infrared-compatible lens for optimal night vision
• Night vision: OSRAM infrared LEDs 850 nm
• Ambient light sensor with automatic IR-Cut filter
• Streaming: One simultaneous video stream for event-based recording

Audio

• Components: High-quality speaker and microphone
• Streaming: Bidirectional, full-duplex (simultaneous conversation)
• Echo cancellation (AEC) and ambient noise reduction (ANR)
• Optimal voice clarity even in noisy environments

Network and Connectivity

• Ethernet: PoE 802.3af Mode-A, 10/100 Base-T
• WiFi: IEEE 802.11 b/g/n 2.4 GHz
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM (Smart Transmission Mode)

4D Motion Sensor

• Type: Active with 24 GHz radar technology (radio frequency RFE)
• Detection angle: 80° horizontal, 50° vertical
• Adjustable range: 1 to 6 meters, configurable in 1-meter steps according to environment
• Configuration via application:
  • Range setting (1-6m)
  • Walking direction (approaching, departing, both)
  • Individual events (relay activation, push notification, audio/video SIP call, HTTP(S) calls)
  • Custom scheduling
• Can be disabled if not desired

Integrated Wireless Modules

• WiFi: 2.4 GHz IEEE 802.11 b/g/n
• Bluetooth: Bluetooth Low Energy (BLE) compatible with Bluetooth remote control Keyfob DoorBird A8007
• Radar sensor: 24 GHz (can be disabled)

Keypad Module

• Keys: 12 backlit keys
• Complete configuration via mobile application
• PIN codes: More than 500 manageable individual codes
• Custom events by code: relay activation, HTTP(S) calls, notifications
• Individual scheduling by PIN code
• Access history with user identification

System Requirements

• Mobile devices: Latest iOS on iPhone/iPad, latest Android on smartphones/tablets
• Internet: Fixed high-speed connection (DSL, cable, fiber optic), no Socks server or proxy
• Local network: Ethernet network with DHCP enabled

Recommended Mounting Height

• Camera lens: Minimum 145 cm (57 inches) from the ground
• Check optimal height before final installation for ideal framing

Delivery Contents

• 1× Main electrical unit
• 1× Stainless steel front panel
• 1× Rear mounting box (flush-mounted) in stainless steel
• 1× Power adapter with up to 4 international adapters (100-240V AC to 15V DC)
• 1× RJ45 adapter
• 1× Screwdriver
• 1× Quick start guide with digital passport (QR code)
• 1× Installation manual
• 1× Small parts (screws, dowels, mounting accessories)
