Akuvox S535 - IP Video Doorphone | Facial Recognition | 5" Touch Screen | 6 Access Methods | IP66/IK08
Professional IP video door phone with intelligent facial recognition and 5" IPS touchscreen. 6 access methods (Face, RFID EM/Mifare, PIN, BLE, QR code, mobile app), 2MP wide-angle 116° camera with HDR and night vision. Capacity for up to 20,000 face profiles and 100,000 cards. Robust IP66/IK08 aluminum construction for extreme outdoor use (-40°C to +55°C). Expandable modular architecture (LTE, fingerprint, induction loop). SIP/ONVIF, PoE compatible 802.3at. Complete solution for residential buildings, offices, gated communities and industrial sites.
As an official supplier of Akuvox, we are able to offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.
AKUVOX S535 - IP Video Doorphone with Facial Recognition
GENERAL PRESENTATION
L'Akuvox S535 represents the new generation of intelligent video door entry systems, combining premium design and cutting-edge technologies to offer a complete, scalable access control solution. Featuring a 5" IPS touchscreen and aluminum front panel, the S535 combines elegance and robustness to adapt perfectly to the most demanding residential and commercial environments.
This Linux-based IP video doorkeeper incorporates an advanced facial recognition system capable of managing up to 20,000 profiles, combined with 5 other access methods (RFID EM/Mifare card, PIN code, Bluetooth BLE, QR code and mobile application) for maximum flexibility. Its wide-angle 2MP camera (116° horizontal) with HDR technology and automatic illumination guarantees reliable identification in all lighting conditions, day and night.
Designed to withstand the most extreme climatic conditions (-40°C to +55°C), the S535 boasts IP66 (totally waterproof) and IK08 (shockproof) certifications, guaranteeing long-term reliability for outdoor installations. Its modular architecture enables the addition of optional modules (LTE, fingerprint reader, magnetic induction loop for the hearing impaired), offering a scalability unique on the market.
Compatible with SIP and ONVIF standards, the S535 integrates easily into existing infrastructures and communicates with indoor monitors, smartphones, video recorders (NVRs) and third-party video management systems. A complete professional solution for residential buildings, offices, gated communities and industrial sites.
KEY FUNCTIONS

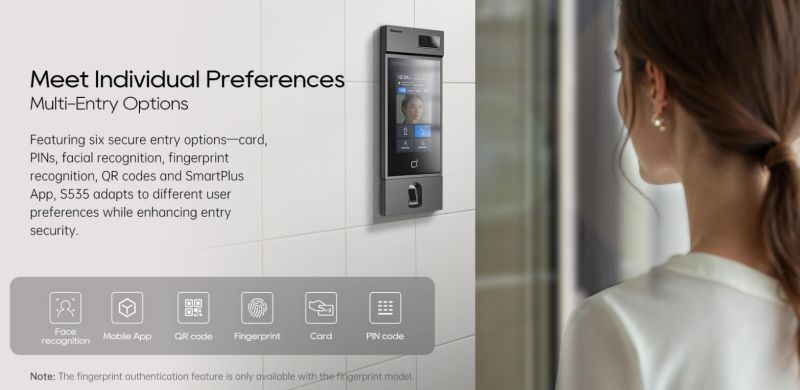

Multi-Modal Access Control (6 methods)
- Advanced facial recognition up to 20,000 saved profiles, identification in
- RFID cards eM (125kHz), Mifare (13.56MHz), DesFire EV2/EV3, Felica support - up to 100,000 cards
- PIN code up to 50,000 personal codes
- Bluetooth BLE 5.0 : Contactless opening from smartphone
- QR Code : Generating temporary codes for visitors
- Mobile application remote control via SmartPlus App (iOS/Android)
High Definition Video and Crystal Audio
- 2MP wide-angle camera 116° (H) x 62° (V), 1/2.9" CMOS sensor
- HDR technology dynamic compensation for difficult lighting conditions
- Automatic night mode integrated LED lighting with brightness sensor, minimum illumination 0.1 LUX
- Full HD resolution up to 1920x1080p at 30fps, H.264 codec
- Two-way IP audio echo cancellation, noise suppression, full-duplex communication
- Streaming ONVIF compatible with third-party NVRs and VMSs (Milestone, Genetec, etc.)
Premium Design and Industrial Robustness
- Aluminum panel high-quality, scratch- and weather-resistant finish
- 5" IPS touch screen 1280x720 resolution, optimal sunlight readability
- Extreme protection iP66 (temporary immersion) + IK08 (5 joules impact resistance)
- Temperature range 40°C to +55°C (operation) / -40°C to +70°C (storage)
- Integrated sensors motion detection, brightness sensor, tamper alarm
Connectivity and Professional Integration
- SIP v2 protocol standard VoIP communication, compatible with all operators
- ONVIF Profile S universal integration with third-party video systems
- PoE 802.3at power and network over a single Ethernet cable (up to 100m)
- I/O ports 1 relay (12V/1A), 2 dry contact inputs, Wiegand (input/output), RS485
- Auto-provisioning automated configuration via DHCP/TFTP/HTTP server

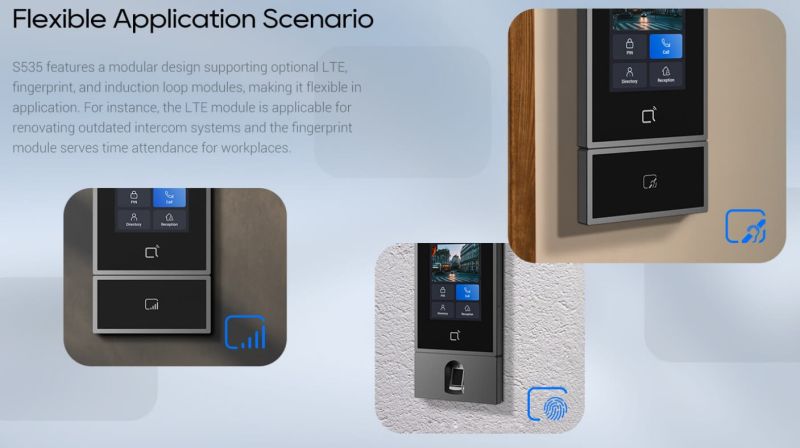

Scalable Modular Architecture
- LTE module 4G connection for sites without network infrastructure
- Fingerprint module : Multi-factor biometrics for enhanced security
- Magnetic induction loop accessibility for the hearing-impaired (PMR standard)
- Flexible installation surface-mounted or flush-mounted, adapters available
Advanced Management and Administration
- Complete web interface intuitive configuration via browser (HTTP/HTTPS)
- Cloud SmartPlus centralized multi-site management, push notifications
- Access logs time-stamping of all access attempts with photo/video
- Backup/Restore configuration export/import
- Firmware update : OTA (Over-The-Air) or via web interface
Cloud access and subscription
The products Akuvox can be used with or without a cloud. Access to theAkuvox is via the SmartPlus smartphone app. For example, it enables you to receive video calls, activate relays, generate temporary access QR codes, view visit history, trigger photo-taking, and more.
If you buy a video door entry system and a monitor from us at the same time, we'll give you the cloud for life. Unlike the license you can buy on our site, the version we offer does not include the ability to make calls to landlines.
If you don't want a screen, you can choose to buy a cloud license for one year, or you can buy a lifetime cloud license.
These licenses are valid for one residence/family, up to a total of 4 cloud users. Beyond 4 users, a subscription of CHF 2 per month will be required for each additional user (for the 5th, 6th etc.).
TECHNICAL DATA
Hardware and Display
| Component | Specifications |
|---|---|
| Front panel | Anodized aluminum |
| Screen | 5" IPS LCD capacitive touchscreen |
| Screen resolution | 1280 × 720 pixels (HD) |
| Operating system | Embedded Linux |
| Processor | ARM Cortex multi-core |
| Dimensions (HxWxD) | 210 × 100 × 27 mm |
| Weight | ~600g |
Camera and Video
| Specifications | Details |
|---|---|
| Sensor | 1/2.9" CMOS, 2 megapixels |
| Viewing angle | 116° (H) / 62° (V) |
| Video resolution | 1080p, 720p, VGA, 4CIF, QCIF |
| Video codec | H.264 |
| Frame rate | Up to 30 fps (1080p) |
| HDR | Yes (Wide Dynamic Range) |
| Minimum illumination | 0.1 LUX |
| Infrared LED | Integrated automatic lighting |
| White balance | Automatic |
| Streaming | RTSP, ONVIF Profile S |
Audio
| Specifications | Details |
|---|---|
| Protocols | SIP v1 (RFC2543), SIP v2 (RFC3261) |
| Narrowband codecs | G.711a, G.711μ |
| Wideband codecs | G.722 |
| DTMF | In-band, out-of-band (RFC2833), SIP Info |
| Microphone | 1× omnidirectional |
| Speaker | 1× 2W |
| Echo cancellation | Yes (AEC) |
| Noise suppression | Yes (ANR) |
| VAD | Voice Activation Detection |
| CNG | Comfort Noise Generator |
Access Control
| Type | Capacity |
|---|---|
| Users | 20'000 |
| Facial templates | 20'000 |
| RFID cards | 100'000 |
| PIN codes | 50'000 |
| Card types | EM (125kHz), Mifare Classic/Plus, DesFire EV2/EV3, Felica |
| NFC | Yes (Android only) |
| Bluetooth | BLE 5.0 |
| QR Code | Yes (temporary generation) |
Sensors and Detection
| Function | Specifications |
|---|---|
| Light sensor | Automatic (adaptive LED) |
| Motion detector | Integrated PIR |
| Tamper alarm | Tamper contact on housing |
| Facial recognition | AI algorithm, 99 |
Interfaces and Connectivity
| Interface | Specifications |
|---|---|
| Ethernet | 1× RJ45 10/100 Mbps auto-adaptive |
| PoE | IEEE 802.3at (class 4, max. 25.5W) |
| Relay | 1× NO/NC contact (12V/1A max.) |
| Inputs | 2× dry contacts |
| Wiegand | 1× input/output (selectable) |
| RS485 | 1× port (Modbus RTU) |
| Bluetooth | BLE 5.0, range ~10m |
| Expandable module | 1× slot (LTE/print/loop) |
| Reset button | 1× (factory reset) |
Network and Protocols
| Protocols | Support |
|---|---|
| SIP | v1 (RFC2543), v2 (RFC3261) |
| Video | ONVIF Profile S, RTSP, RTP |
| Network | IPv4, HTTP, HTTPS, FTP, DNS, NTP, DHCP, ARP, ICMP, TCP, UDP |
| Configuration | Auto-provisioning (TFTP, HTTP, HTTPS) |
| Security | HTTPS, SRTP, TLS, digest authentication |
Power supply
| Type | Specifications |
|---|---|
| PoE | IEEE 802.3at (25.5W max.) |
| External power supply | DC 12V / 4A max (optional) |
| Typical consumption | ~8W (standby) / ~15W (communication) |
| Maximum consumption | ~48W (with module + active relay) |
Environment
| Parameter | Beach |
|---|---|
| Operating temperature | -40°C to +55°C |
| Storage temperature | -40°C to +70°C |
| Humidity | 10% to 90% (non-condensing) |
| Protection class | IP66 (rain/dustproof) |
| Shock resistance | IK08 (5 joules) |
| Installation | Recessed or surface-mounted (outdoor/indoor) |
Software and Compatibility
| Function | Details |
|---|---|
| Web interface | Multi-language HTTP/HTTPS (FR, EN, DE, ES, IT, etc.) |
| Mobile application | SmartPlus (iOS/Android) |
| Cloud | SmartPlus Cloud (centralized management) |
| NVR/VMS | ONVIF compatible (Milestone, Genetec, Synology, QNAP, etc.) |
| Indoor monitors | Complete range Akuvox |
| Data export | Access logs, configuration, user database |
Specifications
| Protocol | IP RFID/NFC |
|---|---|
| Type | Doorkeeper/Intercom |
| Function | Access Control Dry Contact |
| Camera by Type | Cube |
| Camera by Resolution | 2MP (HD1080p) |
| Camera by Focus | Fixed |
| Cameras by Use | Outdoor |
| Use | Access Control/Intercom CCTV |
| Infrared vision | Yes |
| Wifi | No |
| Pan - Tilt | No |
| Optical Zoom | No |
| POE | Yes |
| SD Card | No |
| WDR | No |
| Audio | Yes |
| ONVIF | Yes |
| Remote focus | No |
| PIR Sensor | Yes |
| Type of installation | On-Wall |
