Akuvox - R29CT multi-tenant IP video door entry system with facial recognition, fingerprint reader, QR Code, BLE, 7" touch scree

Discover the Akuox R29CT, certainly the most advanced doorkeeper on the market

The R29CT fromAkuvox is one of the most advanced door entry systems on the market. It is equipped with almost all existing means of access. It features facial recognition to authorize a person's entry without even having to touch the doorkeeper, a fingerprint reader, cell phone unlocking, QR Code to generate temporary access, a virtual keyboard to manage PIN codes, RFID, BLE, NFC (Android) and much more.

Its screen can be configured to display a list of tenants, and will also make it easy to highlight the concierge's number, for example.

ONVIF and SIP compatible, it can be integrated into all your existing systems. Its 3 inputs and 3 relays can be used, for example, to call an elevator or open a door or gate.

Communicate with your visitors or open the door for them via your smartphone, from anywhere in the world.

The connected video doorbell allows you to see in real time who's ringing your doorbell, even if you're not at home. Connected to your Internet box, it can be installed in place of a traditional doorbell, allowing visual verification of the visitor's identity.

When a visitor rings the doorbell, you will receive on your console Akuvox you'll receive a push notification or a call alerting you to the presence of someone in your home, on your smartphone or tablet. You'll be able to see who the visitor is in wide-angle HD, as well as talk to them. The doorphone can also be used at night, thanks to its night vision.

Doormen Akuvox are SIP and ONVIF compatible. This means you can retrieve the video stream from your SIP phones or video recorder, for example.

Access your video door phone wherever you are

The IP connection enables you to stay connected 24/7 with the images transmitted by the video doorkeeper.

The 1080p camera provides you with high-definition video to see who's arriving at your front door directly from your smartphone (iOS or Android compatible) or tablet.

Built-in infrared LEDs provide high-quality night vision in all circumstances.

Interact with visitors remotely

The two-way audio link lets you talk directly to the visitor.

The video doorkeeper has several relays that you can activate remotely from your Smartphone, for example to open a garage door or an electric strike.

The doorkeeper includes an RFID reader, making it possible to distribute RFID badges or cards among the various users authorized to access the site, whether a company or a private home.

Cards and badges can be configured via theAkuvox to allocate individual time slots and action plans.

For example, badge 1 gives access to the site from 6am to 8am and opens the gate. Badge 2 gives access to the site from 9am to 6pm and opens the gate and door.

QR Code management is very useful for generating temporary access. For example, you can define the QR Code's validity period and the maximum number of times it can be used. All you have to do is send it to the recipient, who can then display it on his or her smartphone or print it out.

Facial recognition unlocking is totally secure. No data is transmitted to the manufacturer, and everything is stored locally. The 2 cameras ensure that detection cannot be counterfeited.

SIP-compatible

Door phones and screens Akuvox are truly SIP-compatible. You can then configure your equipment Akuvox so that it can make SIP calls, using your SIP account for example. This will enable your doorphone to call a landline or mobile phone, for example.

Cloud access and subscription

The products Akuvox can be used with or without a cloud. Access to theAkuvox is via the SmartPlus smartphone app. For example, it enables you to receive video calls, activate relays, generate temporary access QR codes, view visit history, trigger photo-taking, and more.

If you buy a video door entry system and a monitor from us at the same time, we'll give you the cloud for life. Unlike the license you can buy on our site, the version we offer does not include the ability to make calls to landlines.

If you don't want a screen, you can choose to buy a cloud license for one year, or you can buy a lifetime cloud license.

These licenses are valid for one residence/family, up to a total of 4 cloud users. Beyond 4 users, a subscription of CHF 2 per month will be required for each additional user (for the 5th, 6th etc.).

Choosing reliable equipment

Doormen Akuvox are made from robust materials. They are designed to withstand sub-zero temperatures, heat and the elements.

All products Akuvox are guaranteed for 2 years and designed to last. Akuvox is part of Star-net, a $1.6 billion group with over 4,000 R&D engineers (70% of the workforce).

Akuvox is China's leading provider of intercom solutions.

Key functions

• 3MP wide-angle camera (120° H, 64° V)
• Additional 1MP camera
• Vandal-resistant enclosure
• PoE power supply
• Two-way IP communication with echo cancellation functions
• SIP-compatible for integration into PBXs.
• ONVIF compatible for integration with surveillance systems.
• Features 3 relay outputs and 3 inputs
• Keypad for PIN code entry
• RFID and NFC reader
• Wiegand reader

TECHNICAL DATA

General

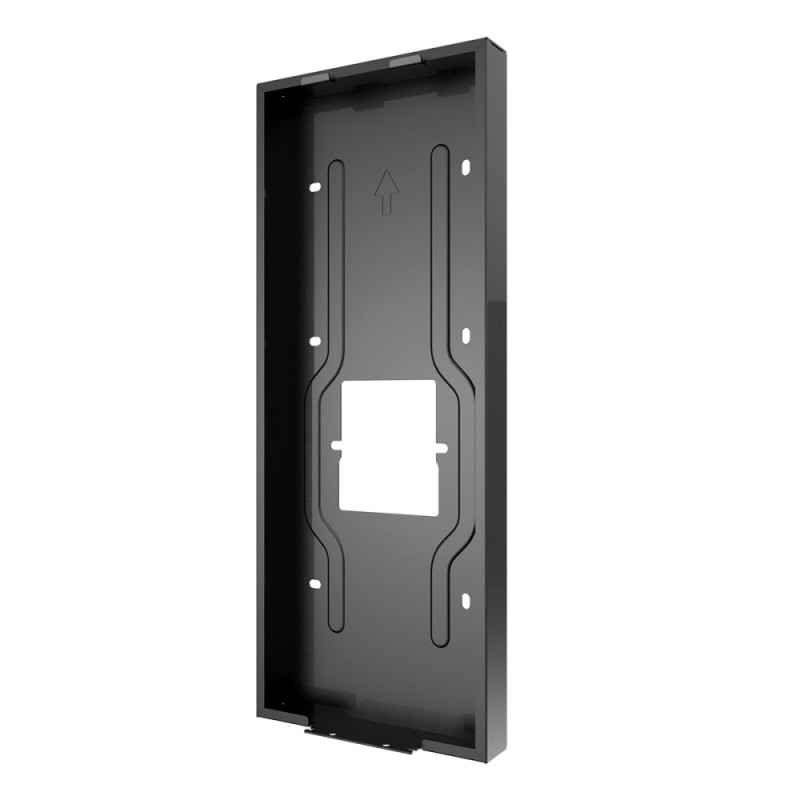

• Flush-mounted or surface-mounted (flush-mounting boxes sold separately)
• Front panel: aluminum alloy
• Large 7" IPS LED display
• Main camera: 3MP, auto brightness
• Auxiliary camera: 1MP

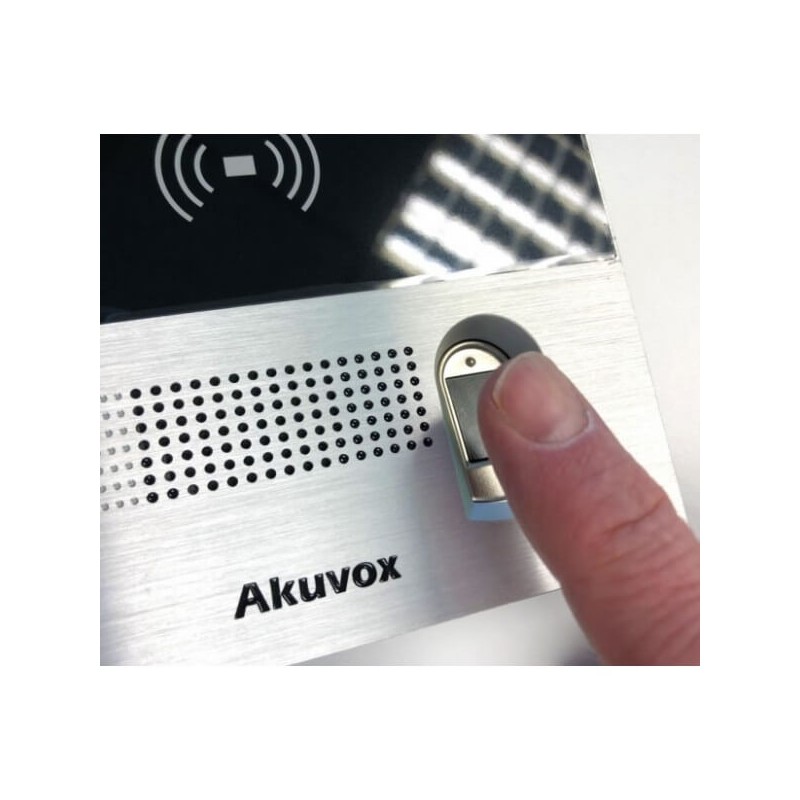

• Fingerprint reader: yes
• Brightness sensor: yes
• Infrared sensor: yes
• Wiegand reader: yes
• RS485 port: yes
• Bluetooth: yes
• RF card reader: 13.56MHz (with NFC) and 125kHz
• Relay outputs: 3
• Inputs: 3
• Microphone: -32dB
• Speaker: 8Ω / 2W
• Ethernet port: RJ45, 10/100Mbps adaptive
• Power over Ethernet: 802.3af
• 12V DC connector (if not PoE-powered)
• Protection rating: IP65 / IK06
• Installation: surface-mounted (324x130x33mm)
• Operating humidity: 10~90%
• Operating temperature: -20°C to +55°C.

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711A, G.711μ, G.729
• Wideband audio code: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
• Echo cancellation
• Voice activation detection
• Comfort noise generator

Video

• Sensor: 1/3", CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec : H.264
• Video resolution: up to 1920x1080
• Maximum image transfer rate: 1080p - 25fps
• Viewing angle: 120°(H) / 64°(V)
• High-intensity IR LEDs for illuminating images in the dark with internal light sensor
• Compatible with third-party video components, such as video recorders.
• White LED for QR Code scanning

Door entry functions

• Android-based for third-party application support or customization.
• Relays individually controlled by DTMF tones
• Multi-solution access control: Facial, fingerprint, RFID, PIN, BLE, QR Code.
• Camera always operational
• Automatic night mode with LED lighting
• White balance: auto
• Minimum illumination: 0.1LUX

Network and protocol

• Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and maintenance

• Self-supply
• Web management portal
• Web-based package repository
• Configuration backup/restore
• Input log export
• Export / import access table
• Firmware update
• System logs (including door access logs)
