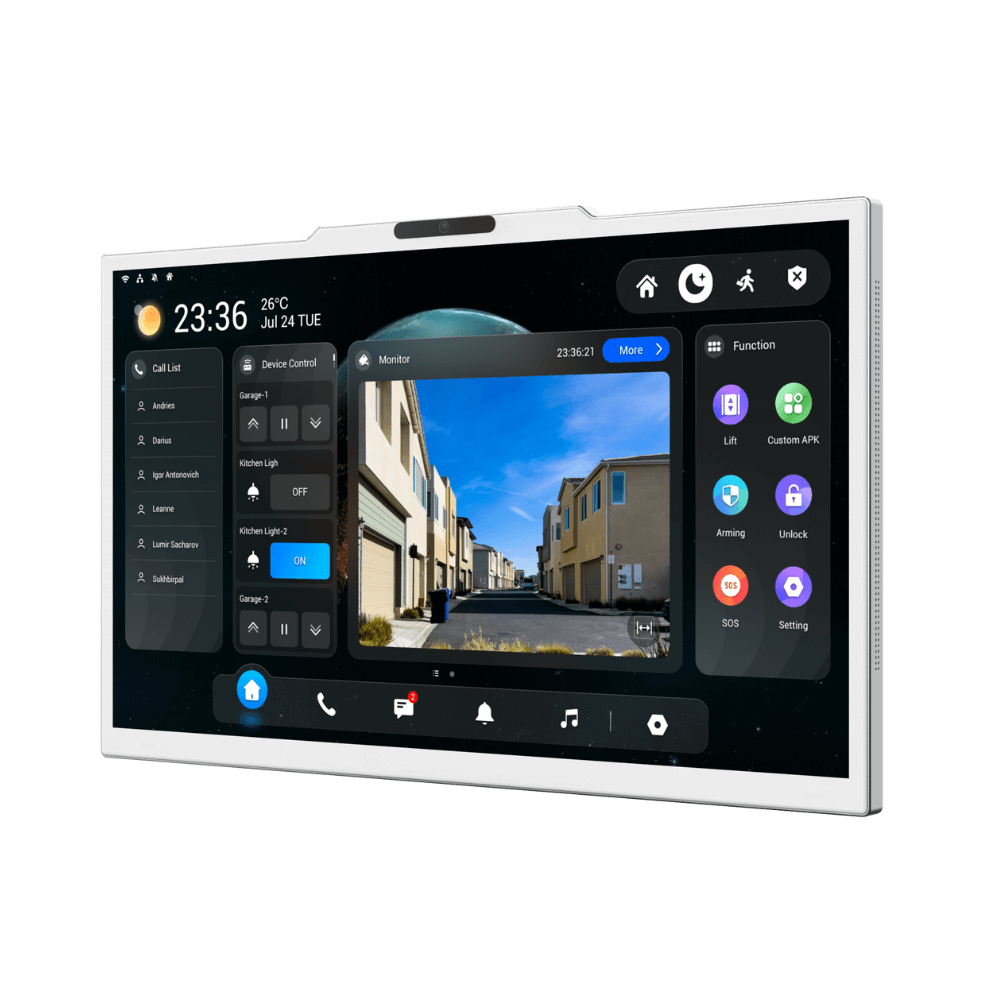

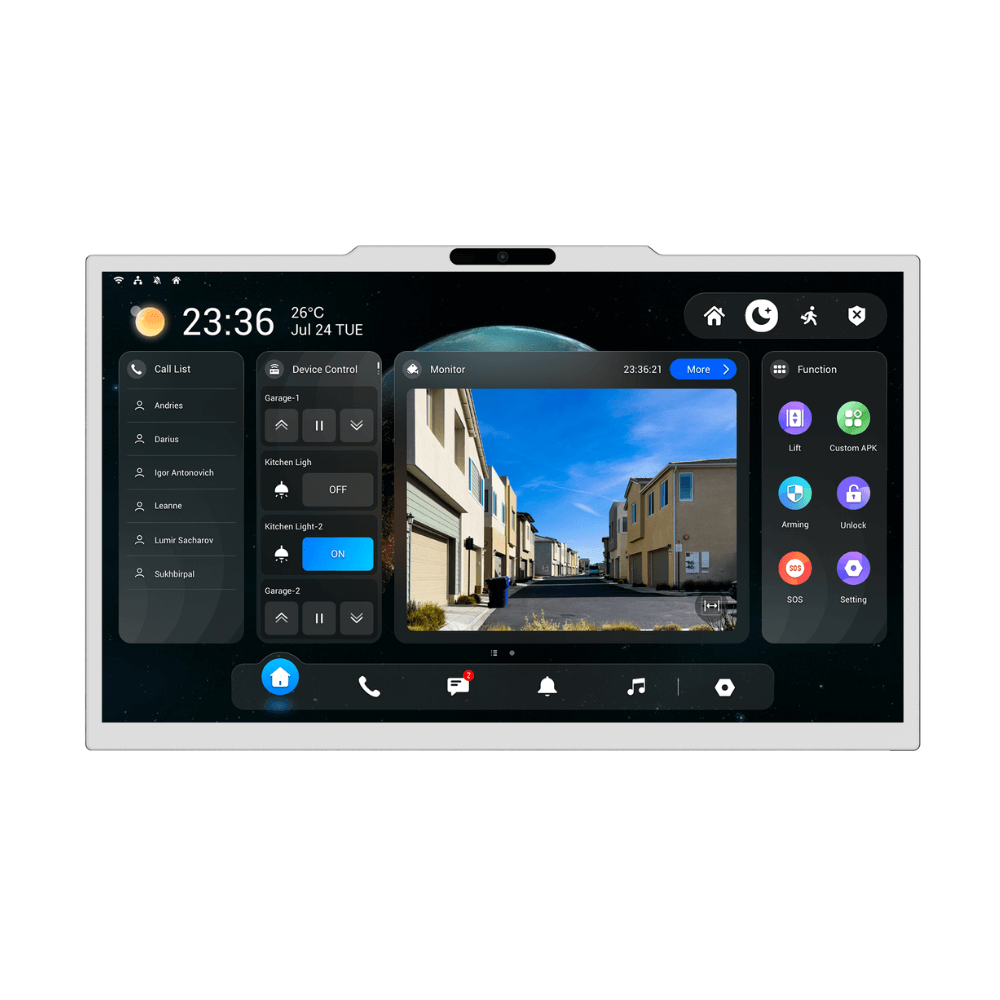

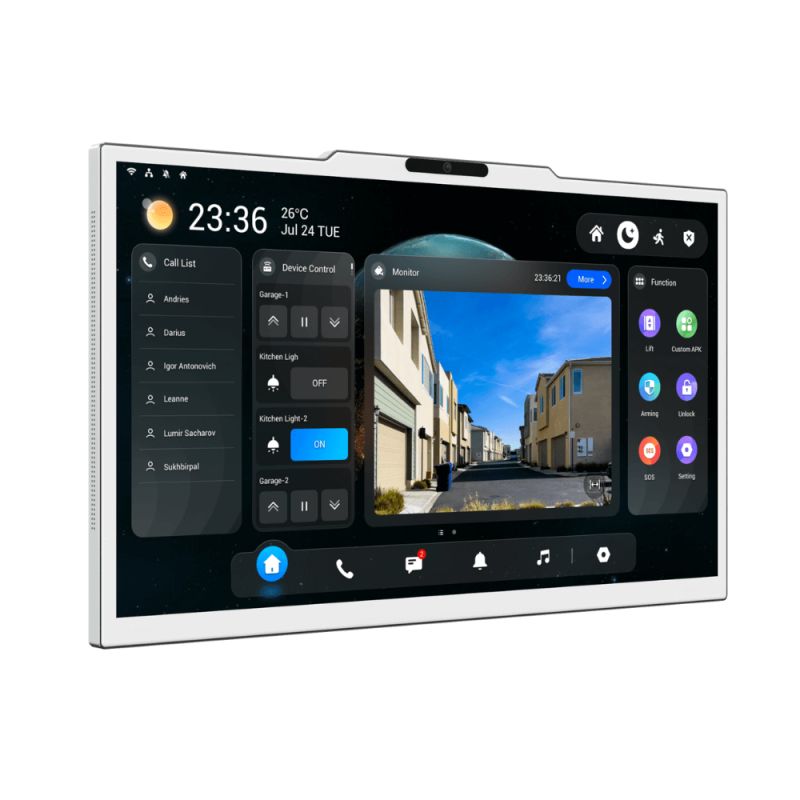

Akuvox X937A - Premium Android 14 indoor monitor with 15.6" touchscreen

Introduction

TheAkuvox X937A is a high-end indoor monitor with Android 14 operating system, offering an unrivalled audio-visual intercom experience with its large 15.6" IPS touchscreen. Designed for modern homes, villas and apartment buildings, this device combines HD video communication, AI voice assistant, voice changer for security, automatic brightness adjustment and full integration with CCTV video surveillance systems. With its elegant aluminum design, four high-fidelity speakers and ultra-stable WiFi 6 connectivity, the X937A transforms your intercom into an intelligent home control center.

Key features

High-definition premium touchscreen

• 15.6" diagonal IPS LCD panel with transmissive technology
• Full HD resolution: 1920×1080 pixels for a crystal-clear image
• Ultra-responsive multi-touch projected capacitive touchscreen
• 16:9 aspect ratio for cinematic viewing
• High contrast of 1000:1 for deep blacks
• Brightness of 250 cd/m² with automatic adjustment to ambient light levels
• Exceptional viewing angles: 89° in all directions (left, right, up, down)
• Automatic brightness adjustment by ambient sensor for eye protection and energy savings

Operating system and performance

• Android 14 for maximum compatibility with third-party applications
• 8 GB RAM for fluidity and multitasking
• 32 GB internal memory for data storage and applications
• Modern, customizable user interface
• Powerful processor for real-time HD video processing

Quadruple professional audio

• Four noise-canceling microphones (-38dB) for clear pickup from a distance
• Four 8Ω / 4W high-fidelity speakers for immersive, powerful sound
• Echo Cancellation for natural conversations
• Voice Activation Detection (VAD)
• Comfort Noise Generator
• Automatic Gain Control
• Narrowband audio codecs: G.711a, G.711μ, G.729
• Broadband audio codecs: G.722 for HD voice quality
• DTMF: in-band, out-of-band (RFC2833), SIP Info

Integrated IA voice assistant

• Voice capture up to 5 meters away
• Up to 95% voice recognition accuracy
• Voice commands in English
• IA assistant for hands-free system control

Voice Changer

• Privacy protection for children and single women
• Real-time voice modification during communications
• Enhances security by masking voice identity

High-resolution integrated camera

• 5 megapixel sensor for clear images and video
• Real-time video streaming
• Supported formats: H.263 and H.264
• Ideal for visual communication with visitors or other monitors

Advanced network connectivity

• WiFi 6 (IEEE 802.11 b/g/n/ax) for maximum stability and throughput
• Bluetooth 5.3 for connecting wireless accessories
• 2× adaptive RJ45 10/100 Mbps Ethernet ports
• Power-over-Ethernet+ (PoE+ 802.3at) or external 12V DC power supply
• Supported protocols: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Professional SIP intercom

• SIP v1 (RFC2543) and SIP v2 (RFC3261) compliance
• Two-way audio communication with other network units
• Easy integration into all SIP-compatible IPBXs
• Intercom calls between monitors and door stations
• Address book and call management

I/O and integration

• RS485 port for external device control
• 2 output relays for control of electric locks, gates and strikes
• 1 bell input for triggering actions
• 8 alarm inputs for integration of security sensors (motion, opening detectors, etc.)
• 1 HDMI input for displaying external CCTV cameras or video sources
• Full integration with CCTV and home automation systems

Design and construction

• Premium brushed aluminum front panel
• Elegant, modern design blends perfectly into contemporary interiors
• Compact dimensions: 360×210×21 mm (W×H×D)
• Flexible installation: wall-mounted or desk-mounted with dedicated bracket
• High-end finish for premium residential spaces

Technical specifications

Display

• Screen type: 15.6" transmissive IPS LCD
• Display mode: Normally black
• Resolution: 1920×1080 pixels (Full HD)
• Aspect ratio: 16:9
• Contrast: 1000:1
• Luminosity: 250 cd/m² (250 cd/m²)
• Viewing angles: 89° (left/right/up/down)
• Touch technology: projected capacitive multi-touch

Hardware

• Front panel : Aluminum
• RAM : 8 GB
• ROM: 32 GB
• Operating system: Android 14
• Camera: 5 megapixels
• Microphones: Quad microphones, -38dB
• Speakers: Quad speakers, 8Ω / 4W

Connectivity

• WiFi : IEEE 802.11 b/g/n/ax (WiFi 6)
• Bluetooth: 5.3
• Ethernet: 2× RJ45 10/100 Mbps adaptive
• RS485: 1 port
• HDMI: 1 input

Inputs/outputs

• Output relays: 2
• Doorbell input: 1
• Alarm inputs: 8

Power supply

• PoE+: 802.3at Power-over-Ethernet
• External power supply: 12V DC connector (if PoE not used)
• Power consumption: 802.3at compliant (up to 25.5W)

Operating conditions

• Operating temperature : -10°C to +45°C
• Storage temperature: -20°C to +70°C
• Operating humidity: 10% to 90% (non-condensing)

Dimensions and installation

• Dimensions: 360×210×21 mm (W×H×D)
• Weight: Not specified in datasheet
• Installation: Wall-mounted or desktop

Audio/video protocols

• SIP: v1 (RFC2543), v2 (RFC3261)
• Narrowband audio codecs: G.711a, G.711μ, G.729
• Broadband audio codecs: G.722
• Video codecs : H.263, H.264
• DTMF: In-band, out-of-band (RFC2833), SIP Info
• SRTP: Supported for secure communications

Network protocols

• Supported: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
