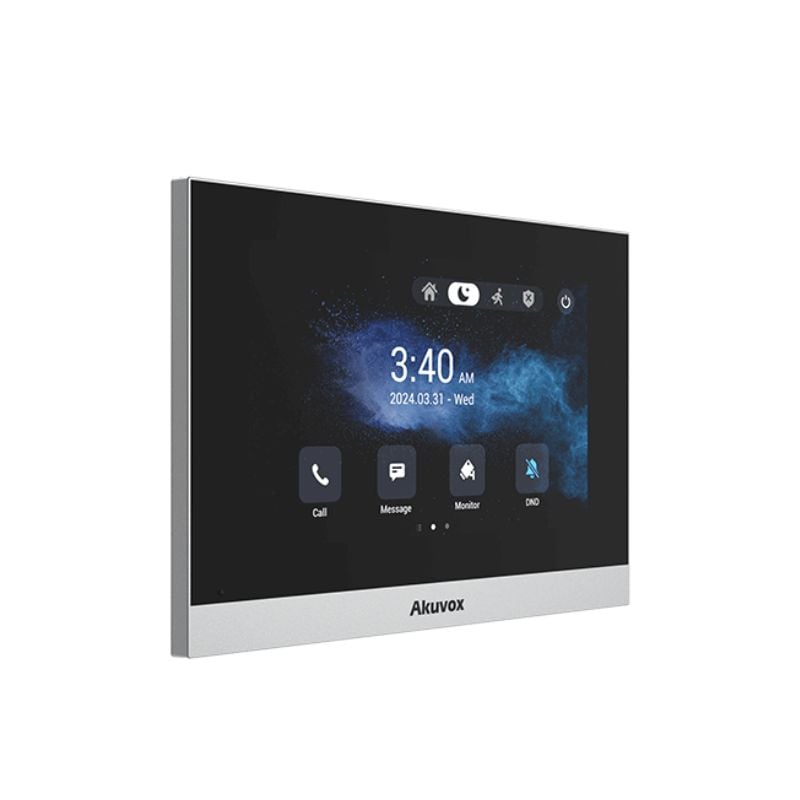

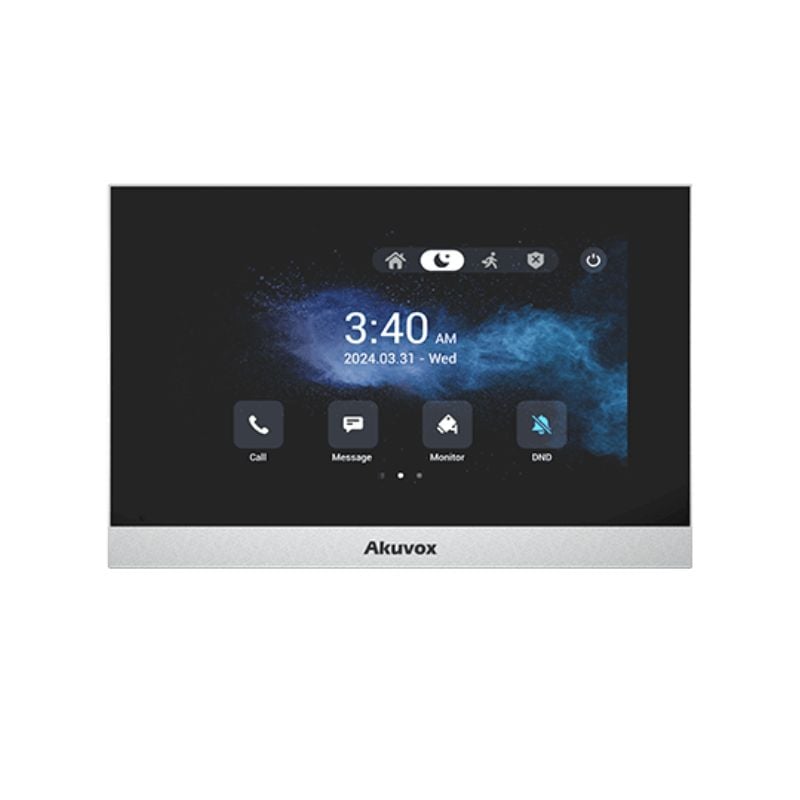

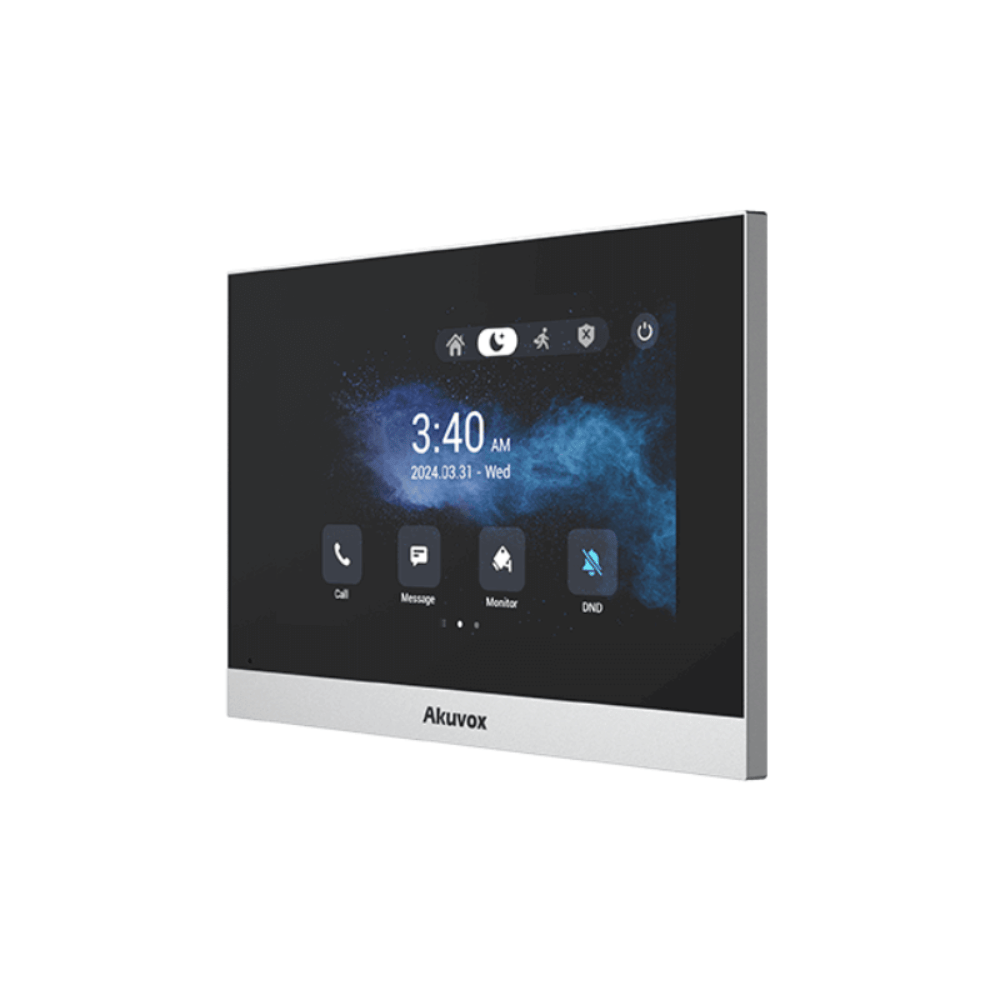

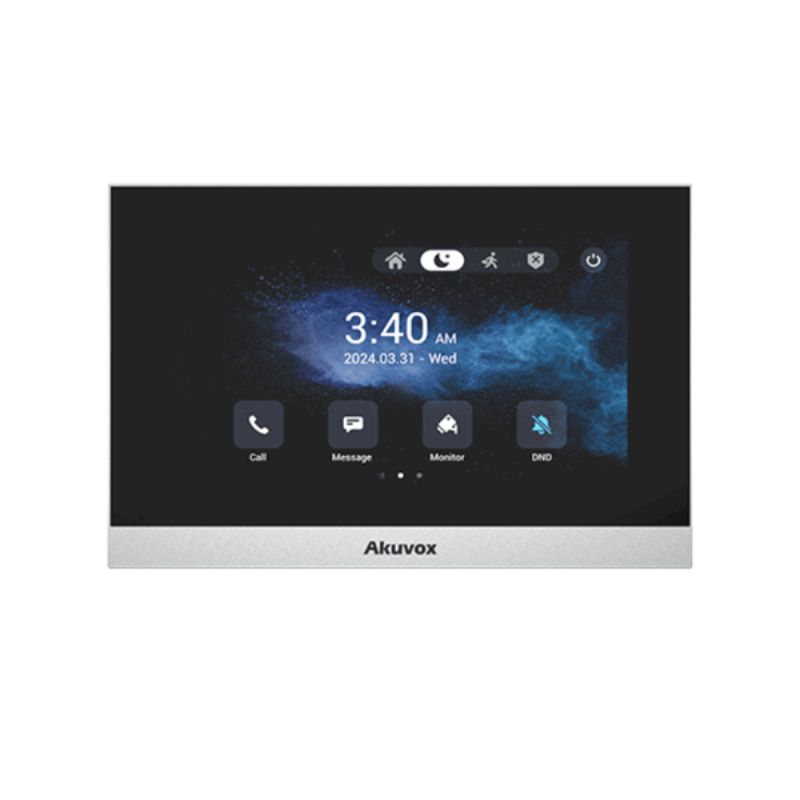

Akuvox – SIP Indoor Console with 7" Touchscreen, Wi-Fi and Bluetooth (Android Version) Akuvox C316W
The Akuvox C316 is a sleek and modern IP intercom monitor, designed for seamless integration into residential and commercial security and communication systems. With its 7-inch display and optional Wi-Fi connectivity, this model is ideal for access control and managing communications with great flexibility.
- Android system: Equipped with Android 12, supports the installation of certain third-party applications.
- 7-inch touchscreen: Intuitive interface for easy navigation and efficient use.
- Wi-Fi connectivity: Enables installation without network cabling, ideal for flexible setups.
- High-definition video calls: Ensures clear and secure communication with visitors.
- Compatibility with Akuvox: Seamless integration with Akuvox systems for residential and commercial installations.
As an official Akuvox provider, we offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.

Overview
The Akuvox C316 is a sleek and modern IP intercom monitor designed for seamless integration into residential and commercial security and communication systems. With its 7-inch screen and optional Wi-Fi connectivity, this model is ideal for access control and flexible communication management.
Third-party App Integration with Android
This screen runs Android 12 and allows the installation of certain third-party apps, turning it into a smart home or multimedia control panel.
Key Features
- Android System: Powered by Android 12, supports the installation of select third-party apps.
- 7-Inch Touchscreen: Intuitive interface for easy navigation and efficient use.
- Wi-Fi Connectivity: Allows network-free installation, ideal for flexible setups.
- High-Definition Video Calls: Ensures clear and secure communication with visitors.
- Compatible with Akuvox: Seamless integration with Akuvox systems for both residential and commercial use.
TECHNICAL SPECIFICATIONS
General
- Case: Plastic
- RAM / ROM: 2GB / 8GB
- Display: 7" capacitive IPS LCD
- RS485 port: Yes
- Relay outputs: 1
- Doorbell input: 1
- I/O: 8
- Microphone: -58dB
- Speakers: 4Ω / 2W
- Network port: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- Power: 12V DC (if not powered via PoE)
- Installation: Wall-mounted or tabletop
- Dimensions: 200.2x132.2x27.2mm
- Operating humidity: 10~90%
- Operating temperature: -10°C ~ +45°C
Touchscreen
- Size: 7" (Diagonal)
- Aspect ratio: 16:9
- Resolution: 1024x600
- Contrast: 800:1
- Brightness: 270 cd/m2
- Viewing angle: 75° Left, 75° Right, 70° Top, 75° Bottom
-
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codecs: G.711A, G.711μ, G.729
- Wideband audio codec: G.722
- DTMF: In-band, out-of-band (RFC2833), SIP Info
- Echo cancellation
- Voice activity detection
- Comfort noise generator
- Automatic gain control
-
Network & Protocol
- Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto provisioning
- Web management portal
- Web package repository, configuration backup/restore
- Entry log export
- Access list export/import
- Firmware upgrade
- System logs (including door access logs)
Specifications
Protocol | Bluetooth IP |
---|---|
Type | Screens for intercoms |
Function | Access Control Dry Contact |
Use | Access Control/Intercom |
Wifi | Yes |
POE | Yes |
SD Card | No |
Audio | Yes |
Type of installation | In-Wall On-Wall |
