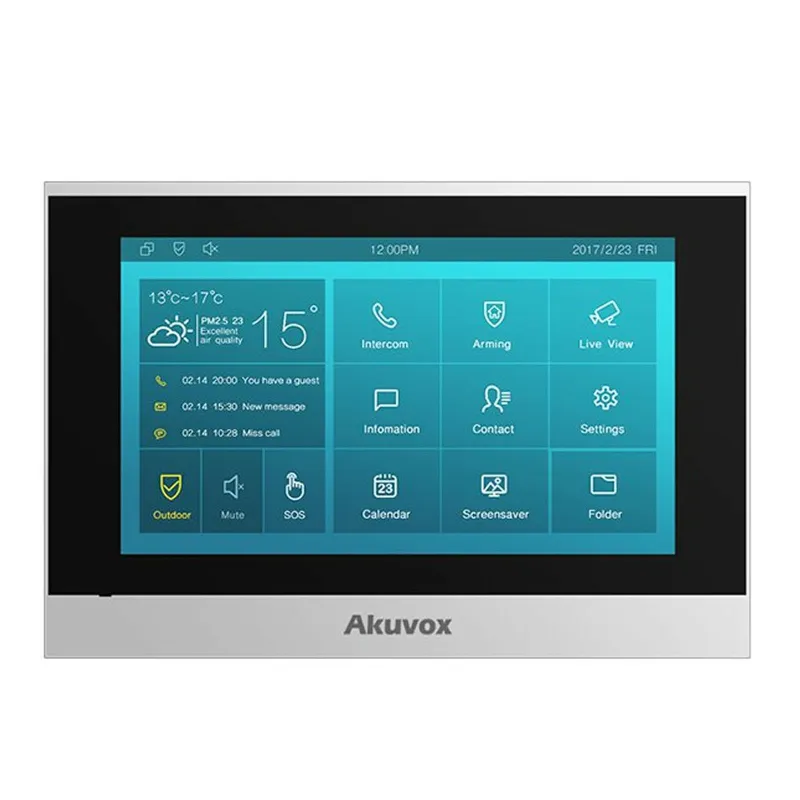

Akuvox - SIP indoor console with 7" touch screen (linux version) Akuvox C313S

The Akuvox C313S indoor video station is the perfect addition to any Akuvox video door entry unit. It is, among other things, equipped with an Android operating system and a 7 "capacitive touch screen. It provides exceptional audio and video communication with the video door entry unit but also with any other interior consoles for room to room communication using the SIP 2.0 protocol.

Connection to the network is made through a network cable. If the indoor station is connected via a network cable, it can be supplied with power via Power over Ethernet (PoE). In the event of an Internet failure, all functions of the indoor station and the Akuvox door stations connected to it are retained in the local network.

The Akuvox C313S offers a clean, discreet design.

The Akuvox C313S has one integrated relay and RS485 connectivity.

It can be wall mounted.

Premium audio and video quality

Residents will appreciate the opportunity to chat and see visitors ringing the doorbell before granting or denying access to the building. The premium audio and video quality guarantees clear and limpid exchanges.

TECHNICAL CHARACTERISTICS

General

• Casing: Plastic
• RAM / ROM: 64MB / 128MP
• Screen: 7 "IPS LCD capacitive
• RS485 port: Yes
• Relay outputs: 1
• Bell in: 1
• I/O: 8
• Microphone: -58dB
• Speakers: 4Ω / 2W
• Network port: 2xRJ45, 10 / 100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC power supply (if not powered by PoE)
• Installation: Wall .
• Dimensions: 200.2x132.2x27.2mm
• Operating humidity: 10 ~ 90%
• Operating temperature: -10°C ~ + 45°C

Touchscreen

• Size: 7 "(Diagonal)
• Ratio: 16:9
• Resolution: 800x480
• Contrast: 500: 1
• Brightness: 220 cd / m2
• Viewing angle: 50° Left, 50° Right, 40° Up, 50° Down

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711A, G.711μ, G.729
• Wideband audio code: G.722
• DTMF: DTMF In-Band, Out-of-Band (RFC2833), SIP Info
• Echo cancellation

Network and protocol

• Protocol support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Implementation and maintenance

• Self-supply
• Web management portal
• Package delivery on Web Backup / Configuration restoration
• Exporting the entry log
• Export / import access board
• Firmware update
• System logs (including door access logs)
