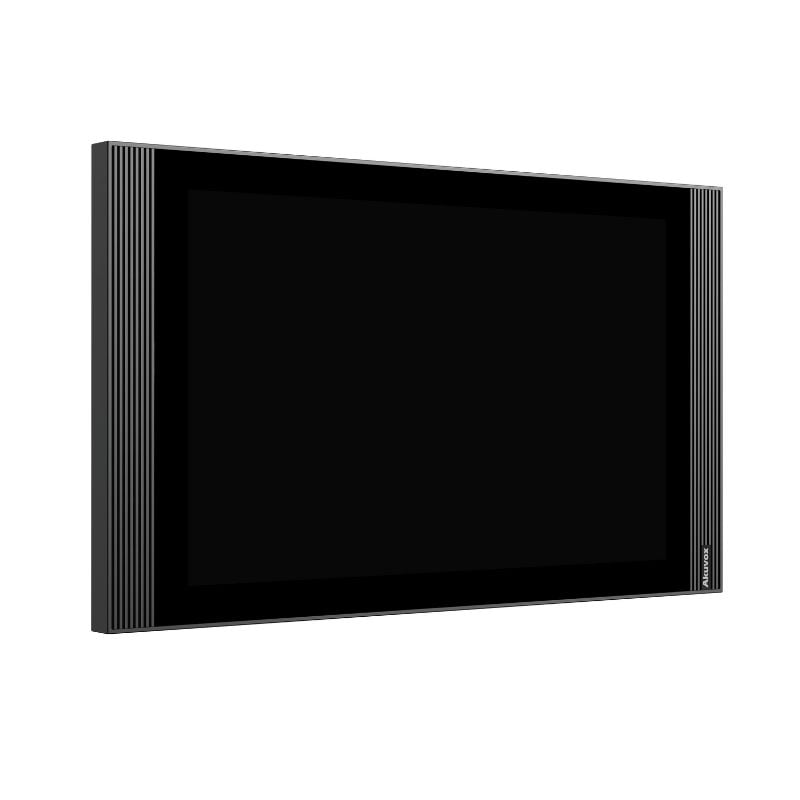

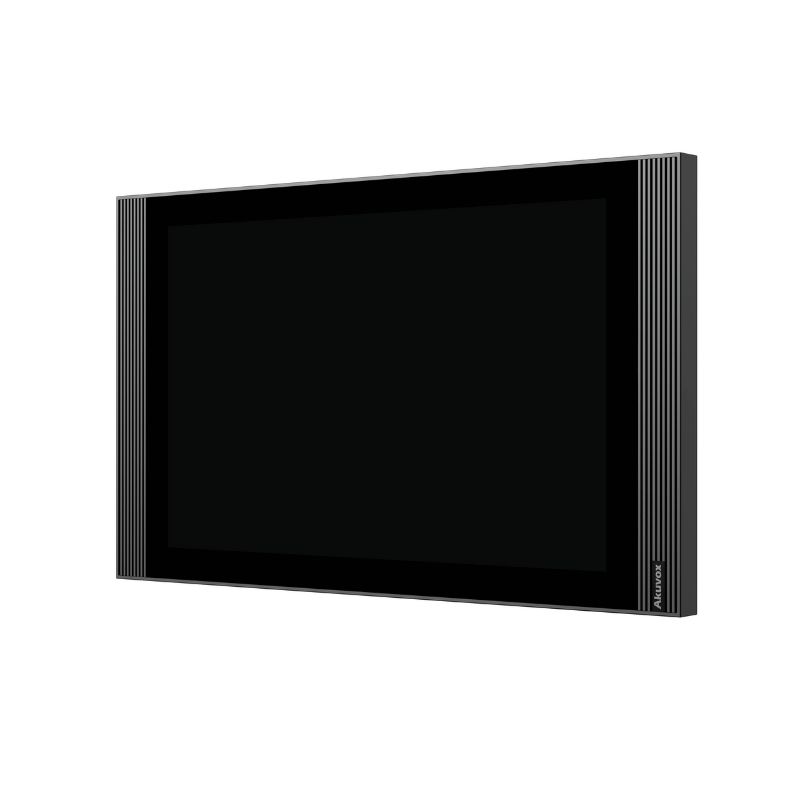

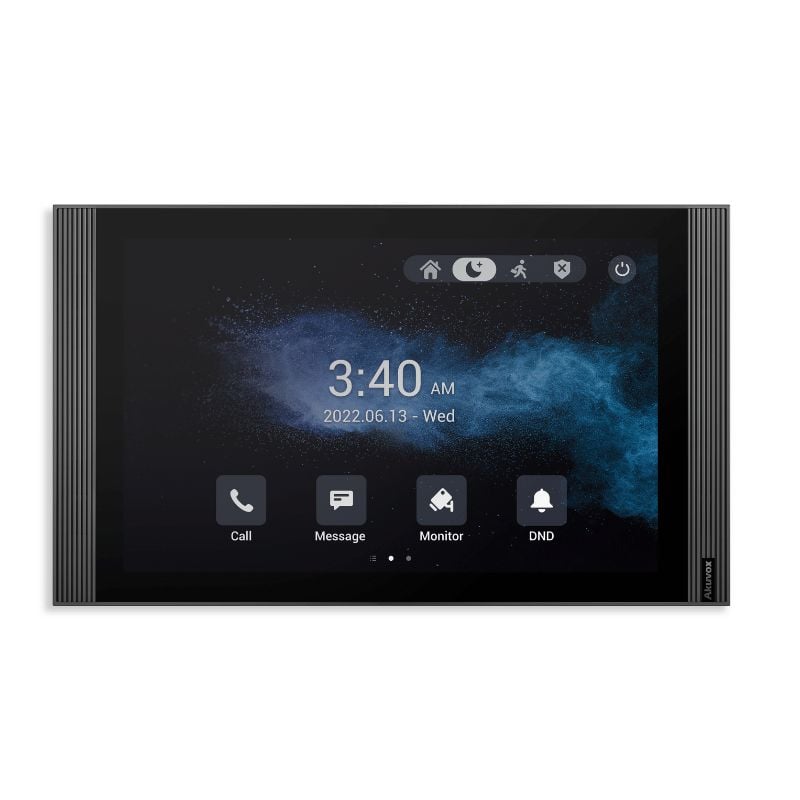

Akuvox S565W - SIP indoor console with 10” touchscreen, Linux
The Akuvox S565W is a 10-inch SIP video indoor monitor designed for intercom systems and high-end residential home automation. Running on a Linux operating system, this multifunctional communicator stands out with its high-resolution IPS touchscreen (1280x800 pixels) and elegant industrial design.
As an official Akuvox supplier, we have the ability to offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.
Akuvox - Communicate with your visitors in high definition
10-Inch SIP Video Indoor Monitor - Akuvox S565W
General Presentation
The Akuvox S565W is a 10-inch SIP video indoor monitor designed for intercom systems and high-end residential home automation. Running on a Linux operating system, this multifunctional communicator stands out with its high-resolution capacitive IPS touchscreen (1280x800 pixels) and elegant industrial design with integrated WiFi connectivity.
Primarily intended for the mid to high-end residential market, the S565 integrates perfectly into villas, apartment complexes, and modern home automation systems. Its standard SIP 2.0 protocol ensures universal compatibility with all SIP-compatible PBX systems, thus facilitating its integration into existing infrastructures.
The product offers superior quality bidirectional audio and video communication thanks to its Crystal Clear technology and integrated dual microphones. With competitive pricing positioning, the S565 represents an excellent value for money for professionals and individuals seeking a reliable and modern video intercom solution.
Key Functions
- 10-inch capacitive touchscreen: IPS LCD technology 1280x800 pixels, luminance 350 cd/m², contrast ratio 900:1
- Bidirectional SIP communication: HD audio and video with support for SIP v1 (RFC2543) and v2 (RFC3261), codecs G.711a/μ, G.722, G.729
- Integrated WiFi connectivity: IEEE802.11 b/g/n @2.4GHz for flexible wireless installation
- Dual network connectivity: 2 adaptive Ethernet ports RJ45 10/100Mbps, PoE IEEE802.3af
- Advanced home automation integration: 8 inputs/outputs, 1 relay output, 1 buzzer input, RS485 port
- H.264 video streaming: High-definition video transmission with integrated echo cancellation
- Versatile installation: Wall or desk mounting, compatible with US/European electrical boxes
- Complete network management: Auto-provisioning, web portal, configuration backup/restore
- Crystal Clear audio: Dual microphones and front speaker with echo cancellation technology
- Target applications: Villas, apartment complexes, home automation systems, modern interiors
General Characteristics
Dimensions and Installation
- Dimensions: 278 x 164 x 22.8 mm
- Front material: Resistant plastic
- Installation: Wall and desk mounting, compatible with US/European electrical boxes
Power and Environment
- Power supply: PoE 802.3af or 12V DC connector
- Operating temperature: -10°C to +45°C
- Storage temperature: -20°C to +70°C
- Operating humidity: 10% to 90%
Touchscreen and Display
- Screen size: 10 inches (diagonal)
- Display type: Transmissive IPS LCD, normally white mode
- Resolution: 1280 x 800 pixels
- Touch technology: Projected capacitive
- Contrast ratio: 900:1
- Luminance: 350 cd/m²
- Viewing angle: 80° (left/right/up/down)
Audio and Communication
- Microphones: Integrated dual microphones
- Speaker: One front speaker
- SIP protocols: SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codecs: G.711a, G.711μ, G.729
- Wideband audio codecs: G.722
- DTMF: Out-of-band DTMF (RFC2833), SIP Info
- Echo cancellation: Integrated
Video and Streaming
- Streaming format: H.264
Network Connectivity
- Ethernet ports: 2 x RJ45, 10/100Mbps adaptive
- WiFi: IEEE802.11 b/g/n @2.4GHz
- Supported protocols: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Inputs/Outputs and Interfaces
- RS485 port: Supported
- Relay output: 1
- Buzzer input: 1
- Inputs/Outputs: 8
System Performance
- RAM memory: 128MB
- ROM memory: 256MB
Management and Maintenance
- Auto-provisioning: Supported
- Web management portal: Integrated
- Web packet dump: Supported
- Backup/restore: Complete configuration
- Firmware update: Supported
- System logs: Including door access logs
Target Applications
- Villas: High-end individual residences
- Apartment complexes: Residential buildings
- Home automation systems: Connected home integration
- Modern interiors: Contemporary design
-
