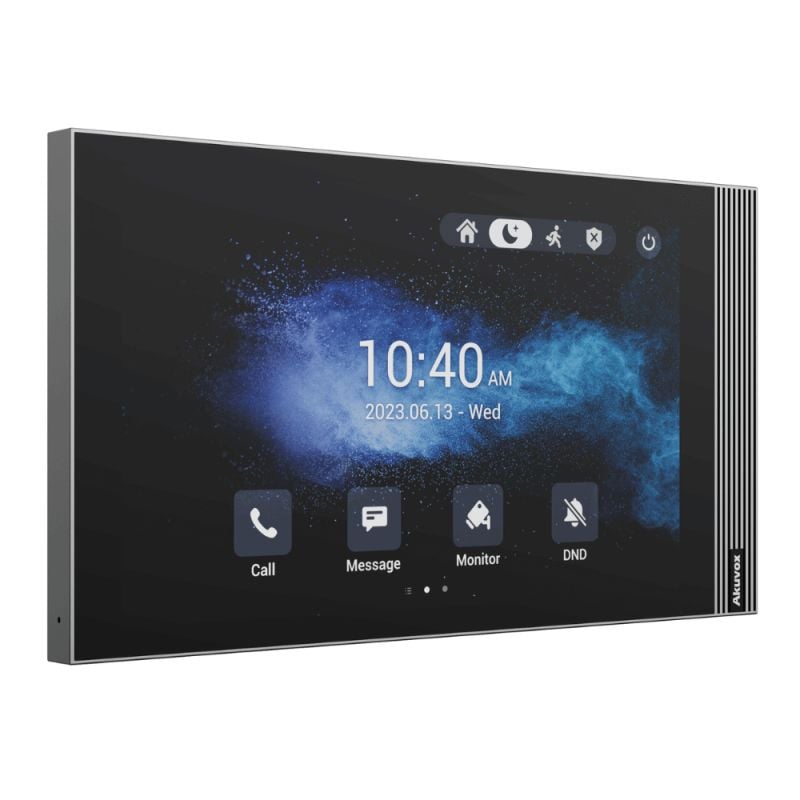

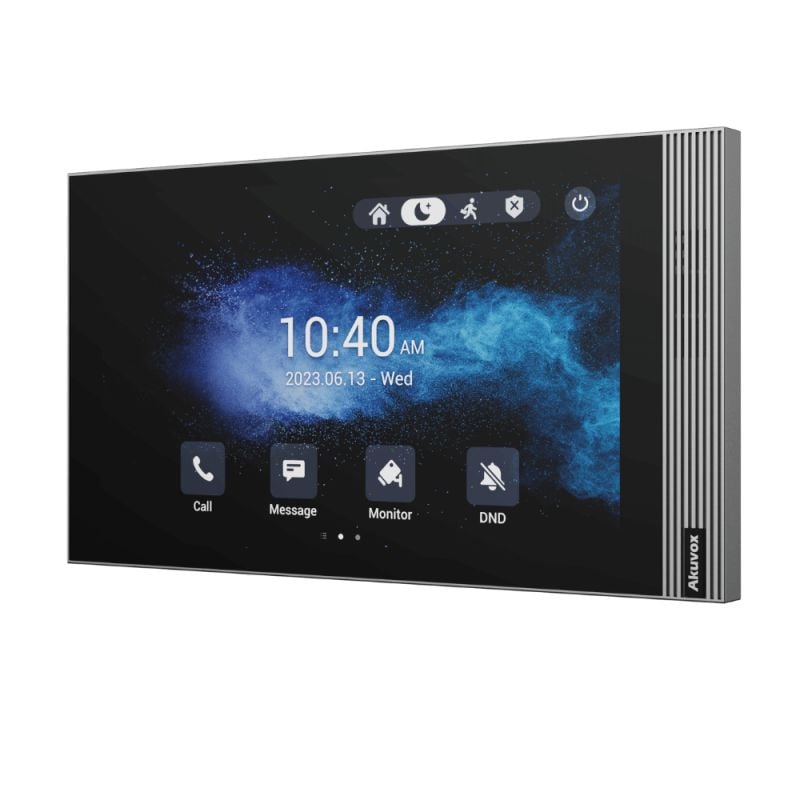

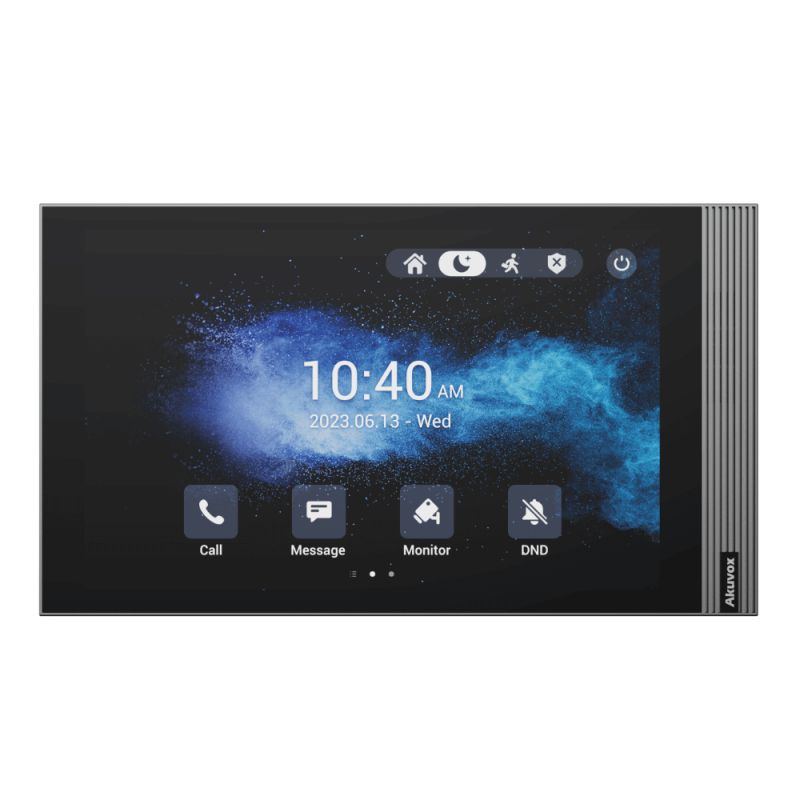

Akuvox - S563W-S Surface Indoor Console

Introduction

The Akuvox S563W-S is an 8-inch SIP indoor monitor designed for surface installation. Running on Android 12, it offers a high-quality speaker and high-resolution touchscreen, ensuring an optimal audio-visual intercom experience. It also features Wi-Fi and Bluetooth connectivity for easy integration into smart home systems.

Ideal for Surface Installation

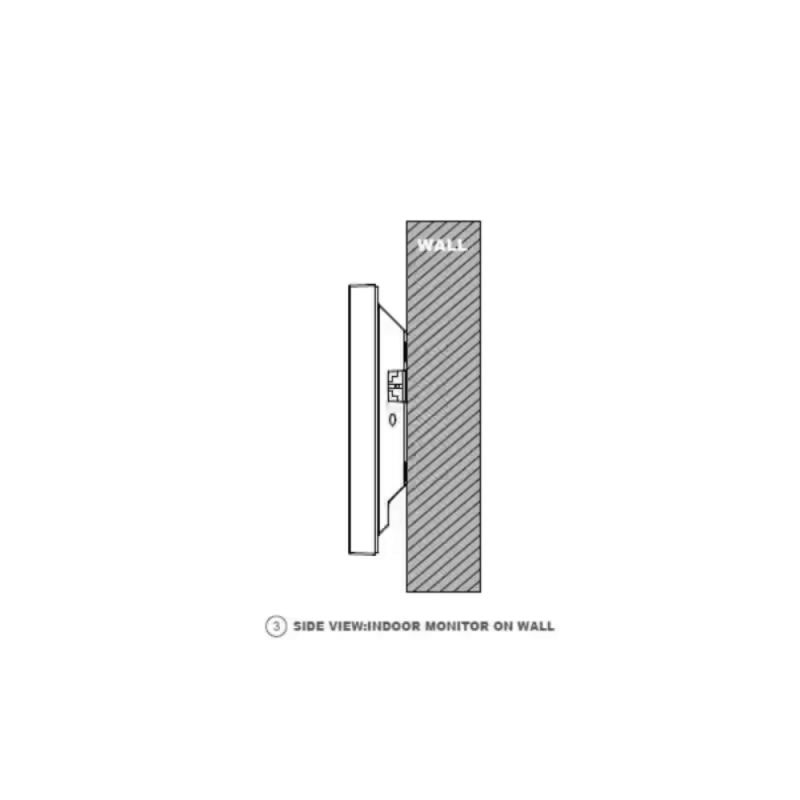

With the positioning of the RJ45 ports on the side, the tablet can be easily wall-mounted without the need for an embedded box.

Smart Living with Android 12 OS

The Android 12 operating system of the Akuvox S563W-S allows seamless integration of third-party applications, transforming the device into a smart living hub. A smart home app, for example, can be installed to manage security, lighting, etc. A screen for multiple uses.

8-Inch Screen and Minimalist Elegance

With its large 8-inch screen and sleek design, the S563W-S fits perfectly into any indoor environment. Its clean lines and modern appearance add an aesthetic touch to your space.

Superior Audio and Video Quality

Thanks to the front speaker and screen resolution of 1280 x 800, you benefit from realistic audio and video quality to identify your visitors and communicate clearly.

Voice Changing Feature for Security

The voice changing feature helps protect the identity of residents, offering an additional level of security and comfort.

Technical Specifications

General

• Front Panel: Plastic
• RAM / ROM: 2GB / 8GB
• Screen: 8-inch IPS LCD, capacitive touchscreen
• RS485 Port: Supported
• Relay Output: 1
• Bell in: 1
• Alarm Input: 8
• Microphone: Microphone, -26dB
• Speaker: 1 Speaker, 4Ω / 2W
• Ethernet Ports: 1xRJ45, 10/100Mbps adaptive
• PoE: 802.3af
• 12V DC Connector (if PoE not used)
• Anti-Tamper Resistance: Supported
• Installation: Wall mount or desktop
• Dimensions: 216.2 x 124.4 x 22.1 mm
• Operating Humidity: 10~90%
• Operating Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C ~ +70°C

Touchscreen

• Display Mode: Normally black, transmissive
• Size: 8 inches (diagonal)
• Aspect Ratio: 16:10
• Resolution: 1280x800
• Contrast: 1200:1
• Luminance: 310 cd/m²
• Viewing Angle: 80° left/right, 80° up/down
• Touchscreen: Projected capacitive

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband Audio Codec: G.711a, G.711μ, G.729
• Wideband Audio Codec: G.722
• DTMF: in-band, out-of-band (RFC2833), SIP Info
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Automatic Gain Control

Video

• Streaming Format: H.263 & H.264

Network and Protocol

• Protocol Support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and Maintenance

• Auto-provisioning
• Web Management Portal
• Web-based Packet Dump
• Configuration Backup / Restore
• Firmware Upgrade
• System Logs, including door access

Voice Commands

• Pickup Distance: up to 5 meters
• Voice Recognition Accuracy: up to 95%
• Privacy Protection with Native Voice Data
• Support for English

Note: To install applications, APK downloads are necessary. Some Android applications may not work, particularly those requiring Google Play services.
