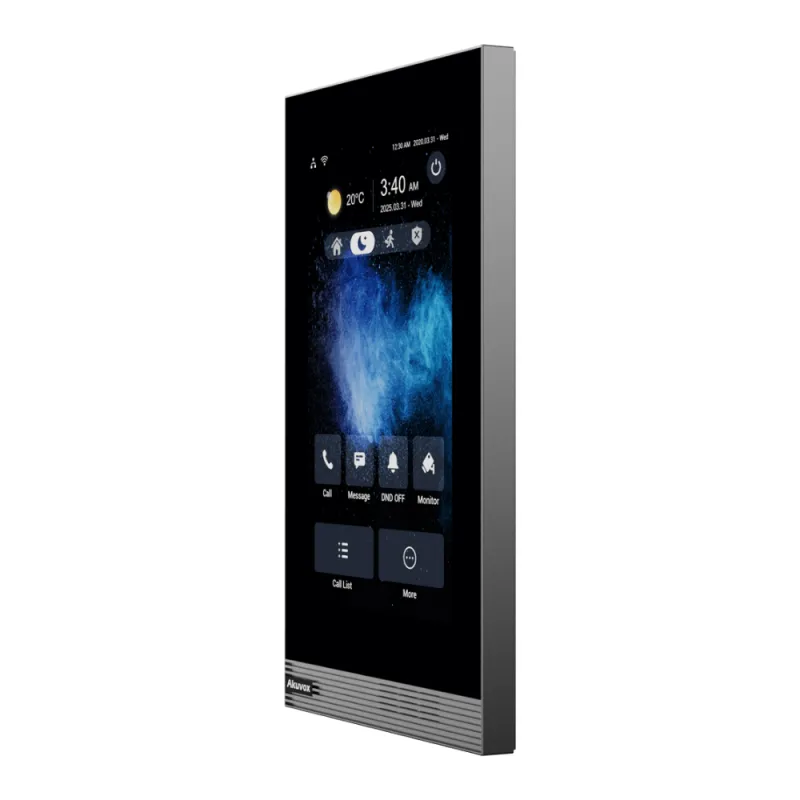

Akuvox S562W-V - SIP indoor console with 7" touchscreen, Wi-Fi, Linux, Vertical mounting version

TheAkuvox S562W-V runs on a Linux operating system and is equipped with wifi. Using the SIP 2.0 protocol, the S562W-V also provides audio + video communication with door phones. With its minimalist design, it blends in well with any modern interior environment.

With its space-saving 7" capacitive touchscreen, the S562W-V offers an unbeatable value-for-money touch experience while bringing comfort and security to the home.
The Akuvox S562W-V indoor display is ideal for integration into access control and smart home systems in shared housing and multi-unit buildings.

Designed for vertical installation

This version is specially designed for vertical mounting, ideal for adapting to small spaces.

Display the video stream from your security cameras on screen Akuvox

Your Akuvox S562-S tablet can of course display the video stream from your Akuvox door entry system to communicate with your visitors and see what's going on outside, but you can also add the video stream from your IP security cameras. How convenient!

TECHNICAL SPECIFICATIONS

Physics and power supply

• Front panel : Plastic
• RAM / ROM: 128MB / 128MB
• Display: 7-inch TFT LCD 1024x600 resolution
• Screen: 7-inch capacitive touchscreen
• Wi-Fi: IEEE802.11 b/g/n, @ 2.4GHz
• RS485 port: Supported
• Relay output: 1
• Bell input: 1
• I/O: 8
• Microphone: -42dB
• Speaker: 4Ω / 2W
• Ethernet ports: 2xRJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC connector (if PoE is not used)
• Installation: Wall and desk mounting (optional desk stand available)
• Dimensions : 216.4x118.8x21.7mm
• Operating humidity: 10~90%
• Operating temperature : -10°C ~ +45°C (14°F ~ 113°F)
• Storage temperature: -20°C ~ +70°C

Touch screen

• Display mode: Normally white, transmissive
• LCD screen size: 7 inches (diagonal)
• Resolution: 1024x600
• Contrast ratio: 600:1
• Luminance: 250 cd/m
• Viewing angle: 50° left, 50° right, 40° up, 50° down
• Touch screen: projected capacitive

• Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Wideband audio codec: G.722
• DTMF: Out-of-band DTMF (RFC2833), SIP Info
• Echo cancellation

Video

• Streaming formats: H.264
• Networking
• Supported protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment and maintenance

• Self-provisioning
• Web-based management portal
• Web-based packet dumping
• Configuration backup/restore
• Firmware update
• System logs (including door access logs)

Application scenarios

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors
