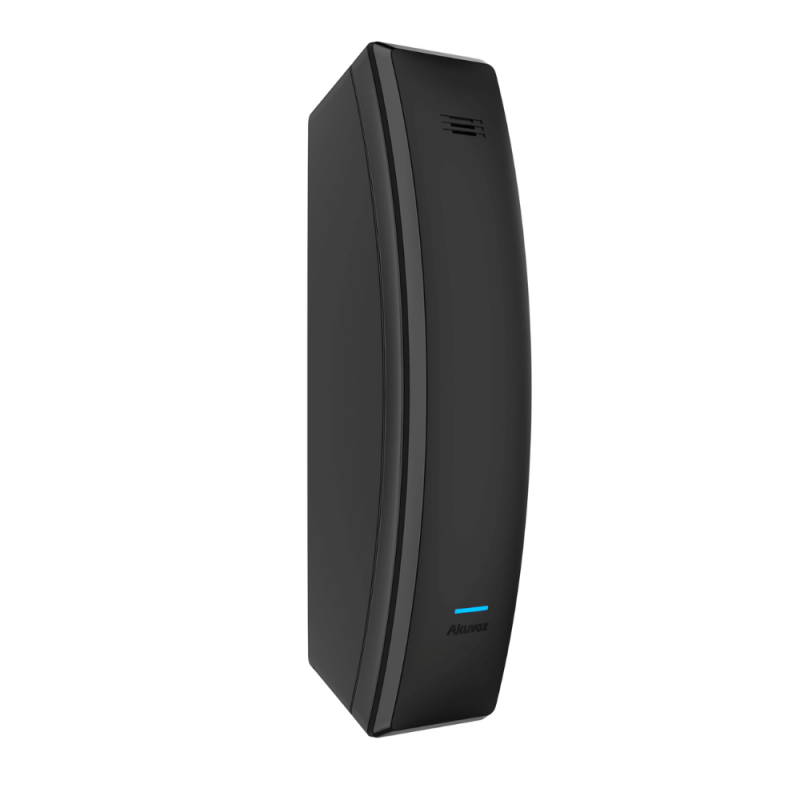

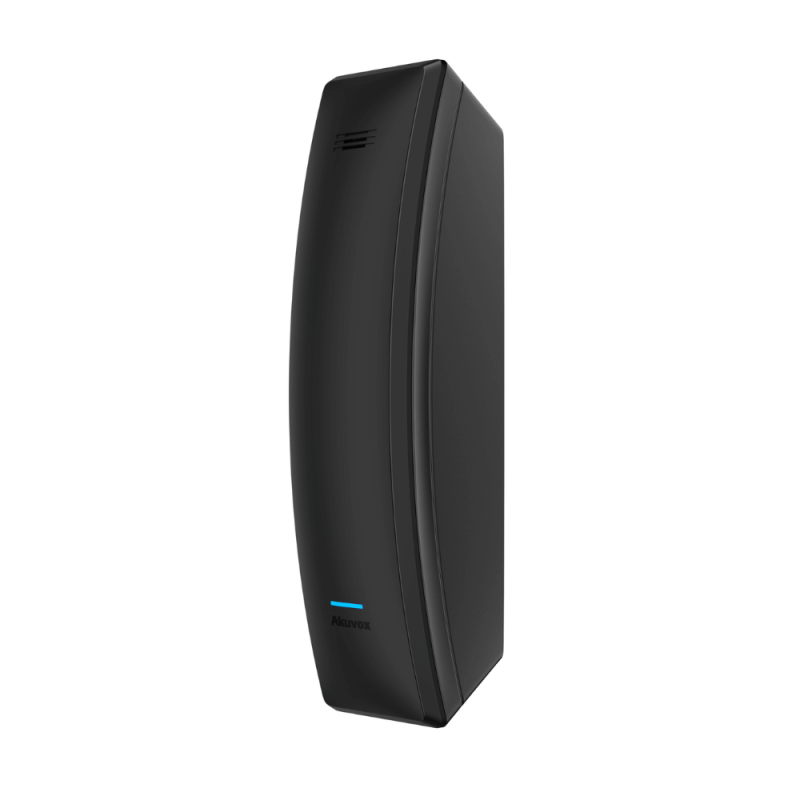

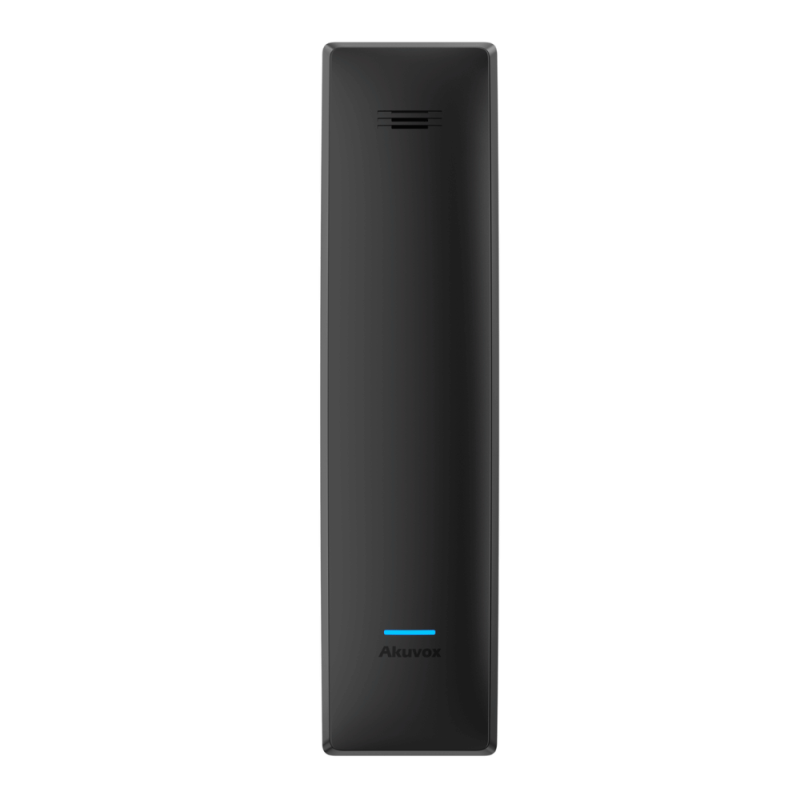

Akuvox - Intercom handset (Akuvox S560)
The Akuvox S560 is a handset intercom based on the SIP protocol. It supports basic intercom functions such as intercom calls and door release, and can be wall-mounted or placed on a desk. Its compact, minimalist design makes it an ideal choice for small spaces.
Enhance your intercom and access control with the Akuvox S560, a cost-effective intercom handset designed for spaces requiring a simple audio device to communicate with visitors and manage door access.
Main Features
Basic IP Connectivity: The Akuvox S560 serves as a basic IP indoor station, providing reliable audio communication for entry door communication.

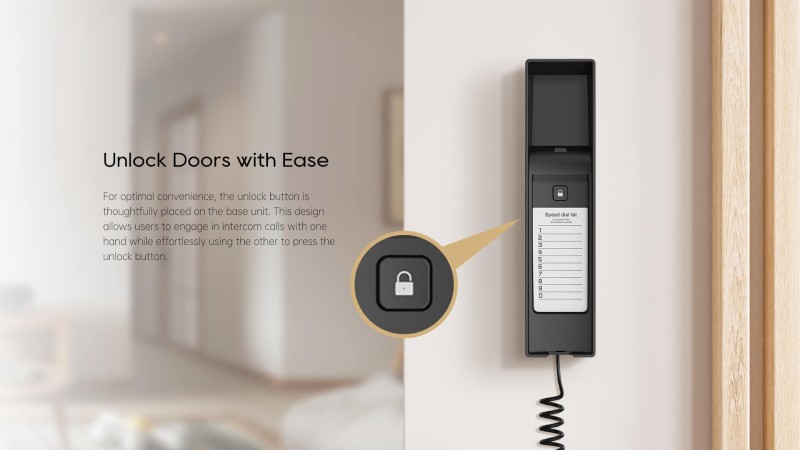

Door Access Button: With a dedicated button for effortless door opening, the Akuvox S560 ensures seamless entry for visitors/authorized individuals.
Versatile Placement: Whether wall-mounted or placed on a table, the Akuvox S560 handset offers great installation flexibility and adapts to your space requirements.
Basic Intercom Solution: If you are looking for a simple yet effective solution to communicate with visitors and control door access, the Akuvox S560 is the ideal choice.
TECHNICAL SPECIFICATIONS
Overview

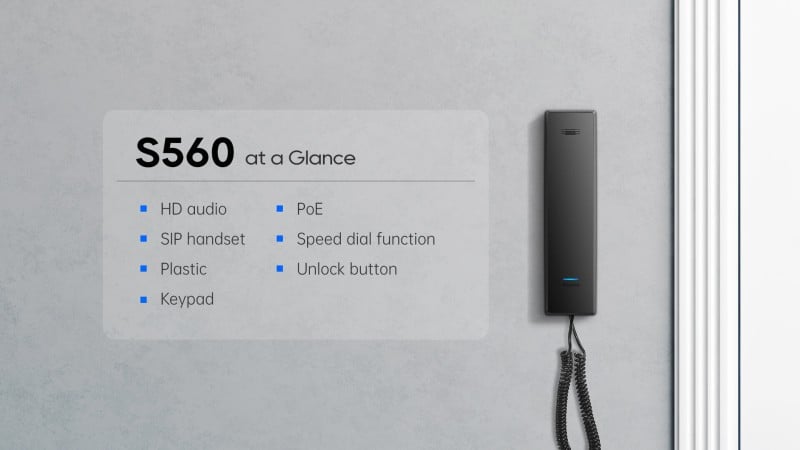

- Key Features of the Akuvox S560
- SIP Wall Phone
- HD Audio
- Power-over-Ethernet (PoE)
- Akuvox Cloud Support
Features of the Akuvox S560
- Akuvox Cloud and Akuvox Property Manager Support
- Smart Plus Mobile App

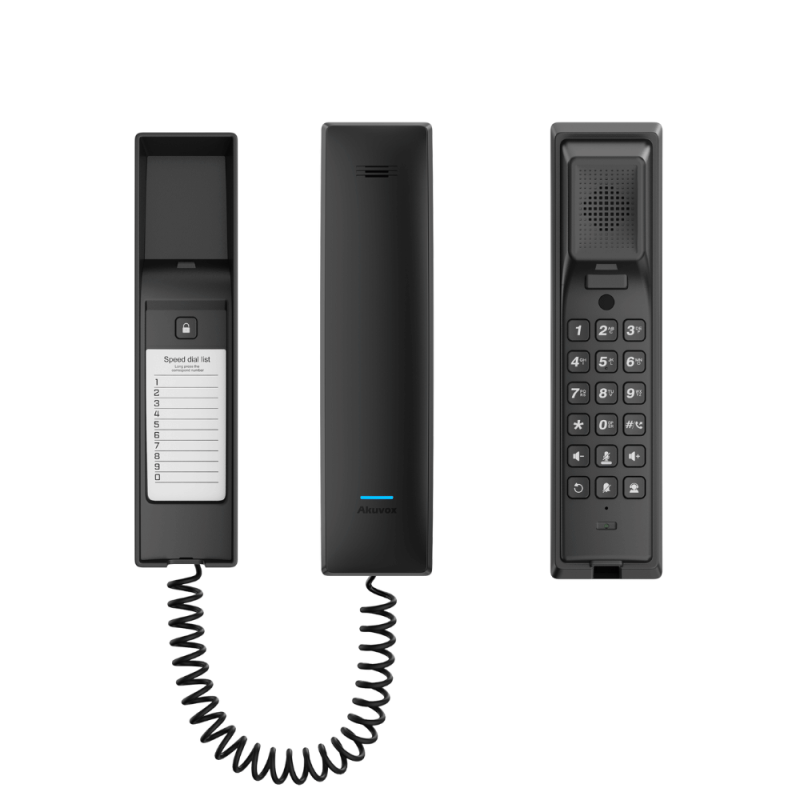

- Numeric Keypad
- Ethernet Ports: 1x RJ45, adaptive 10/100 Mbps
- 802.3 af Power-over-Ethernet
- DC 12 V Connector (if not using PoE)

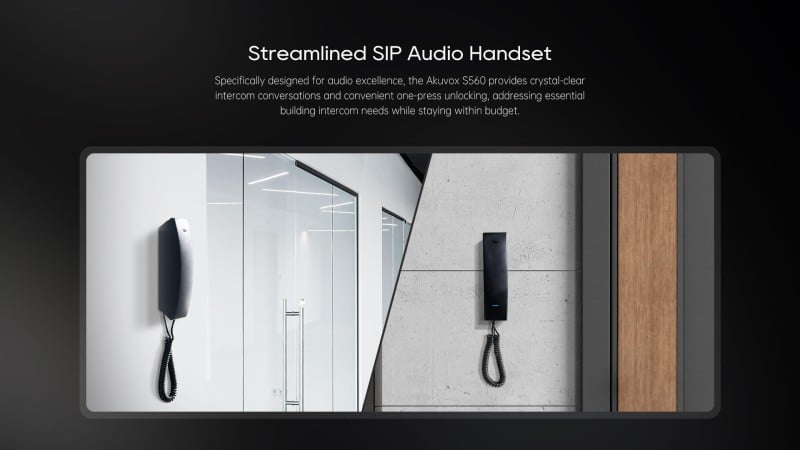

- Installation: Wall-mounted or Tabletop
- Operating Humidity: 10 ~ 90%
- Operating Temperature: -10 °C ~ +45 °C
Audio
- Narrowband Audio Codec: G.711a, G.711 & mu, G.729
- Wideband Audio Codec: G.722
- DTMF: Inband, Outband, DTMF (RFC2833), SIP Information
- Acoustic Echo Cancellation
- Voice Recognition
- Comfort Noise Generation
- Local Network and Management
- Static IP Address or DHCP
- NTP Server for Time Setting
- Supported Protocols: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
- Auto Provisioning: FTP / TFTP / HTTPS / PnP
- Configuration: Web Control, Touchscreen LCD, or Auto Provisioning
- Wi-Fi: IEEE802.11 b/g/n, 2.4 GHz Frequency
SIP
- SIP v1 (RFC2543)
- SIP v2 (RFC3261)
- 2 SIP Accounts
Other Features
- Color: Black or White (selectable)
- Material: Plastic
- SIP Accounts: 2 SIP Accounts

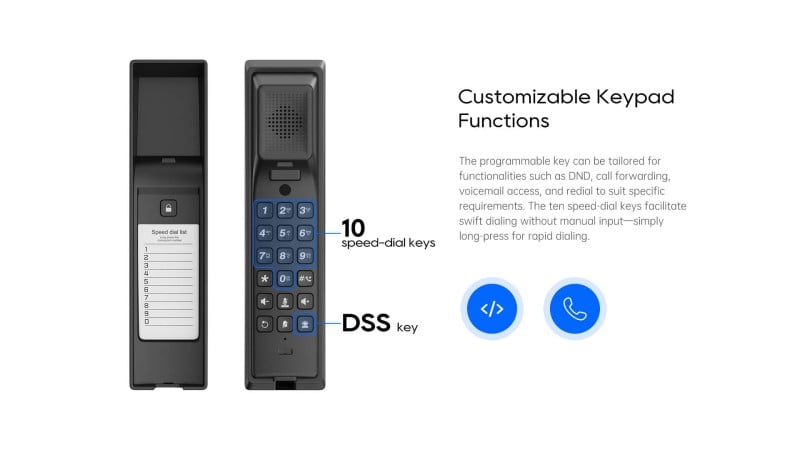

- Speed Dial: 10 for One-Touch Access
- DSS Key: Yes, programmable
- Function Key: Volume Control, Answer, Hold
- Volume Adjuster: Yes (Increase/Decrease/Mute)
- Status Indicator: Yes (Dual-tone LED)
- Handset and Speaker Mode: Yes
- Call Log: Maximum 600 Entries (Incoming/Outgoing/Missed)
- Acoustic Echo Cancellation (AEC)
- Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Background Noise Estimation (BNE)
- Sound Pressure Level (NR)
- Packet Loss Concealment (PLC)
- Built-in Update: Yes
- IP Mode: IPv4/IPv6/IPv4 and IPv6
- Protocols: SIP2.0 via UDP/TCP/TLS,
- RTP/RTCP/SRTP, STUN, DHCP, IPv6, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-06
- Codec: G.711a/u, G.726, G.729A, iLBC, G.722, Opus
- DTMF: Inband, O-FL, DTMF-Translator (RFC2833) / SIP INFORMATION
- Ethernet: One, 10/100 Mbps Ethernet
- Ethernet (PoE) Power Supply: Yes
- Power Supply: PoE
- Installation for Tabletop or Wall Mounting
- Device Dimensions: 215 x 55.8 x 57.8 mm
- Weight: 0.35 kg
-
