Eutonomy - Adaptater euFIX DIN for Fibaro FGD-212 (without push-buttons)
The euFIX S213NP adapter is used to install the module Fibaro® Switch FGS-213 or FGBHS-213 on a rail of type DIN TH35 in an electrical cabinet.

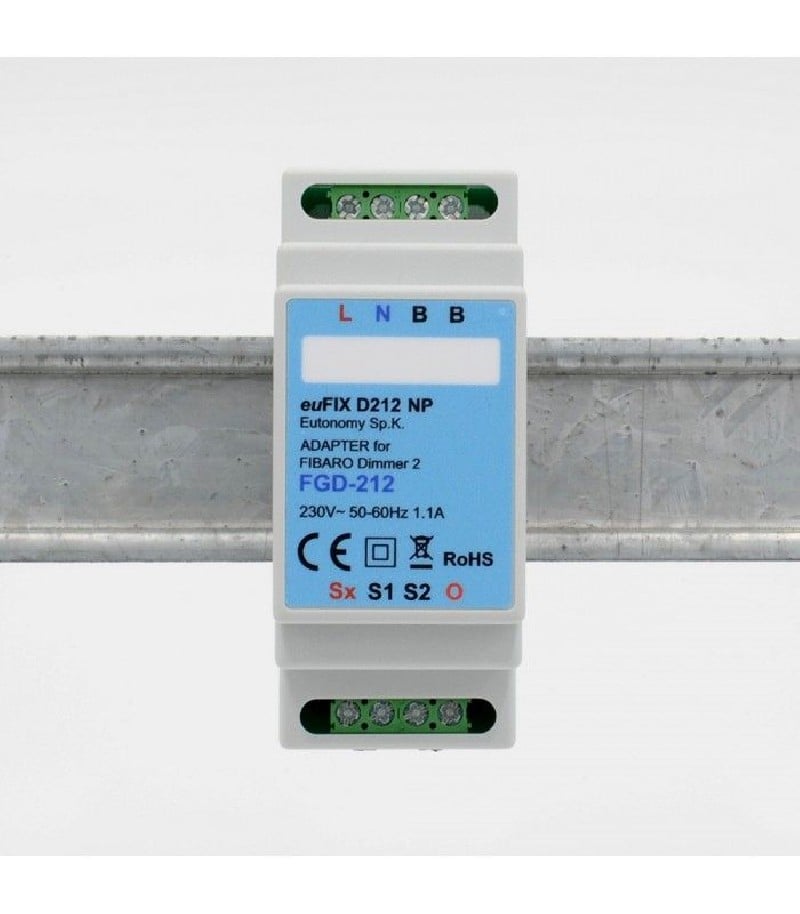

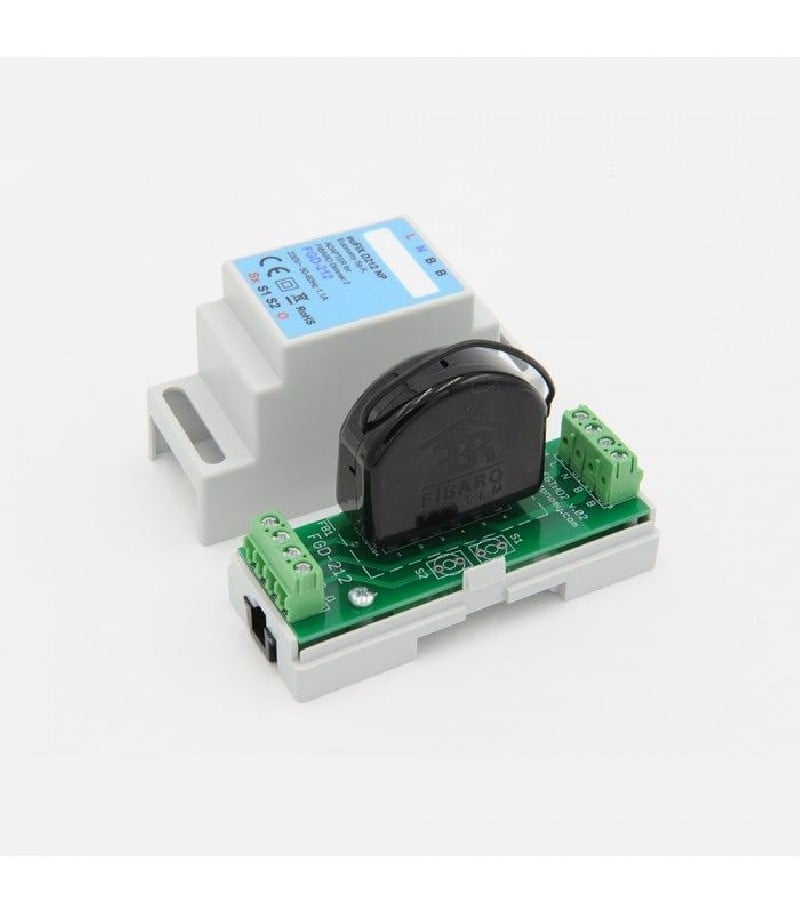

The euFIX D212 adapter is used to install the module Fibaro® Switch FGD-212 on a rail of type DIN TH35 in an electrical cabinet.

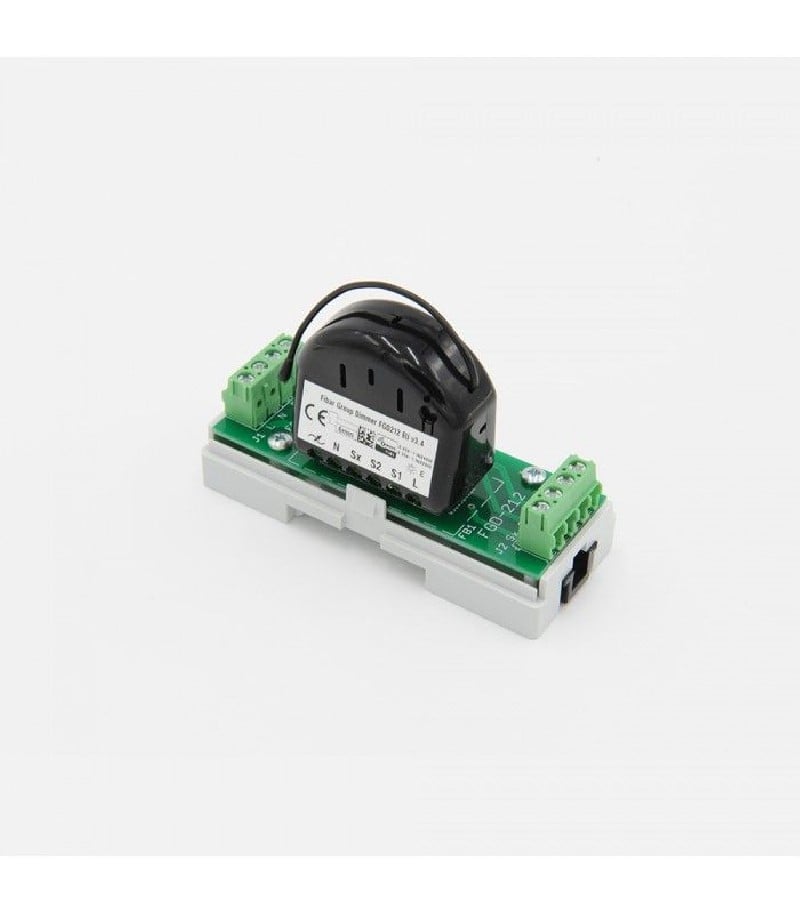

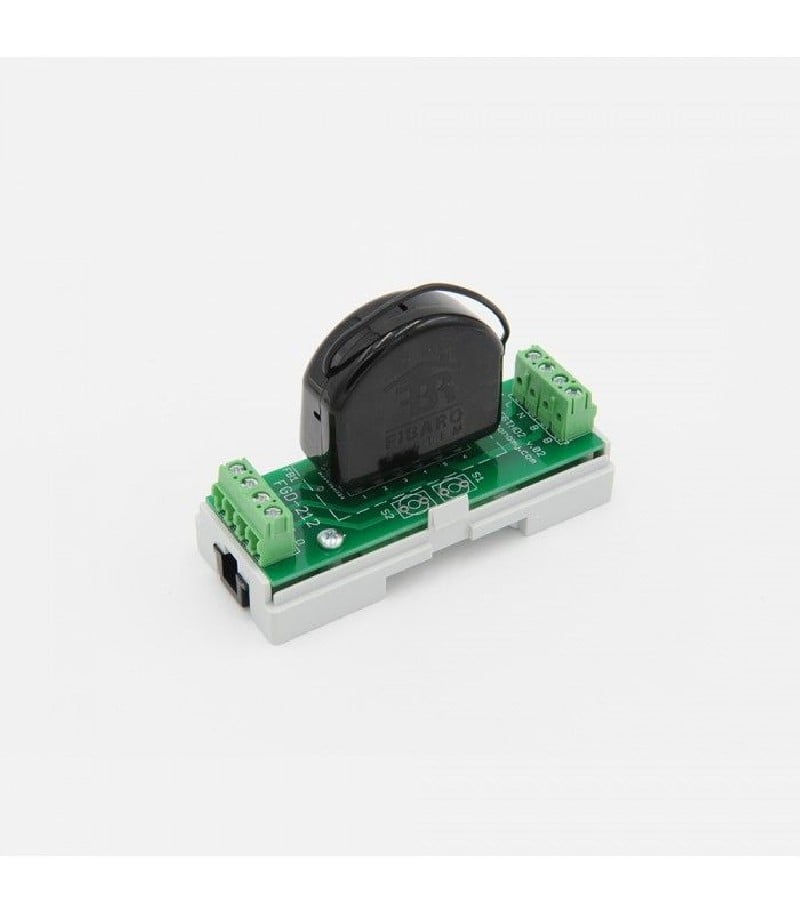

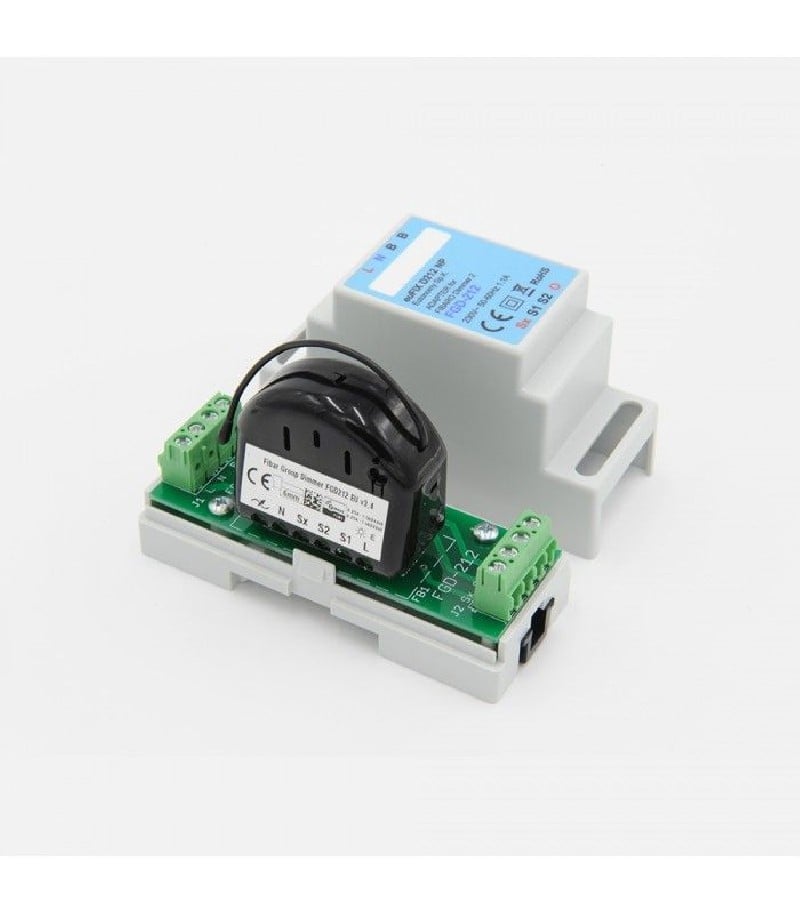

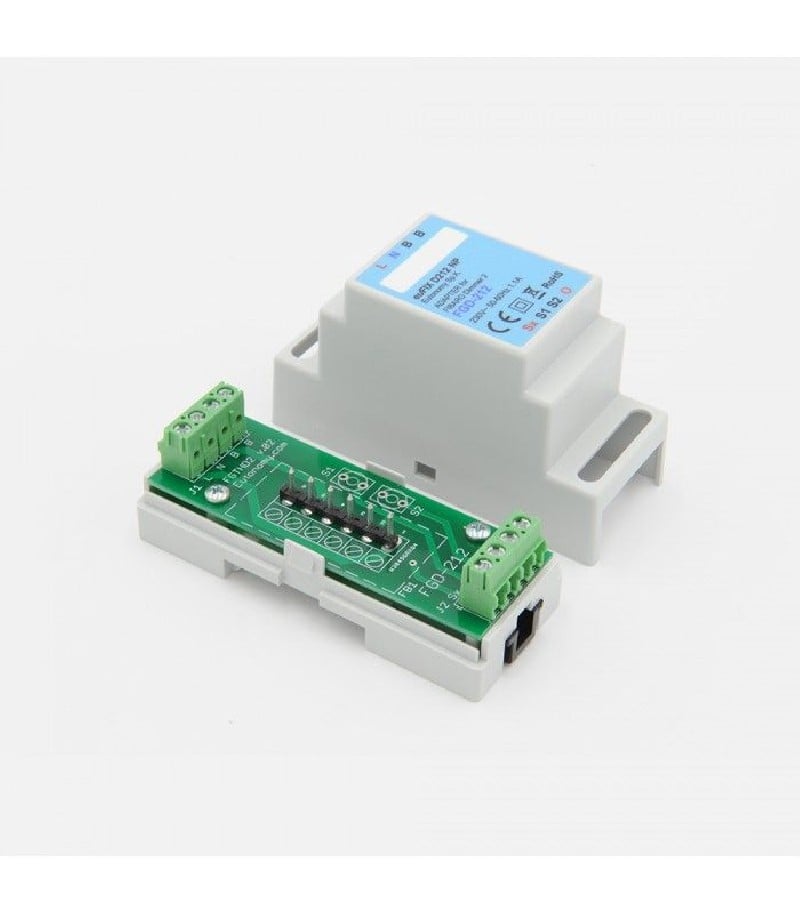

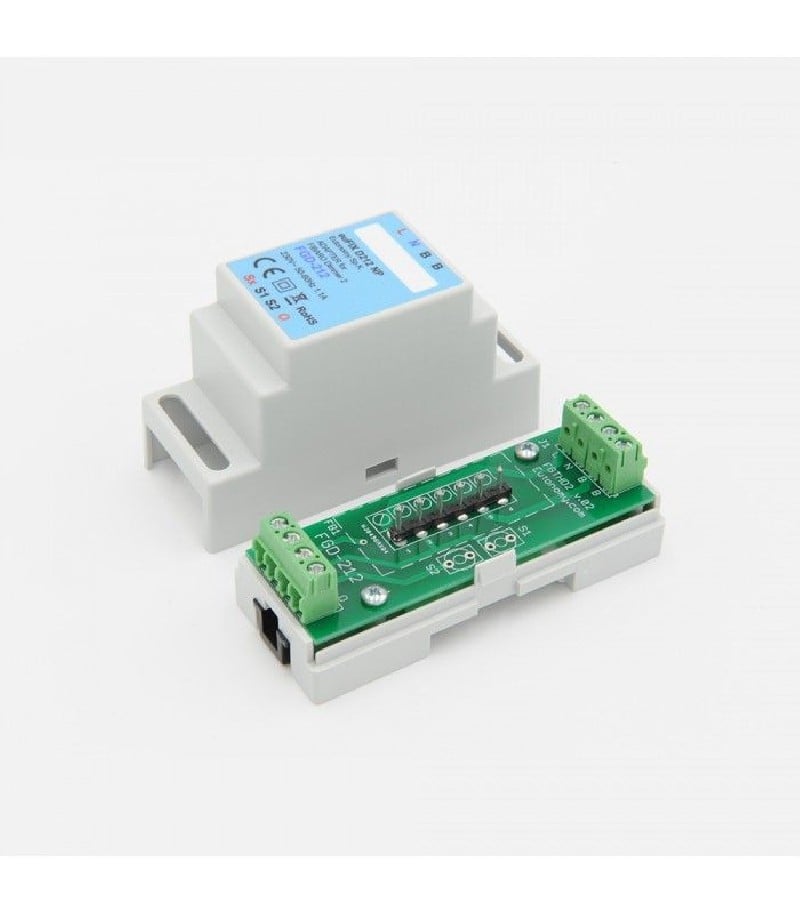

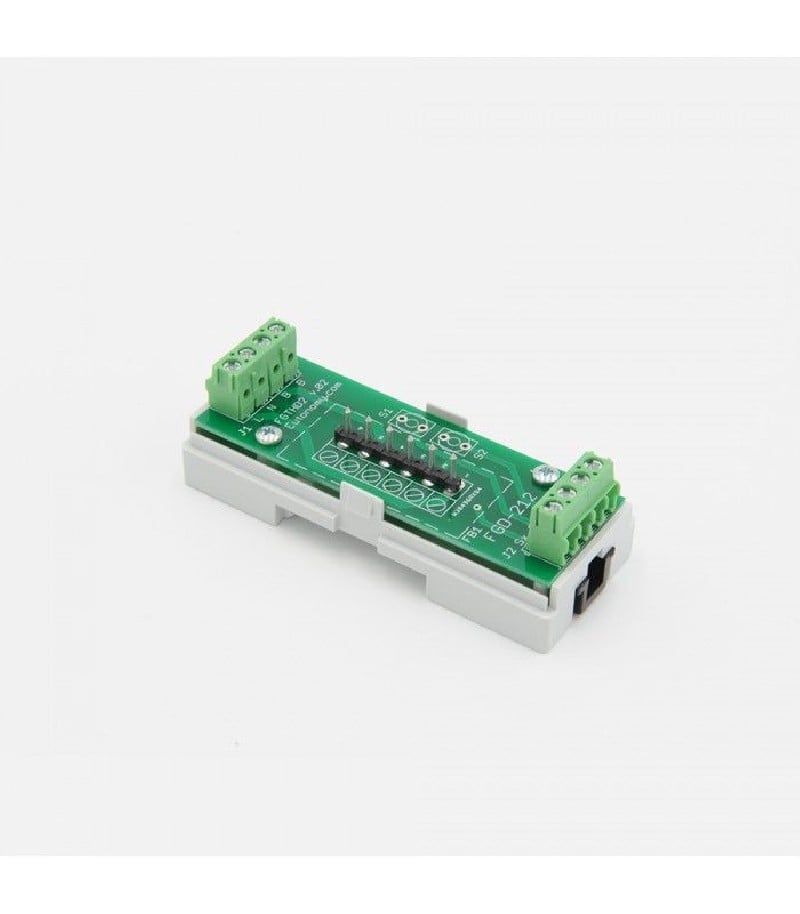

It is composed of a box as well as a circuit board to which the FGD-212 is attached. Its dimensions are adapted for a mounting on a standard rail of type DIN TH35/TS35.

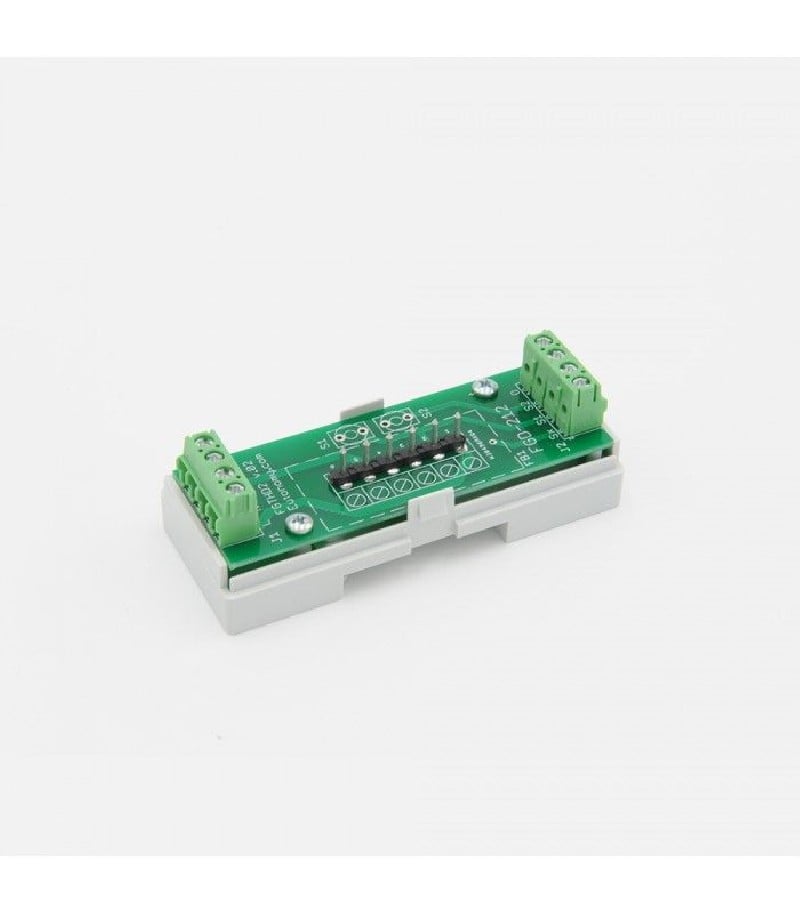

The circuit board contains a set of screw terminals, to which all the wires (power supply, input and output signals, control buttons) can be connected with complete safety.
The Fibaro module is not included and must be bought separately.
Functions
- Adapter used to install the module Fibaro Switch FGD-212 on a rail of type DIN TH35 / TS 35 in an electrical cabinet
- Free slot with label to identify the controlled line
Technical specifications
- Supply voltage: 230 V AC +/- 10%, 50-60Hz
- Load power: max. 8A
- Dimensions: 34.8 x 87.3 x 64.7 mm
- Width in TE units: 2 TE modules
- Conducting wire section: max. 2.5 mm2
- Maximum length of connected wires at inputs Sx, S1, S2: 20m
- Operational temperature: 0° C to + 50° C
- Relative humidity: ≤90%, no condensation
- Directives:
- LVD 2014/35 / CE
- RoHS 2011/65 / UE
Specifications
| Type | Accessory |
|---|
Reviews (1) - Review moderation
Cet adaptateur permet de monter des modules Fibaro dans les tableaux électrique ou dans des coffrets électrique dédiés à la domestique, tout en respectant la norme qui veut qu'aucun appareil ne peut être installé dans un tableau sans être fixé.
-
