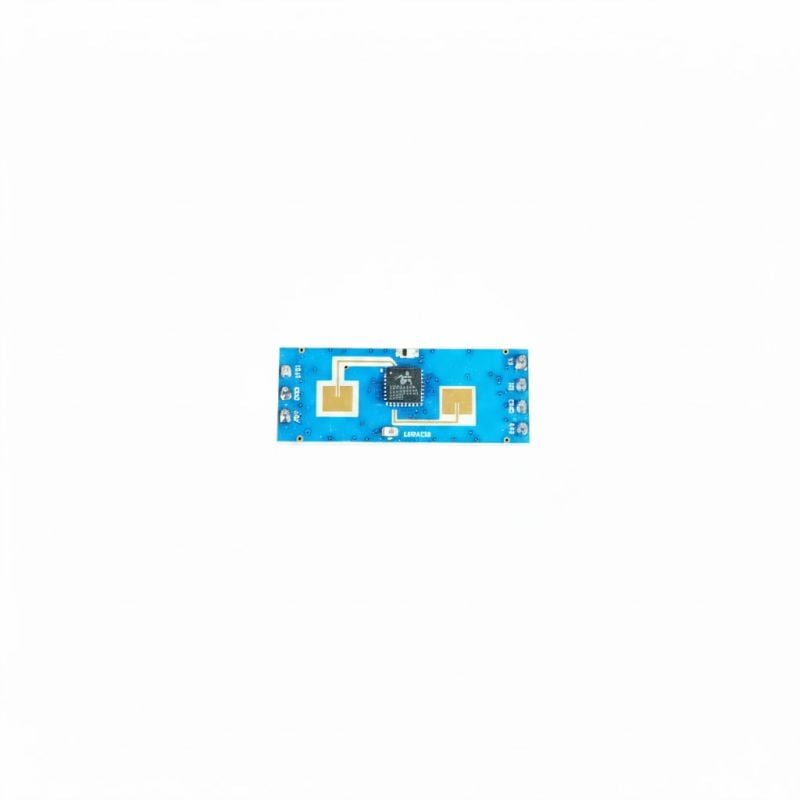

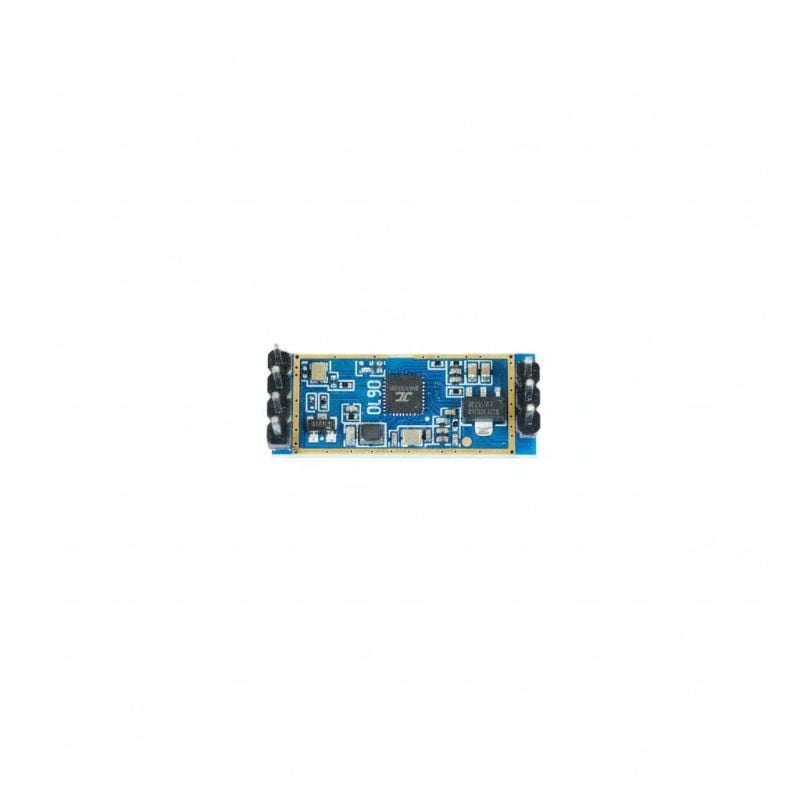

Apollo - mmWave LD2412 sensor

MmWave intelligent sensor APOLLO AUTOMATION LD2412

Revolutionize your smart home with the LD2412 mmWave sensor, the next-generation presence detection solution that goes beyond traditional PIR sensors. Thanks to its advanced millimeter-wave radar technology, this sensor detects not only movement, but also static presence with exceptional accuracy - even when you're standing still.

Imagine lighting that doesn't go out while you're quietly reading, air conditioning that adjusts to your actual presence, or a security system that can detect the slightest human presence. The LD2412 makes it all possible, with outstanding reliability and minimal energy consumption.

MmWave LD2412 sensor functions :

• Presence detection
• Motion detection
• Direction detection
• Basic gesture recognition
• Works in total darkness or full light
• Ability to detect through small obstacles
• Low power consumption
• High sensitivity and low false alarm rate

Features - APO-13370404 APOLLO AUTOMATION :

• Technology: 60 GHz FMCW millimeter radar
• Detection range: up to 9 m
• Field of view: ±75° horizontal (150°) / ±35° vertical (70°)
• Power supply: 3.3 V DC
• Power consumption: typical 80 mW
• Interfaces: UART and I2C
• Dimensions: 25 x 25 x 5 mm
• Operating temperature : -40 °C to +85 °C
• Compact size, robust against environmental noise

Compatibility :

• Various IoT integrations via UART and I2C
