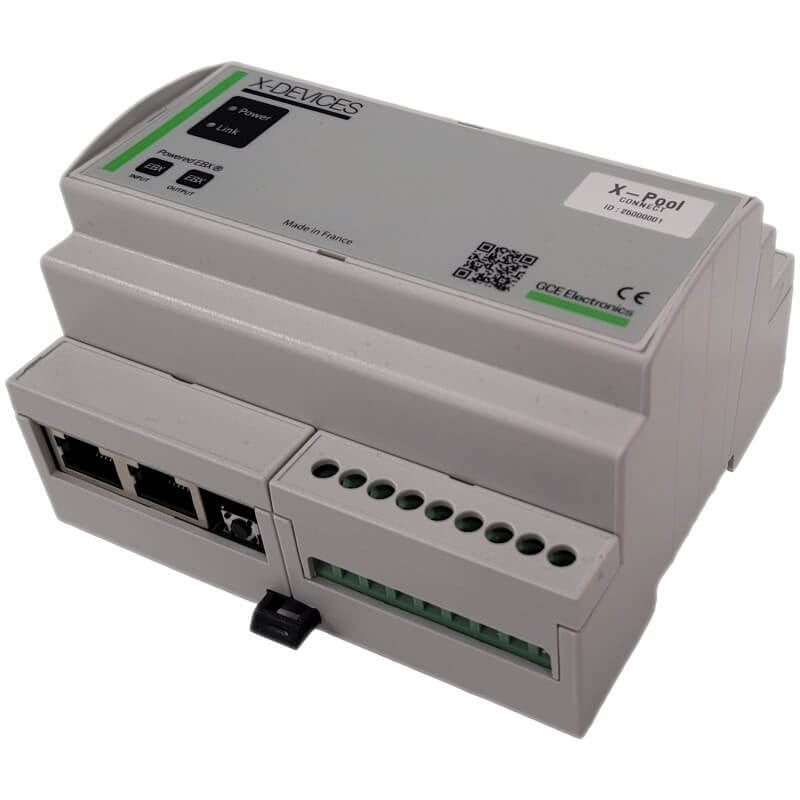

GCE Electronics - X-Pool Connect PH/Redox acquisition and filtration/heating management module for pools

The X-Pool Connect module makes it easy to manage your pool. You will be able to measure important data (PH, Redox, temperature) and control the filtration and heating time.

The X-Pool Connect module is autonomous, its functionalities are accessible from the X-CONNECT mobile application available on Android and iOS.

The X-Pool Connect module is also compatible with the IPX800 V5.

FUNCTIONS

• Increase the capacity of your IPX800 V5
• Monitoring of PH and REDOX levels with alerts when thresholds are exceeded.
• Water and air temperature measurement.
• Automatic adaptation of filtration times
• Heating management with calendar and adjustable heating time.
• Automatic anti-freeze function
• Digital maintenance logbook: Weekly recording of measurements, filtration times and maintenance in a log file.
• DIN rail box for easy integration into your installation
• Product made in France

TECHNICAL CHARACTERISTICS

• 12V continuous power supply (power supply not included) or by EBX Powered ™
• Power on indicator
• Average consumption 500 mW / 1w max
• RJ45 IN extension port for EBX Powered (cable supplied)
• RJ45 OUT extension port for serial extension for IPX800 V5 (cable not supplied)
• 4 normally open relay outputs 250V/16A
• 4 digital inputs
• 1 terminal block input for air temperature sensor (included)
• 3 BNC inputs: PH / Redox / Water temperature
• 3 operating modes for the radio communication module (BLE, OTA and SLEEP)
• Bluetooth Low Energy (or BLE) function for direct control from a smartphone in 2.4 GHz
• Over-The-Air (or OTA) update via 2.4 GHz wireless connection
• Dimensions (L x W in cm): 106.3 x 90.5
