SMLIGHT - USB Ethernet POE Zigbee or Thread + Z-Wave adapter

GENERAL PRESENTATION

The SLZB-MRW10 is a compact and powerful multiprotocol adapter developed by SMLIGHT. It has successfully completed in-house testing and demonstrates stable performance on all supported networks: Zigbee, Thread/Matter, Wi-Fi and Z-Wave (uncertified).

Integration of Three Major Chipsets

The SLZB-MRW10 integrates three separate radio chips:

• CC2674P10 zigbee 3.0, Thread and Matter-over-Thread (up to 400 end devices)
• EFR32ZG23 z-Wave 800 series
• ESP32 wi-Fi and Bluetooth LE

Designed for integration into home automation hubs, bridges and custom automation platforms, the device provides a reliable multiprotocol foundation for the development of next-generation solutions.

KEY FUNCTIONS

Full multiprotocol support

Zigbee 3.0

• Chip: Texas Instruments CC2674P10
• Zigbee2MQTT and ZHA compatible
• Capacity: up to 400 end devices
• TX power: +20 dBm with integrated amplifier
• Ideal for Zigbee networks, also works perfectly with Thread networks

Thread / Matter-over-Thread

• Chip: Texas Instruments CC2674P10
• Support Open Thread Border Router
• Compatible with Matter ecosystem
• Simultaneous or switchable operation for multi-radio environments

Z-Wave 800 Series (Uncertified - Test Only)

• Chip: Silicon Labs EFR32ZG23
• Z-Wave 800 + Long Range support

Wi-Fi and Bluetooth

• Chip: ESP32 dual-core
• Full wireless connectivity
• Integrated Bluetooth LE

Flexible connectivity and power supply

Connections

• USB-C data and power supply (5V DC)
• Ethernet wired network connection
• PoE 802.3af 48V power supply via Ethernet

Energy consumption

• Up to 1.5W maximum (with both radio SoCs active)
• Optimized energy efficiency

SLZB-OS operating system

Compatible with SLZB-OS v2.8.7 and higher

Features included :

• VPN : Secure remote connection
• 20+ languages multilingual interface
• Support scripts : Advanced automation
• Network settings complete configuration
• Security : Authentication and protection
• Dashboard intuitive management interface
• zHub mode centralized hub mode
• Switcher mode easy mode change
• OTA firmware updates : Over-the-air updates
• Management via web interface complete browser-based configuration

Firmware Radio

Support for multiple stacks

• TI Z-Stack compatible (for CC2674P10)
• SL Ember/EZSP stack compatible (for EFR32ZG23)
• Radio firmware update via web interface

Antennas and Radio Performance

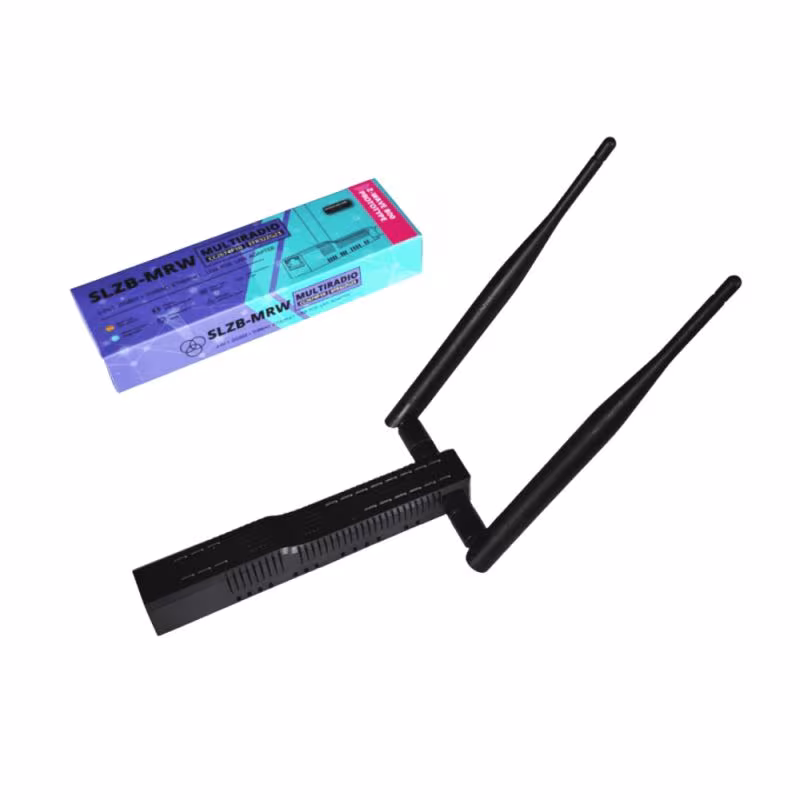

Dual External Antennas

• 2× SMA female connectors (one for each SoC radio)
• 2× pre-packaged high-gain antennas included :
  • 2.4 GHz antenna for Zigbee/Thread
  • 900MHz antenna for Z-Wave (for US, EU and NAZ regions)
• Integrated PCB antenna for Wi-Fi and Bluetooth

Performance

• TX power: +20 dBm with integrated amplifier
• Extended reach for all protocols

Housing and Installation

Compact, durable design

• Ventilated ABS case
• DIN rail and wall-mount compatible
• Easy installation with double-sided adhesive tape
• Easy screw mounting

Package contents

• Screw set included (screw, screwdriver, ruler)
• Complete mounting accessories

LED indicators and controls

6 independent service LEDs

• 2 LEDs for Core SoC (ESP32)
• 2 LEDs for CC2674P10 SoC (Zigbee/Thread)
• 2 LEDs for EFR32ZG23 SoC (Z-Wave)

Multibutton

• Support for multiple functions
• Mode change
• Reset
• Other configurable functions

TECHNICAL DATA

Radio chips

Texas Instruments CC2674P10 (Zigbee / Thread)

• Zigbee 3.0 support
• Thread and Matter-over-Thread
• Up to 400 end devices
• TX power: +20 dBm with integrated PA
• Zigbee2MQTT and ZHA compatible

Silicon Labs EFR32ZG23 (Z-Wave - Uncertified)

• Z-Wave 800 series
• Long Range support

ESP32 (Wi-Fi / Bluetooth)

• Dual-core processor
• Wi-Fi IEEE 802.11 b/g/n
• Integrated Bluetooth LE

Supported protocols

In Production

• Zigbee 3.0 (Zigbee2MQTT, ZHA)
• Thread / Matter-over-Thread
• Wi-Fi (IEEE 802.11 b/g/n)
• Bluetooth LE

In Test (Not Certified)

• Z-Wave 800 (evaluation only, not for commercial use)

Operating modes

• Simultaneous operation of multiple protocols
• Switchable mode change

Connectivity

Available interfaces

• USB-C: Data and 5V DC power supply
• Ethernet: RJ45 wired network connection
• PoE: IEEE 802.3af, 48V

Power supply

Power supply options

• 48V PoE (802.3af standard)
• USB-C 5V DC
• Maximum power consumption: 1.5W (two active radio SoCs)

Antennas

Connectors and antennas supplied

• 2× SMA female connectors (external)
• 1× 2.4 GHz high-gain antenna for Zigbee/Thread (included)
• 1× 900 MHz antenna for Z-Wave, US/EU/NAZ regions (included)
• Integrated PCB antenna for Wi-Fi and Bluetooth

Operating system and firmware

SLZB-OS

• Compatible version : v2.8.7 and higher
• OTA updates via web interface
• Multilingual web interface (20+ languages)

Firmware Radio

• TI Z-Stack (for CC2674P10)
• SL Ember/EZSP stack (for EFR32ZG23)
• Update via web interface

SLZB-OS features

• Integrated VPN
• Scripting support
• Advanced network configuration
• Security and authentication
• Dashboard management
• zHub mode
• Switcher mode
• Backup and restoration

Indicators and Controls

Status LEDs

• 6 LEDs in total (2 per SoC)
• 2 LEDs for Core SoC (ESP32)
• 2 LEDs for CC2674P10 (Zigbee/Thread)
• 2 LEDs for EFR32ZG23 (Z-Wave)

Multifunction button

• Mode change
• Reset
• Multiple configurable functions

Housing and mounting

Case features

• Material: durable ABS
• Integrated ventilation
• Compact design

Mounting options

• DIN rail compatible
• Wall mounting
• Double-sided adhesive tape
• Screw mounting (kit included)

Accessories Included

• Complete screw set
• Screwdriver
• Rule
• Adhesive strips

COMPATIBILITY

Supported platforms

• Home Assistant (ZHA, Zigbee2MQTT, Open Thread Border Router)
• Zigbee2MQTT (native support)
• ZHA (full integration)
• Matter (via Thread Border Router)
• Open Thread Border Router

Available operating modes

• Zigbee 3.0 Coordinator
• Thread Border Router
• Matter-over-Thread
• Z-Wave (uncertified test only)
• Simultaneous or switchable operation depending on configuration
