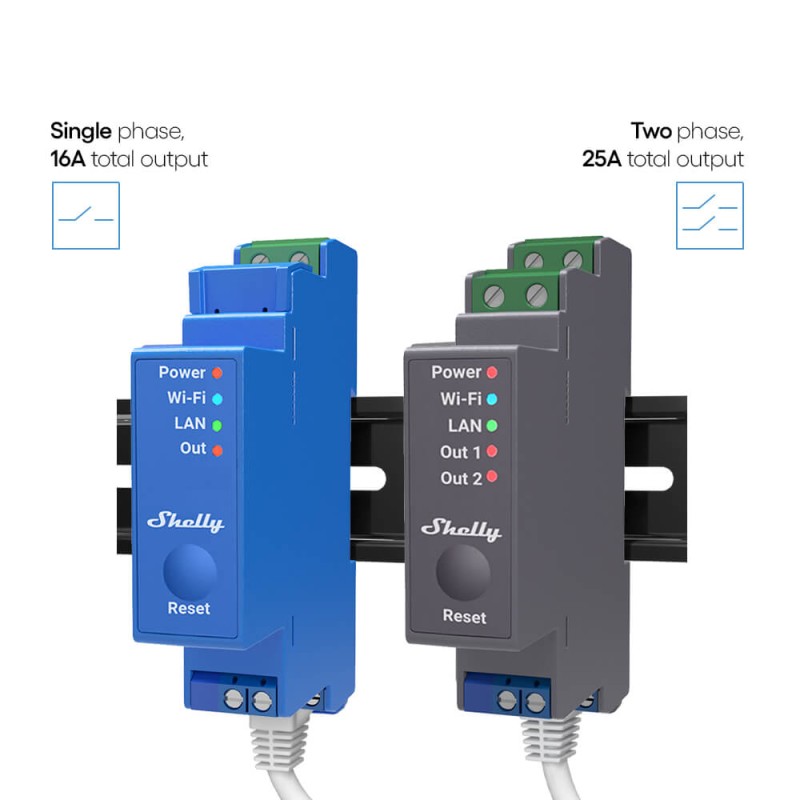

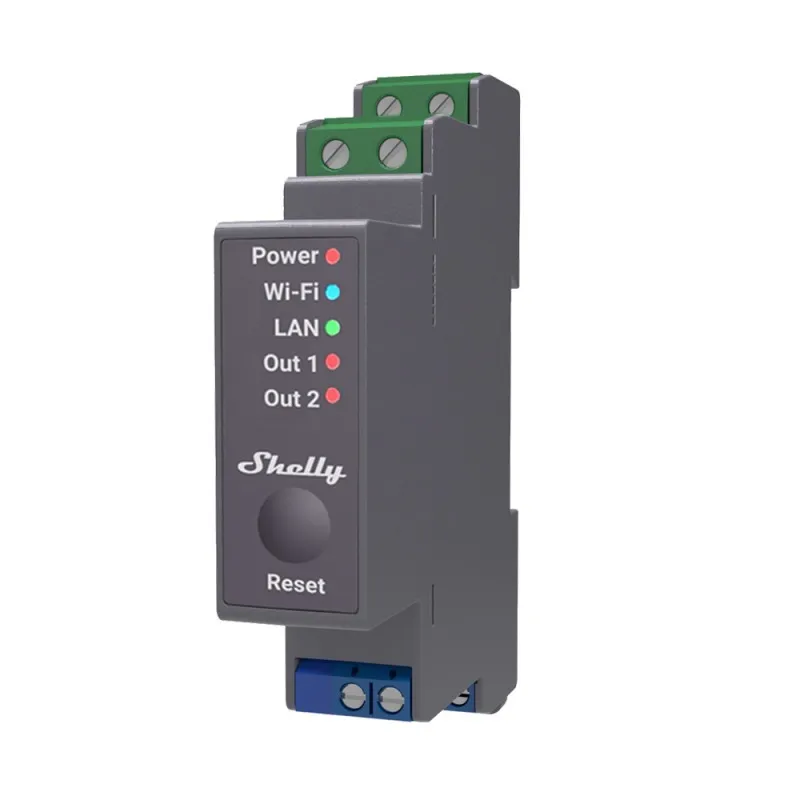

SHELLY - 2-channel Wi-Fi DIN Rail Module (Shelly PRO 2)

Shelly Pro 2 has two phases and 2 channels, supporting up to 25A. It is equipped with potential-free outputs (dry contacts), offering great flexibility in voltage support and a wide variety of home automation possibilities.
Shelly Pro 2 is enhanced with scripting features, allowing users to set custom automation scenes based on various events such as weather forecasts, wind force forecasts, and more.
Enjoy easy automation of the office, home and facilities!

The Shelly Pro 2 is installed on a DIN rail inside an electrical panel. It incorporates enhanced security features and is compatible with the most widely used home automation platforms.

Wide variety of device controls

Suitable for garage doors, lights and appliances on different phases, pumps, heaters, irrigation and many more

Dry contacts

Use a wide range of output voltage levels. Supports low voltages.

Mobile app control

Turn devices on/off directly from your smartphone or tablet.

Wi-Fi and LAN connection

LAN connection for high security and evaluableability. Simultaneous use of Wi-Fi and LAN, as backup when needed.

Bluetooth

Add devices quickly and easily via Bluetooth connection, using the Shelly Cloud app.

Editing to the board

The Shelly Pro 2 is installed inside the electrical panel and is designed to meet the global standardization of DIN rail. This makes it suitable for all types of buildings and guarantees easy installation without any additional components needed.

Compatible with voice assistants

Control your device with your voice. Shelly Pro 2 is compatible with Google Home and Amazon Echo.

Weekly calendar

Create custom daily programs for your devices.

Follows sunlight

Shelly Pro 2 can automatically turn on/off depending on sunrise and sunset times.

Free Cloud

All you need to manage your Shelly Pro 2 is a smartphone and the free mobile app Shelly Cloud.

Countdown

Don't forget to turn off your devices. The built-in countdown can automatically turn off your oven after an hour for example.

DUTIES

• LAN, Wi-Fi and Bluetooth connection
• 2 outputs, 16A each. Maximum total capacity of 25A
• Dry contacts
• Din rail mountable
• LED indicator lights for quick device status check
• Extremely fast processor – ESP32
• Enhanced safety - Protection against overload, overvoltage and overheating
• Enhanced Security - Support for MQTT and WSS, support for TLS and custom certificates
• Improved API interface
• Can be controlled by an external button/switch
• Compatible with Google Home and Amazon Echo

TECHNICAL CHARACTERISTICS

• Power Supply: 110-240V ± 10% AC 50/60Hz
• Number of channels: 2
• Maximum load per channel: 16A
• Total maximum load: 25A
• Power Consumption: <4 W
• Radio signal strength: 1mW
• Wireless Protocol / WiFi: 802.11 b/g/n (2.4 GHz)
• Frequency: 2412 - 2484 MHz
• Operating range (depending on local construction):
• up to 50 m outdoors
• up to 30 m indoors
• Operating Temperature: 0 - 40°C
• Dimensions (H x W x D): 18.5 mm x 89.5 mm x 68.5 mm
