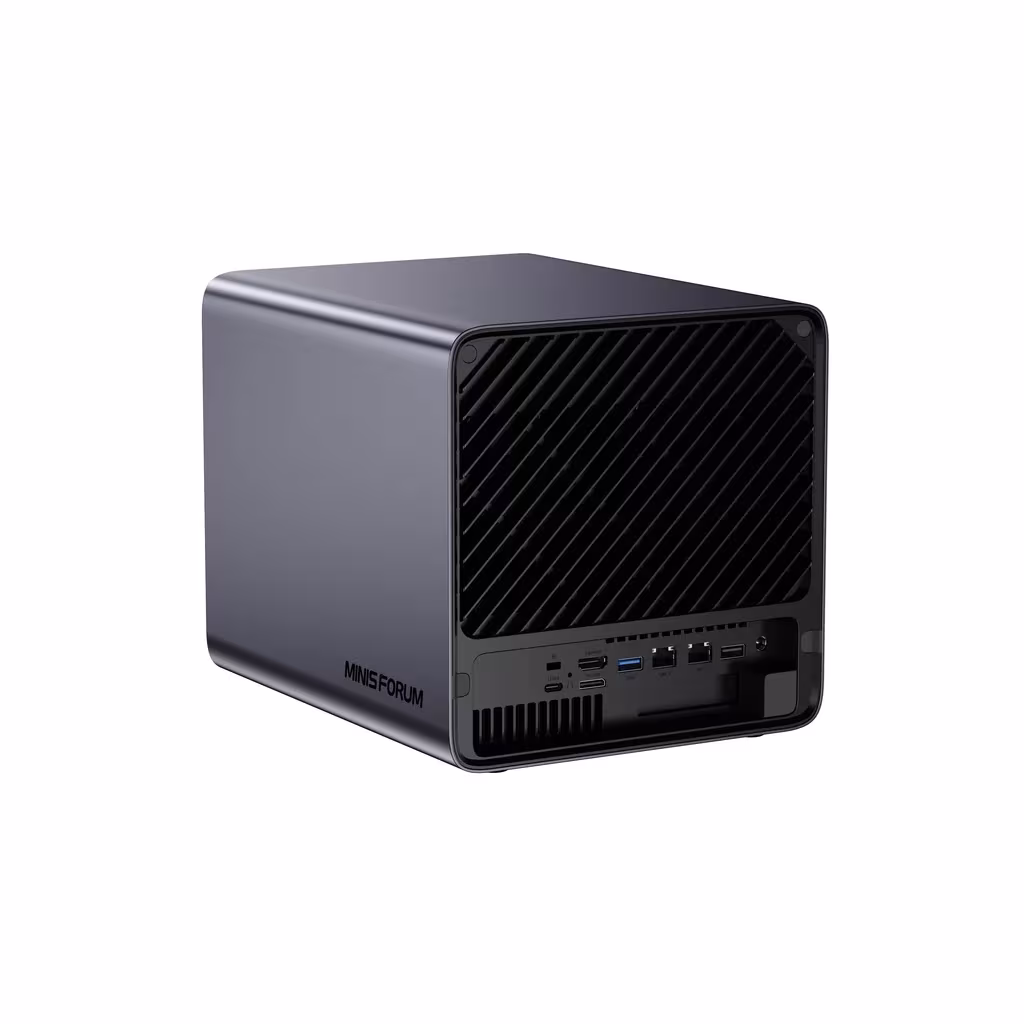

MINISFORUM N5 PRO - NAS AI with 96GB DDR5 ECC RAM

GENERAL PRESENTATION

Visit Minisforum N5 PRO redefines network storage standards by combining the performance of a compact workstation with the flexibility of a professional NAS. Powered by the latest-generation AMD Ryzen AI 9 HX PRO 370 processor (Zen 5 architecture), this system integrates local artificial intelligence with a 50 TOPS NPU, accelerating video analysis, transcription and data processing tasks without burdening the CPU.

With up to 96GB of DDR5 ECC memory, the N5 PRO guarantees the integrity of your critical data thanks to automatic error correction. Its storage capacity of up to 144TB makes it the ideal solution for SMEs, content creators, audiovisual professionals and environments requiring virtualization and Docker containers.

Winner of the "Storage Technology Innovation Award" at IFA 2025, the N5 PRO stands out for its innovative modular design, ultra-fast connectivity (10GbE + 5GbE), and exceptional versatility: NAS, multimedia server, IA station, or virtualization platform.

KEY FUNCTIONS

Professional computing power

• AMD Ryzen AI 9 HX PRO 370 processor 12 cores / 24 threads, boost frequency up to 5.1 GHz
• Integrated NPU 50 TOPS of local AI power for real-time video analysis, image recognition and intelligent processing
• GPU AMD Radeon 890M 4K H.265/AV1 hardware transcoding at 120 FPS, ideal for media servers

Memory and Data Integrity

• 96GB DDR5-5600 ECC : Error-correction memory for maximum reliability in professional environments
• DDR5 architecture 75% more bandwidth than DDR4, optimal for ZFS, virtual machines and multi-user access

Ultra-flexible hybrid storage (up to 144TB)

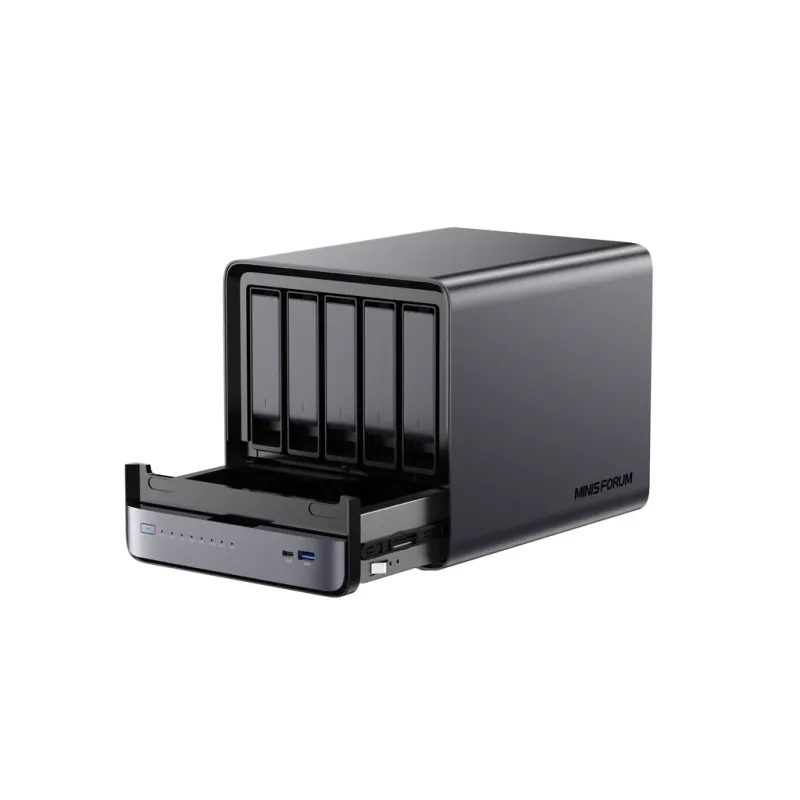

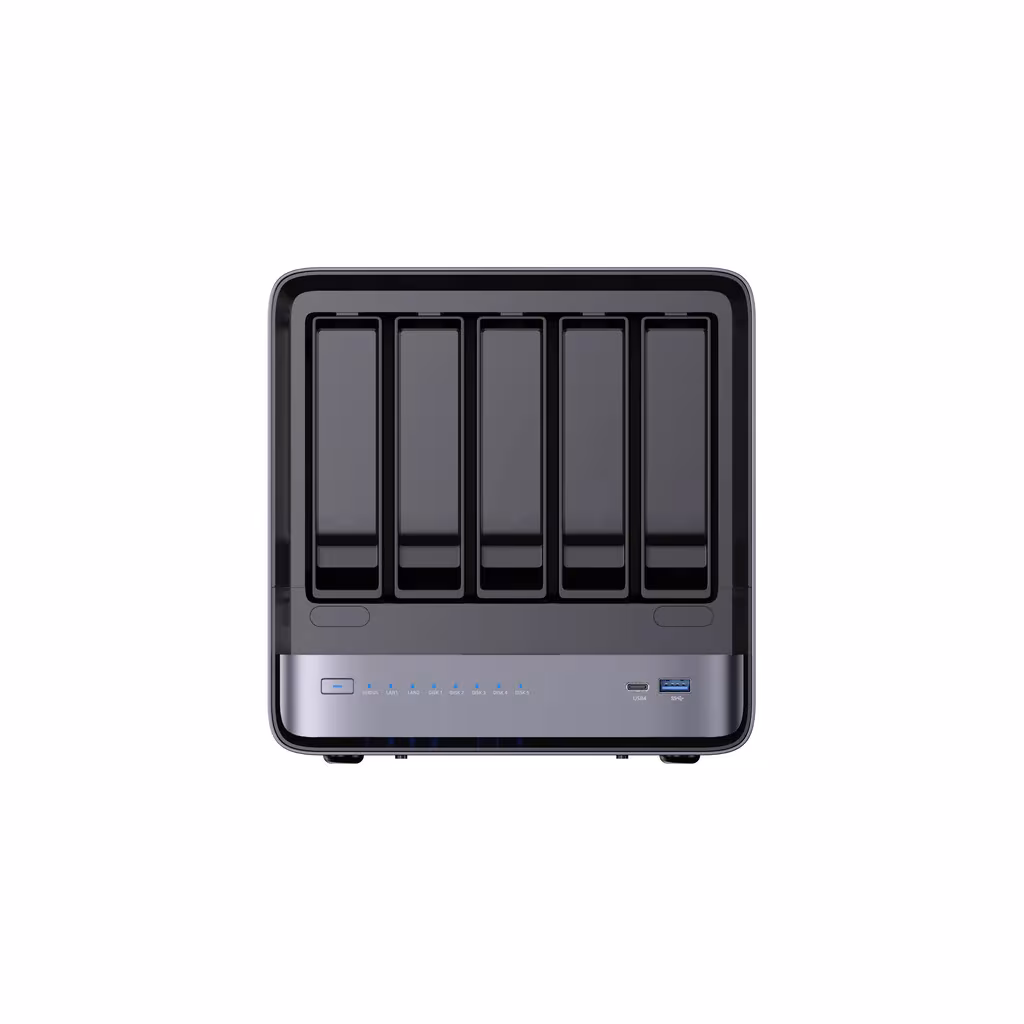

• 5 SATA 3.5" bays up to 22TB per drive (110TB total)
• 3 NVMe/U.2 slots :
  • 1× M.2 PCIe 4.0 x1 (up to 4TB)
  • 2× M.2/U.2 PCIe 4.0 (up to 15TB each)
• Advanced RAID support rAID 0, 1, 5, 6, RAIDZ1, RAIDZ2 + mixed hot data/cold backup strategies

Professional Network Connectivity

• Dual high-speed LAN 10 Gigabit Ethernet + 5 Gigabit Ethernet
• Link Aggregation up to 15 Gbps in aggregate mode
• Ideal for massive file transfers, collaborative workflows, 4K/8K multi-streaming

Extensibility and expansion

• PCIe 4.0 x16 slot (electric x8) : Add additional 10GbE network cards, GPUs, DPUs or storage controllers
• OCuLink port external PCIe 4.0 x4 (64 Gbps) connection for eGPU or external storage bays
• 2× USB4 (40 Gbps) : Ultra-fast universal connectivity
• HDMI 8K : Can be used as a mini-PC with video output

Operating systems and software

• MinisCloud OS pre-installed (128GB SSD system included) : Intuitive interface with full NAS functionality
• Multi-OS support : Compatible with TrueNAS, Unraid, Proxmox, Linux, Windows, FreeNAS
• Integrated Docker one-click deployment of hundreds of applications (Plex, Home Assistant, development servers, etc.)
• ZFS features snapshots, LZ4 compression, self-healing, multi-user isolation

Design and Maintenance

• Modular chassis removable motherboard with sliding rails for tool-free RAM/SSD upgrades

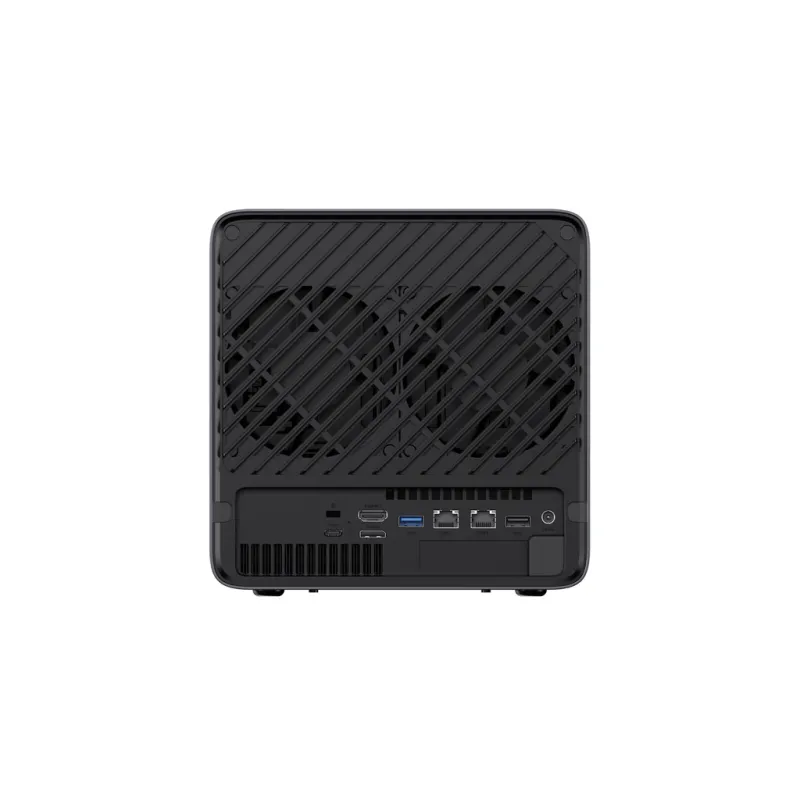

• Active cooling 2× 92mm rear fans + dedicated CPU fan, direct cooling of HDD bays
• Compact size 199×199×252mm, 25% more compact than a conventional 4-bay NAS

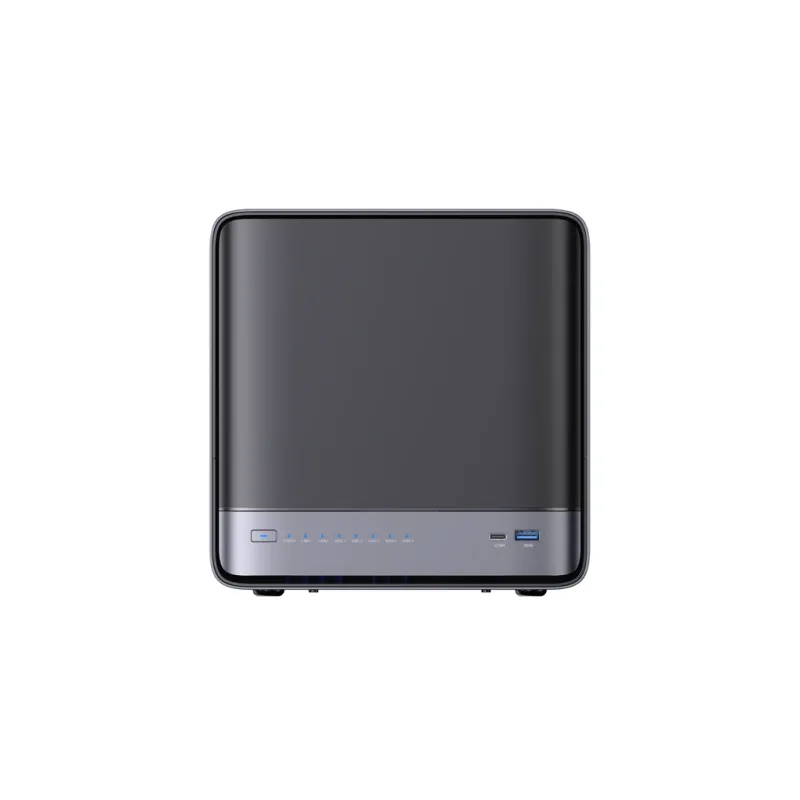

• Magnetic access semi-transparent front panel with magnetic fastening for rapid maintenance

TECHNICAL DATA

Processor and Graphics

Memory

Storage

Network connectivity

Ports and Interfaces

Physical characteristics

Power supply

Software and Compatibility

Box Contents

• 1× Minisforum N5 PRO (barebone with CPU, GPU, NPU)
• 2× DDR5 ECC 48GB modules (96GB total installed)
• 1× SSD M.2 128GB with MinisCloud OS
• 1× M.2 to U.2 adapter
• 5× Caddies for 3.5" discs with fixing screws
• 1× Mains adapter
• 1× Power cable
• 1× Multilingual user manual
• SATA cables and mounting screws
