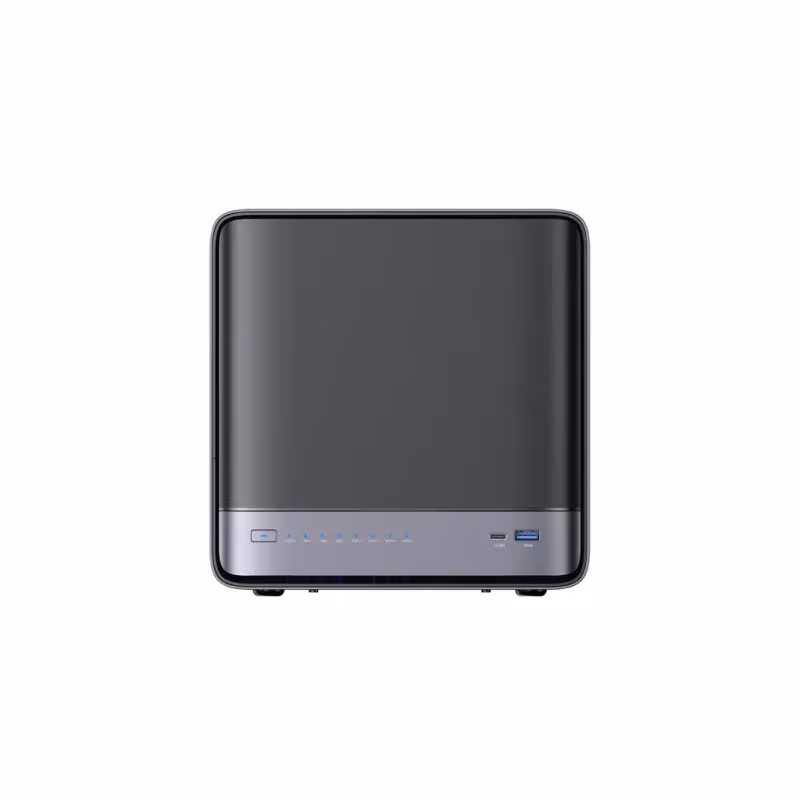

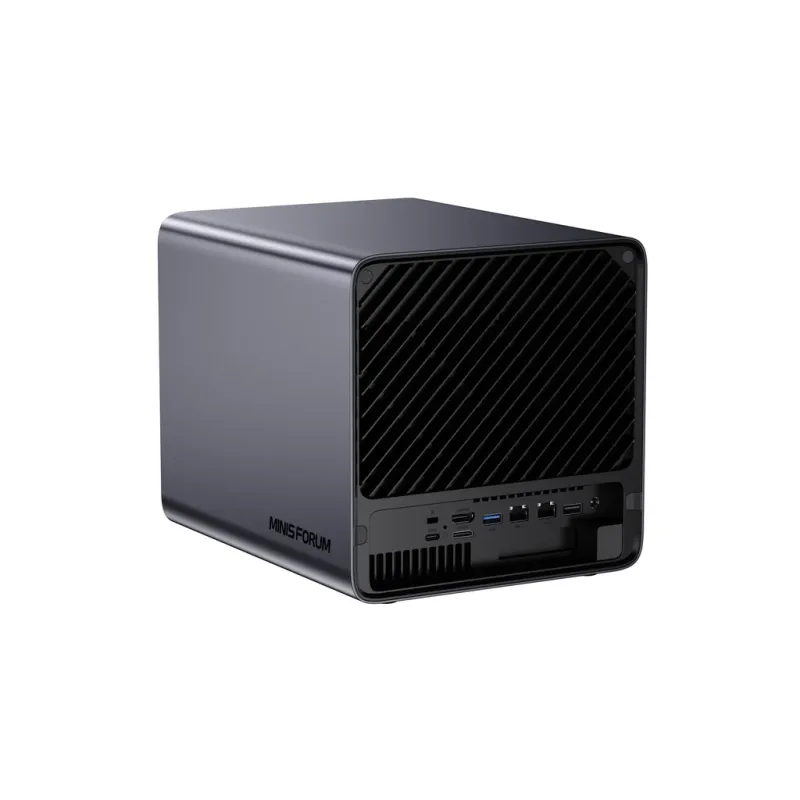

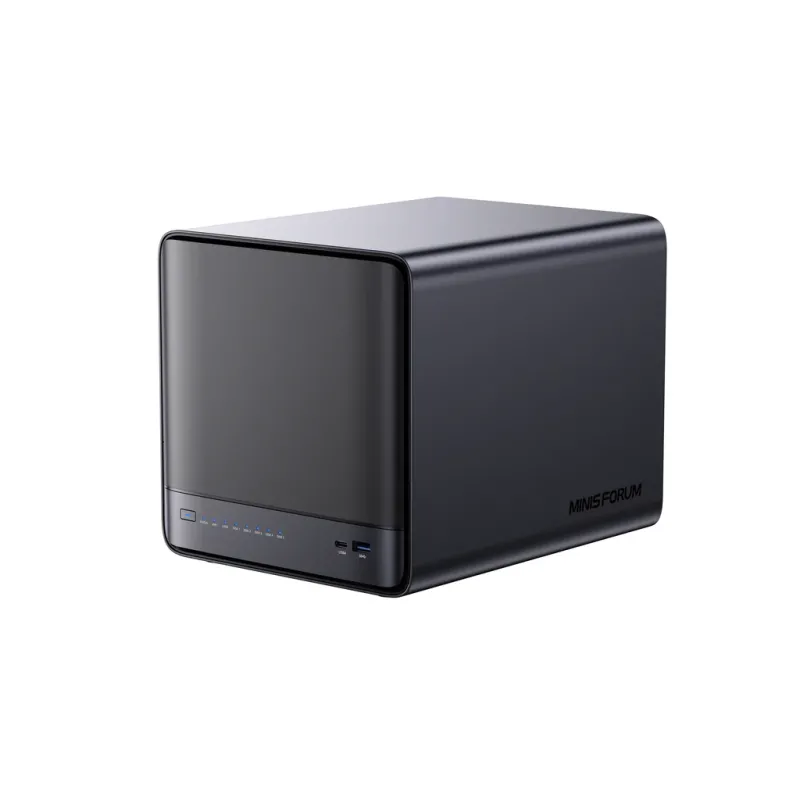

MINISFORUM N5 (Barebone) - NAS with 128GB SSD | No RAM

GENERAL PRESENTATION

Visit Minisforum N5 offers a compact, high-performance professional NAS solution, ideal for SMEs, professionals and enthusiasts looking for a versatile network storage system at an affordable price. Powered by the AMD Ryzen 7 255 processor (Zen 4 architecture), this 5-bay NAS delivers impressive computing power with 8 cores and 16 threads reaching 4.9 GHz boost.

This barebone version gives you total flexibility to customize your memory configuration to your specific needs. Compatible with up to 96GB of DDR5-5600 memory (sold separately), you can optimize your investment and upgrade your system over time. Its storage capacity of up to 144TB makes it the perfect scalable solution for multimedia storage, enterprise backup, lightweight virtualization and 4K streaming.

The N5 stands out for its excellent performance/price ratio, modular design for easy maintenance, and ultra-fast connectivity including 10 Gigabit Ethernet, perfect for large file transfers and multi-user environments. Compatible with a wide range of operating systems (MinisCloud OS, TrueNAS, Unraid, Proxmox), it adapts to every need.

KEY FUNCTIONS

Balanced computing power

• AMD Ryzen 7 255 processor 8 cores / 16 threads, boost frequency up to 4.9 GHz
• Zen 4 architecture performance superior to traditional N100 NAS, ideal for multitasking
• GPU AMD Radeon 780M 12 RDNA 3 processing units at 2.6 GHz, 4K H.265/H.264 hardware transcoding, GTX 1650-like performance

Expandable memory (Not included)

• Support DDR5-5600 up to 96GB (2× 48GB SO-DIMM) for optimum performance
• DDR5 architecture 75% more bandwidth than DDR4, ideal for multi-user access and virtual machines
• Total flexibility choose your memory capacity according to your needs (16GB, 32GB, 48GB or 96GB)
• Note standard version without ECC support (unlike N5 Pro)

Ultra-flexible hybrid storage (up to 144TB)

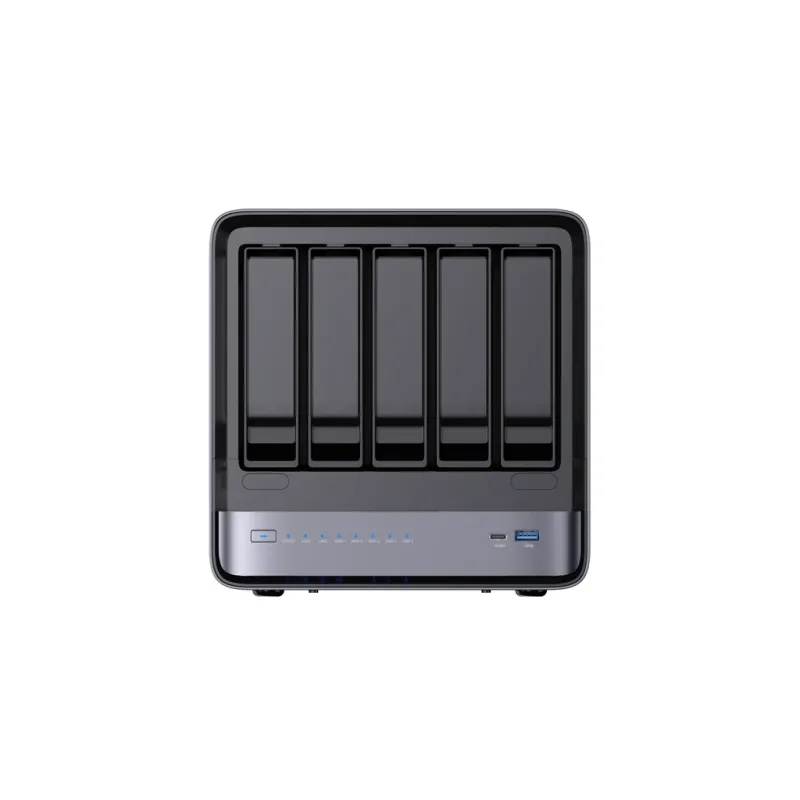

• 5 SATA 3.5" bays up to 22TB per drive (110TB total)
• 3 NVMe/U.2 slots :
  • 1× M.2 PCIe 4.0 x1 (up to 4TB)
  • 2× M.2/U.2 PCIe 4.0 (up to 15TB each)
• Advanced RAID support rAID 0, 1, 5, 6, RAIDZ1, RAIDZ2 + mixed hot data/cold backup strategies

Professional Network Connectivity

• Dual high-speed LAN 10 Gigabit Ethernet + 5 Gigabit Ethernet
• Link Aggregation up to 15 Gbps in aggregate mode
• Ideal for : Massive file transfers, collaborative workflows, 4K multi-streaming

Extensibility and expansion

• PCIe 4.0 x16 slot (electric x4) : Add additional 10GbE network cards, external GPUs or storage controllers
• OCuLink port external PCIe 4.0 x4 (64 Gbps) connection for eGPU (up to RTX 4060 Laptop) or external storage bays
• 2× USB4 (40 Gbps) : Ultra-fast universal connectivity
• HDMI 8K : Can be used as a mini-PC with video output

Operating systems and software

• MinisCloud OS pre-installed (128GB SSD system included) : Intuitive interface with full NAS functionality
• Multi-OS support : Compatible with TrueNAS, Unraid, Proxmox, Linux, Windows, FreeNAS
• Integrated Docker one-click deployment of hundreds of applications (Plex, Jellyfin, Home Assistant, development servers, etc.)
• ZFS features snapshots, LZ4 compression, self-healing, multi-user isolation

Design and Maintenance

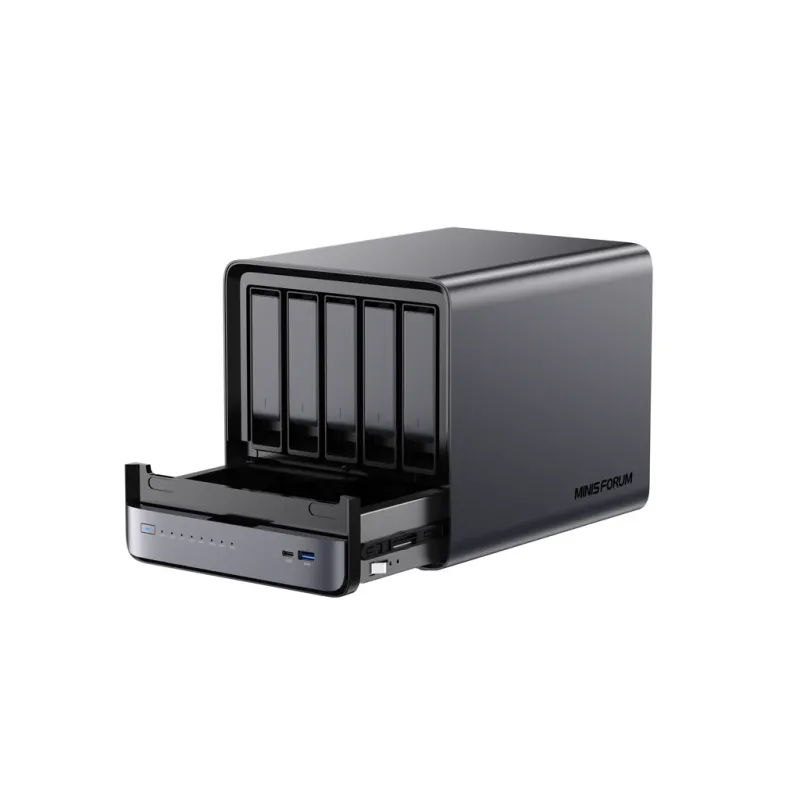

• Modular chassis removable motherboard with sliding rails for tool-free RAM/SSD upgrades

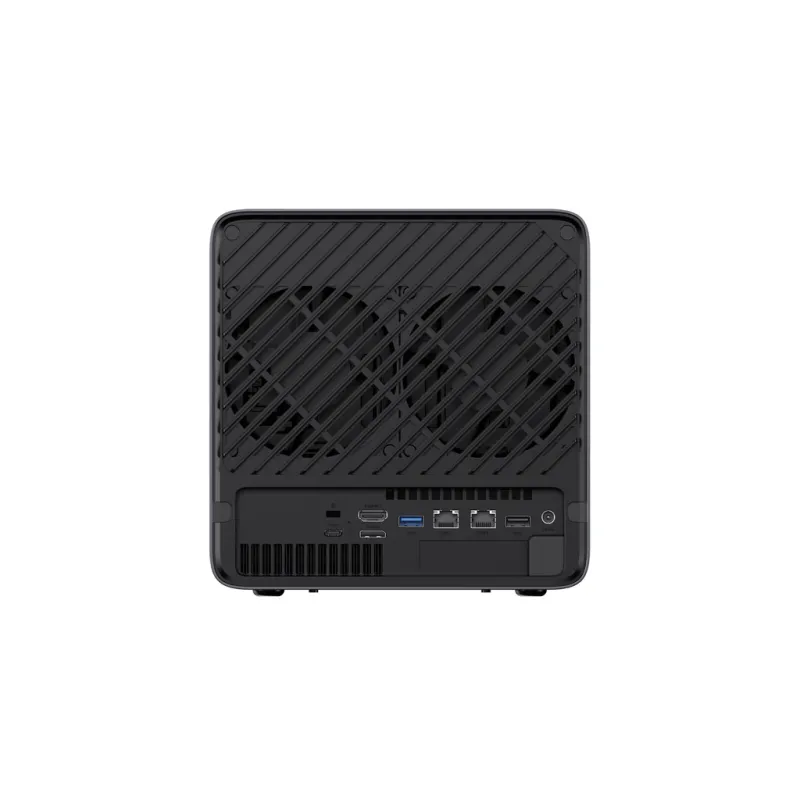

• Active cooling 2× 92mm rear fans + dedicated CPU fan, direct cooling of HDD bays
• Compact size 199×199×252mm, 25% more compact than a conventional 4-bay NAS
• Magnetic access semi-transparent front panel with magnetic fastening for rapid maintenance

TECHNICAL DATA

Processor and Graphics

Memory

Storage

Network connectivity

Ports and Interfaces

Physical characteristics

Power supply

Software and Compatibility

Box Contents

• 1× Minisforum N5 (barebone with CPU and GPU)
• RAM NOT INCLUDED (to be ordered separately)
• 1× SSD M.2 128GB with MinisCloud OS
• 1× M.2 to U.2 adapter
• 5× Caddies for 3.5" discs with fixing screws
• 1× Mains adapter
• 1× Power cable
• 1× Multilingual user manual
• SATA cables and mounting screws
