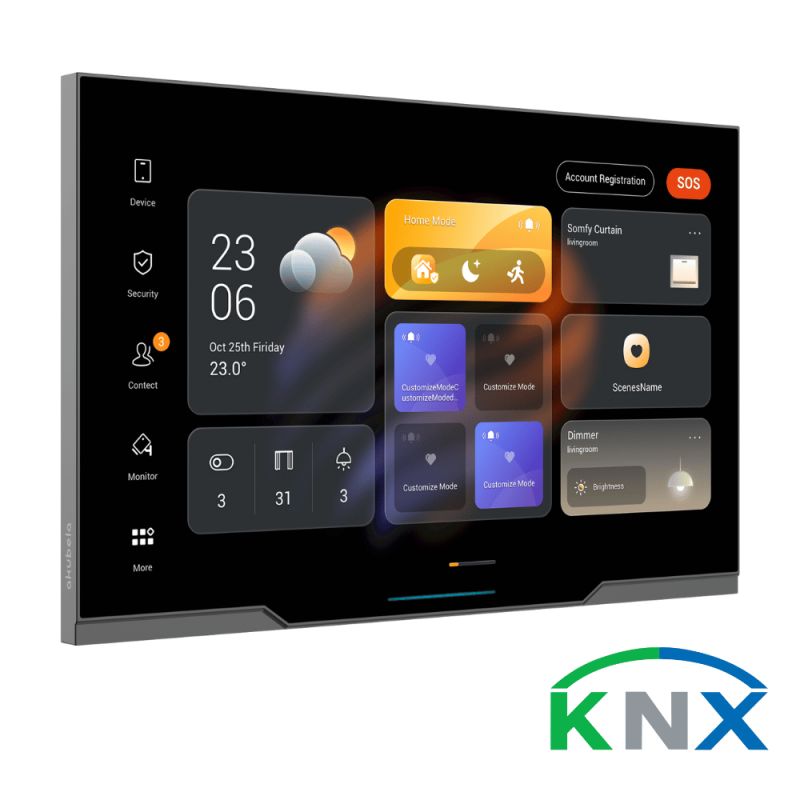

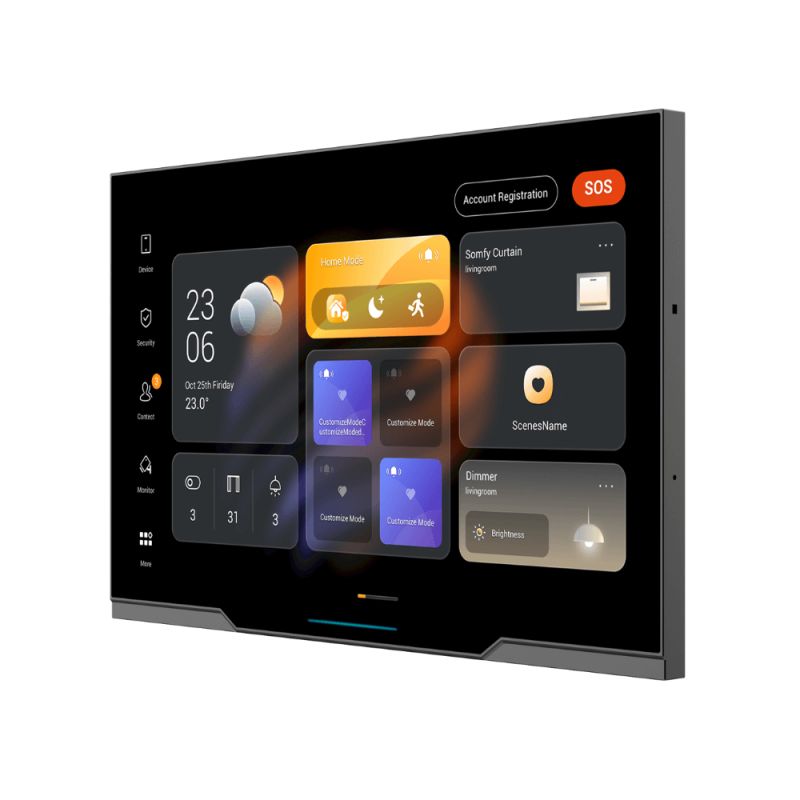

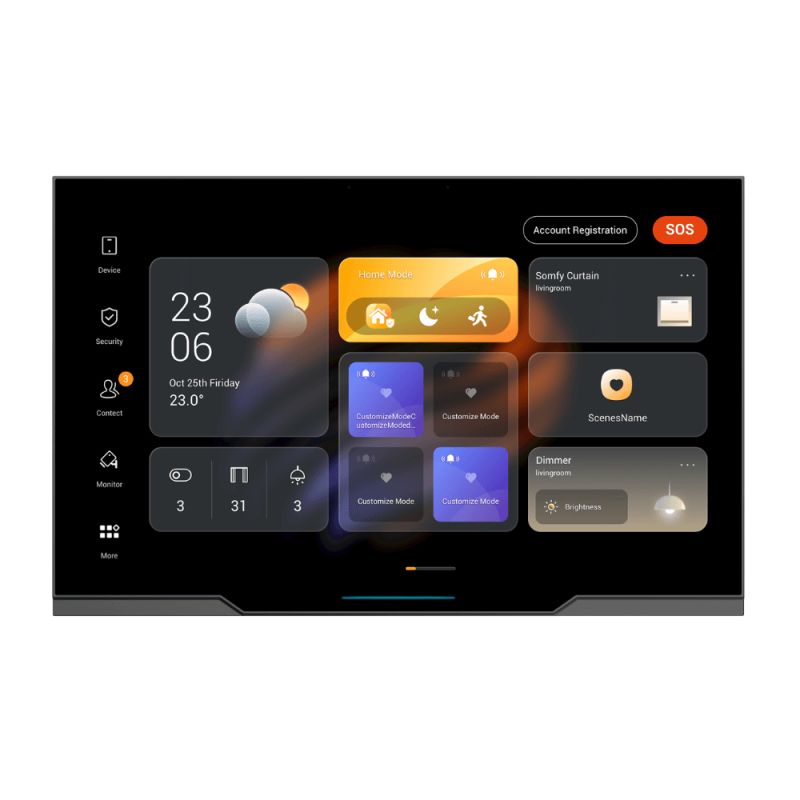

Akuvox PH81-KNX-EU - Akubela Hypanel Ultra 10" control panel with KNX
The HyPanel Ultra features a 10-inch touchscreen that excels in display quality, with a high screen-to-body ratio, 350 nits brightness, 2.0K resolution and optimal aspect ratio for superior display quality.
As an official Akuvox supplier, we are able to offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.
Unrivalled visual experience in a 10" control panel with KNX integration
The akubela HyPanel Ultra PH81-KNX-EU is the main control center for your smart home with native KNX protocol integration. Featuring a 10.36-inch touchscreen with 360 nits brightness and 2K (2000×1200) resolution, the advanced Android 12 operating system, a range of physical interfaces (Ethernet, dry contacts, digital input) and flexible wireless connectivity (WiFi 6, Bluetooth 5.0, ZigBee 3.0), it offers state-of-the-art display performance and seamless integration with existing KNX installations.
Exceptional visual delight
With its 2K resolution and striking brightness, the HyPanel Ultra renders every detail with crystal clarity and vividness on its 10.36" screen. With a high screen-to-body ratio and an aspect ratio of 1:0.618 (golden ratio), users enjoy a more immersive viewing experience and improved usability with more content on a single screen.
Native KNX integration
The HyPanel Ultra PH81-KNX-EU integrates natively with the KNX protocol, enabling centralized control of your existing KNX home automation installation. The device is powered directly via the KNX bus (21-30VDC) with a consumption of 12mA/21V for the KNX bus, and requires an auxiliary power supply of 21-30VDC for extended functionality.
Versatile connectivity
As a connection hub for your smart home, the Ultra PH81-KNX-EU features a full range of interfaces:
- 6 channels of dry contacts (2 gang, 100~240VAC, 4A)
- 1 digital input (dry contact 0-5VDC,
- RJ45 10/100Mbps adaptiveEthernet port
- WiFi 6 @2.4GHz/5GHz
- Bluetooth 5.0
- ZigBee 3.0 (up to 128 sub-devices)
- IntegratedKNX bus
The Android 12 operating system ensures smooth, efficient integration with a variety of home automation hardware and software.
Master control of all home systems
Lighting, blinds, climate, media, cameras, alarm systems and more - everything is orchestrated from the Ultra. KNX integration enables direct control of KNX devices connected to the bus.
Scene creation and control
Customize scenes to match your daily rhythm, activated effortlessly at the touch of a button or by voice. Scenes can combine KNX devices and equipment connected via other protocols (WiFi, ZigBee, Bluetooth).
Intercom and door release
Receive intercom calls without interruption, unlock doors for visitors and communicate with the akubela app and other akubela panels. Integrated dry contacts enable direct control of electric locks and strikers.
Digital family album
Turn it into a digital photo frame, bringing precious family moments to life as you pass by the Ultra.
Video surveillance
Stream real-time video from door cameras and surveillance cameras connected to the display.
Unrivalled performance
The Ultra's exceptional functionality is backed by its outstanding system performance:
- 4-core 64-bit processor up to 1.8GHz
- Advanced1T GPU, VPU and NPU
- 4GB RAM + 32GB ROM for smooth multitasking and extensive data storage
- Dual microphones (-26dBFS)
- Dual speakers (4Ω/2W)
Integrated sensors
The HyPanel Ultra PH81-KNX-EU integrates several sensors to enrich the home automation experience:
- Proximity sensor: 30~60cm
- Light sensor: low lux detection
- Temperature sensor: ±1℃, range -10℃~50℃
- Humidity sensor: ±5%, range 10%~90%RH, non-condensing
Technical specifications
Basic information
- Model: PH81-KNX-EU
- Operating system: Android 12
- RAM/ROM: 4GB/32GB
- WiFi: WiFi 6, @2.4GHz/5GHz
- Bluetooth: Bluetooth 5.0
- Ethernet port: 1×RJ45, 10/100Mbps adaptive
- ZigBee: ZigBee 3.0
- ZigBee sub-device limit: 128
- Microphone: Dual microphones, -26dBFS
- Speaker: Dual speakers, 4Ω/2W
Power supply and consumption
- KNX power supply: 21-30VDC
- Nominal current: 12mA/21V
- AUX power supply: 21-30VDC
- Rated current: 750mA/24V, 600mA/30V
- Rated power: 18W
Inputs/Outputs
- Digital input: 1 gang (dry contact) 0-5VDC, rated current
- Dry contact: 2-gang, 100~240VAC, nominal current 4A
- Cable range: 0.751
.6mm² (1815AWG)
Appearance
- Material: Metal frame
- Display: 10.36" multi-touch screen
- Screen resolution: 2000×1200 pixels (2K UHD)
- Screen brightness: 360 cd/m² (2K UHD)
- Product dimensions: 245×156×10mm (W×H×D)
Integrated sensors
- Proximity sensor: 30~60cm
- Light sensor: Low lux detection
- Temperature sensor: ±1℃, range -10℃~50℃
- Humidity sensor: ±5%, range 10%~90%RH, non-condensing
Working environment
- Environment: For indoor use only
- Operating humidity: 10%~90%RH, non-condensing
- Operating temperature: -10℃~50℃
- Storage temperature: -20℃~70℃
- Protection rating: IP20
Installation
- Type of installation: Wall-mounted
- Flush-mounted module: Standard EU/UK
Application scenarios
- Villas with KNX installation
- Multi-tenant apartment complexes
- KNX home automation systems
- Commercial buildings
- Modern interiors requiring KNX integration
Specifications
| Protocol | Bluetooth Homekit IP IR KNX Zigbee |
|---|---|
| Type | Remote Control Screens for intercoms Switch |
| Function | Access Control Actuator Electricity Consumption Humidity Luminosity Multifunction Presence detection (mmWave) Temperature |
| Gateway compatibility | Fibaro Home Center - partial compatibility Somfy Tahoma - partial compatibility |
| Use | Access Control/Intercom Fixture Control Lighting Control Temperature/Humidity/CO2 Monitoring |
| Wifi | Yes |
| POE | No |
| SD Card | No |
| Audio | Yes |
| Type of installation | In-Wall |
| Operating system | Android 12 |
