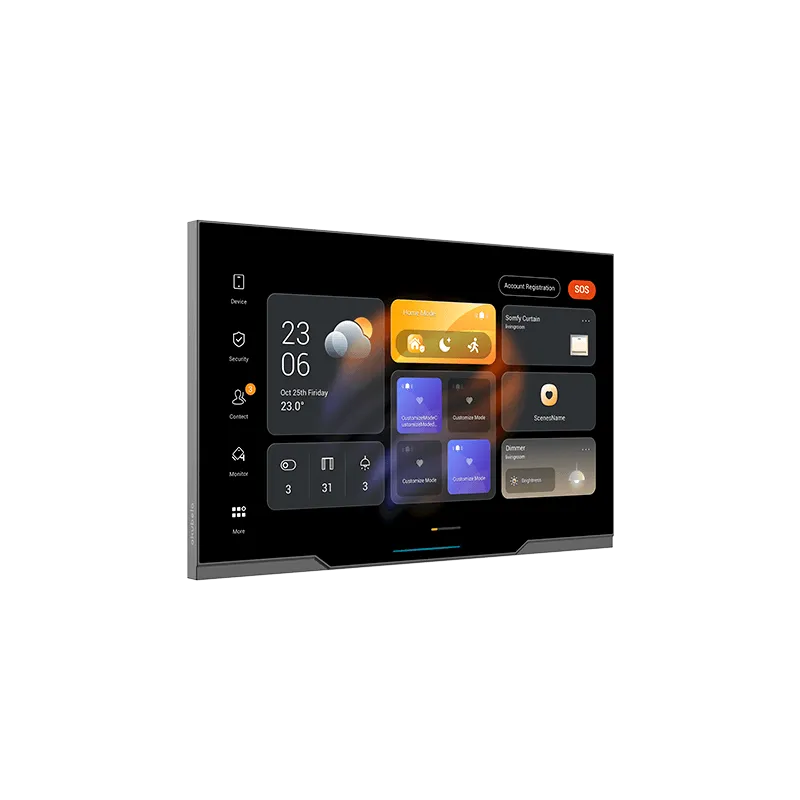

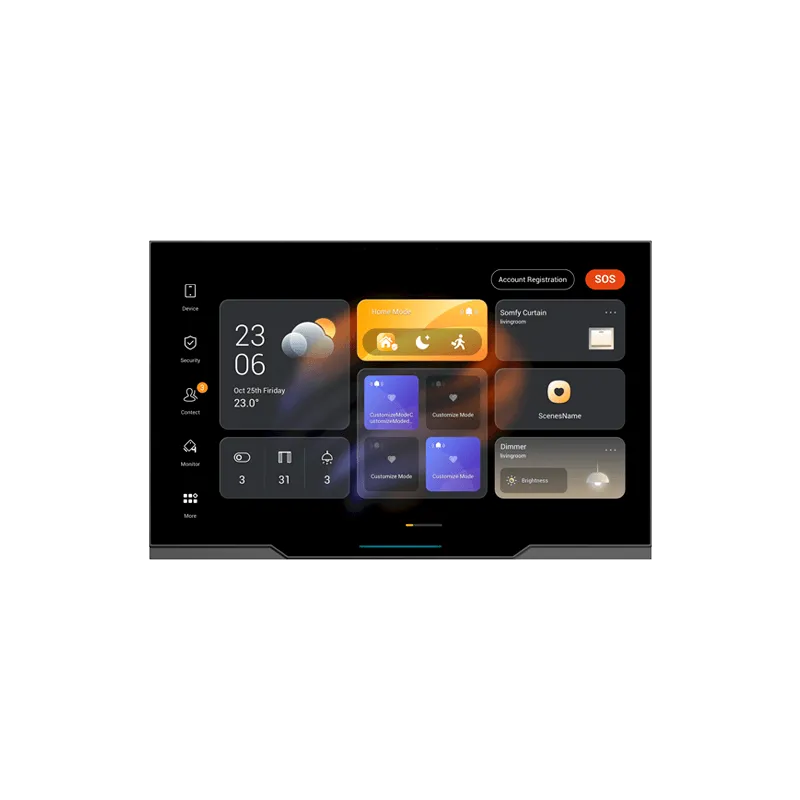

Akuvox - Akubela Hypanel Ultra 10" control panel (PH81-ST)
The HyPanel Ultra features a 10-inch touchscreen that excels in display quality, with a high screen-to-body ratio, 350 nits brightness, 2.0K resolution and optimal aspect ratio for superior display quality.
As an official Akuvox supplier, we are able to offer a 5-year warranty on this product. Choose the 2-year or 5-year warranty below.
Unparalleled visual experience in a 10" control panel
The akubela HyPanel Ultra is the main control center for your home. Featuring a 10-inch touchscreen with 350 nits brightness and 2.0K resolution, the advanced Android 12 operating system, a range of physical interfaces (RS485, dry contacts, digital inputs) and flexible wireless connectivity (WiFi, BlueTooth, ZigBee, etc.), it offers state-of-the-art display performance, guaranteeing a smooth experience for managing your smart devices and home automation systems.
Exceptional visual delight
With its 2K resolution and striking brightness, the HyPanel Ultra renders every detail with crystal clarity and vividness on its 10-inch screen, like an iPad in your hands. With a high screen-to-body ratio, users enjoy a more immersive viewing experience and better usability with more content on a single screen.
Versatile connectivity
As a connection hub for your smart home, the Ultra features a range of physical interfaces, the power of the Android 12 operating system and flexible wireless connectivity, ensuring smooth and efficient integration with a variety of home automation hardware and software.
Master control of all home systems
Lighting, blinds, climate, media, cameras, alarm systems and more, all orchestrated from the Ultra.
Scene creation and control
Customize scenes to match your daily rhythm, activated effortlessly at the touch of a button or with your voice.
Intercom and door release
Receive uninterrupted intercom calls, unlock doors for visitors and communicate with the akubela app and other akubela panels.
Digital family album
Turn it into a digital photo frame, bringing precious family moments to life as you pass by the Ultra.
Video monitoring
Stream real-time video from door cameras and surveillance cameras connected to the display.
Unrivalled performance
The Ultra's exceptional functionality is supported by its outstanding system performance, facilitating smooth multitasking, seamless transitions between pages, extensive data storage and installation of additional applications.
Technical specifications
Note: The HyPanel Ultra requires a 12 to 24 VDC auxiliary power supply to operate correctly.
Basic information
- Ethernet port: 1xRJ45, adaptive 10/100Mbps
- ZigBee: ZigBee 3.0
- Microphone: Dual microphones
- Speaker: Dual speakers
- Product dimensions: 245×156×10mm
Appearance
- Material: Metal frame
- Display: 10.36" multi-touch screen
- Screen resolution: 2000×1200 pixels
- Screen brightness: 360 cd/㎡
- Model number: PH81-ST
- Power supply: 12~24VDC
- I/O: Digital input 0~5VDC x8 / Dry contact 3A 100~240VAC/gang x4 / Dry contact 2A 0~30VDC/gang x2
- RS485 port: Support
- Operating system: Android 12
- RAM/ROM: 4GB/32GB
- Wi-Fi: WiFi6, @2.4GHz/5GHz
- Bluetooth: Bluetooth 5.0
- Operating temperature: -10℃~50℃
- Storage temperature: -20℃~70℃
Integrated sensors
- Proximity sensor: 30~60cm
- Light sensor: Low lux detection
- Temperature sensor: ±1℃,plage:-10℃~50℃
- Humidity sensor: ±5%,plage:10%~90%RH,no condensation
Working environment
- Environment: For indoor use only
- Operating humidity: 10%~90%RH, non-condensing
- Operating temperature: -10℃~50℃
- Storage temperature: -20℃~70℃
Installation
- Installation: Wall-mounted
- Built-in module: Standard EU/UK/US
Application scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
Specifications
Protocol | Bluetooth IP IR Zigbee |
---|---|
Type | Remote Control Screens for intercoms Switch |
Function | Access Control Actuator Electricity Consumption Humidity Luminosity Multifunction Presence detection (mmWave) Temperature |
Gateway compatibility | Fibaro Home Center - partial compatibility Somfy Tahoma - partial compatibility |
Use | Access Control/Intercom Fixture Control Lighting Control Temperature/Humidity/CO2 Monitoring |
Wifi | Yes |
POE | No |
SD Card | No |
Audio | Yes |
Type of installation | In-Wall |
Operating system | Android 12 |
