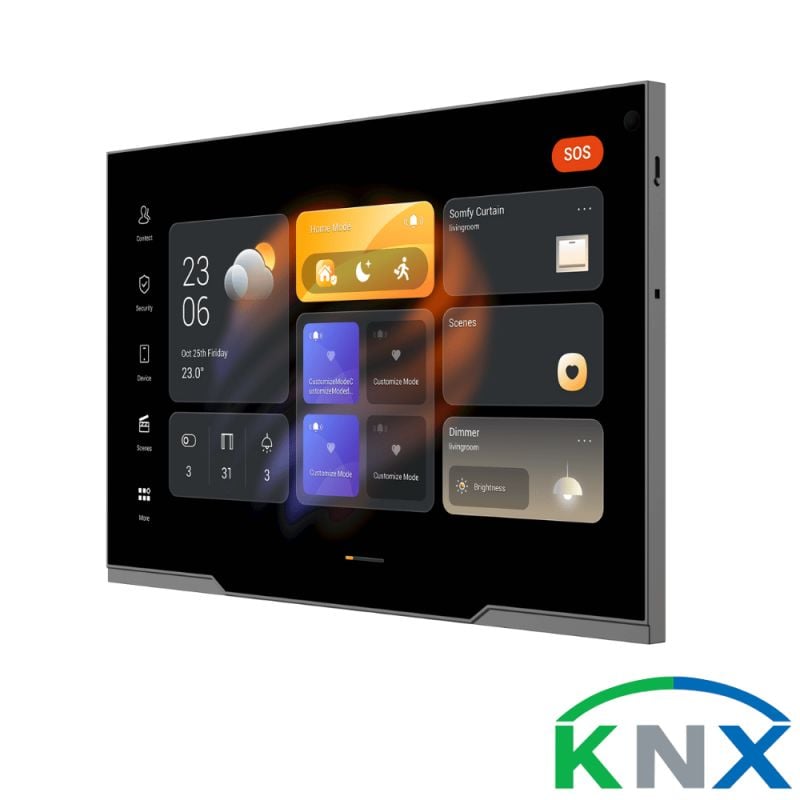

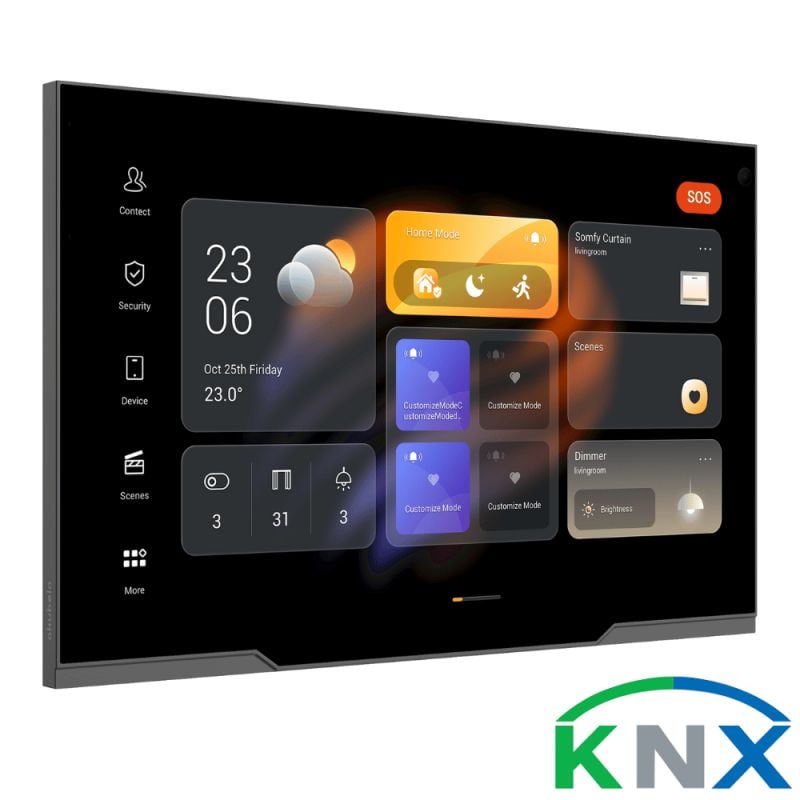

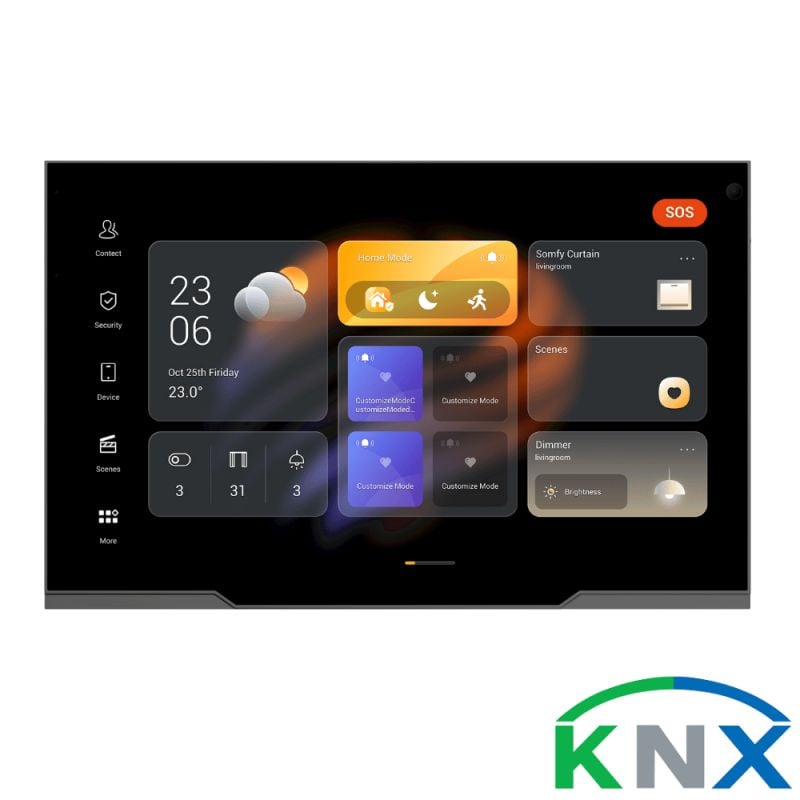

Akuvox - Akubela Hypanel Supreme 12" control panel with KNX (PHX1-KNX-EU)

New hassle-free intelligent control panel for your home

The HyPanel Supreme PHX1-KNX-EU represents the ultimate in high-end home automation from Akubela. This 12.35" smart control panel combines refined aesthetics with exceptional performance to deliver an unprecedented user experience.

Featuring a minimalist design with metal frame and ultra-thin borders, this wall panel blends harmoniously into all contemporary interiors while serving as a central hub for your entire home automation ecosystem. Thanks to its native compatibility with the KNX protocol and its integrated ZigBee 3.0 gateway, it allows you to centrally control all your equipment: lighting, heating, air conditioning, shutters, security system, energy consumption and much more.

Powered by Android 12, this panel offers total flexibility of integration with your favorite apps and services, while guaranteeing smooth performance and intuitive navigation.

Unified control solution for your smart home

Imagine a control center for your entire smart home, seamlessly integrating intercoms, security systems, automation controls and environmental monitoring - that's the power of HyPanel Pro. This innovative touchscreen features a high-performance 8-inch display, making it the heart of your connected living space.

HyPanel Pro goes beyond simple device control. At the touch of a button, you can manage entire groups of devices, simplifying complex routines and enhancing convenience. Gone are the days when you had to juggle multiple applications and controllers: with HyPanel Pro, you have everything within reach at main.Grace Thanks to its integrated Zigbee chip, Hypanel Pro can communicate wirelessly with compatible Zigbee modules or sensors. This radio technology is ideal for making your home intelligent, without the need for any work.

This version of the Hypanel Pro is also equipped with KNX technology known for its reliability, ensuring stable and secure data transmission between devices.
This reliability is crucial for physical security and real-time control tasks such as lighting and heating control, contributing to the overall quality of the smart home system.

But that's not all, as several third-party solutions are also compatible with Hypanel, such as: Alexa, Siri, Google Home, Fibaro, Aqara, Somfy, Ikea, Aqara, Sonos, Dahua, Ring, TP-Link, Luron, Yeelight, Yale, etc...

Control your smart home with a gesture

The HyPanel Supreme supports gesture control. Quick hand movements let you easily control your smart home, giving you total control.

Immerse yourself in high-end visuals

As its name suggests, the Supreme is designed to give you a superior visual experience with a wide operating range on a single screen and enhanced user interface accuracy and realism, enabling you to interact elegantly with a variety of devices and systems.

Seamless connectivity

The HyPanel Supreme is your connection hub for the smart home, offering versatile options including a range of physical interfaces, the power of the Android 12 OS, and flexible wireless connectivity. Thanks to this, integrating various home automation hardware and software becomes child's play.

Built-in camera prioritizes user privacy

The integrated 5MP camera features a privacy shutter. This guarantees your peace of mind regarding your data and privacy while enjoying camera features such as video monitoring of your home's status, video calls via the akubela app and room-to-room video communication between panels.

High performance

At the heart of the HyPanel Supreme lies a powerful kernel, ensuring outstanding system performance, efficient multitasking, smooth transitions between pages, more data storage and installation of additional applications.

Technical specifications

Product number

• Model: PHX1-KNX-EU

Display

• 12.35" capacitive multi-touch screen
• Resolution: 2560 × 1600 pixels (2.5K UHD)
• Luminosity: 400 cd/m² (2.5K UHD)
• Frame: metal

System and performance

• Operating system: Android 12
• Random Access Memory (RAM): 4 GB
• Internal storage (ROM): 32 GB
• Processor: 4 64-bit cores up to 1.8 GHz

Wireless connectivity

• Wi-Fi: Dual-band Wi-Fi 6 (802.11ax) 2.4 GHz / 5 GHz
• Bluetooth: Version 5.0
• ZigBee: Version 3.0 (integrated gateway)
• ZigBee capacity: Up to 128 sub-devices

Wired connectivity

• Ethernet: 1× RJ45 port, 10/100 Mbps adaptive
• Protocol: KNX certified

Interfaces and outputs

• Digital inputs: 1 channel, 0-5VDC
• Dry contact outputs: 2 channels, 100-240VAC
  • Rated current: 4A per channel
• Cable cross-section: 0.75 to 1.6 mm² (18 to 15 AWG)

KNX power supply

• KNX bus supply: 21-30VDC
  • Rated current: 12 mA at 21V
• Auxiliary power supply: 21-30VDC
  • Rated current: 750 mA at 24V, 600 mA at 30V
• Rated power: 18W

Multimedia

• Camera: 5 megapixels with mechanical privacy cover
• Microphones: Dual microphones, -26dBFS
• Speakers: Dual speakers, 4Ω/2W

Integrated sensors

• Gesture recognition: Supported
• Proximity sensor: 30-100 cm range
• Light sensor: Low-level lux detection
• Temperature sensor: Accuracy ±1°C, range -10°C to 50°C
• Humidity sensor: Accuracy ±5%, range 10%-90% RH (non-condensing)

Environmental conditions

• Use: Indoors only
• Operating temperature : -10°C to 50°C
• Storage temperature: -20°C to 70°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Protection rating: IP20

Installation

• Mounting type: flush mounting
• Housing compatibility: European (EU) and British (UK) standards
• Materials: Metal frame
• Front panel dimensions: 296 × 198 mm (W × H)
• Mounting depth: 50 mm

Standards and certifications

• KNX certification
• CE conformity
