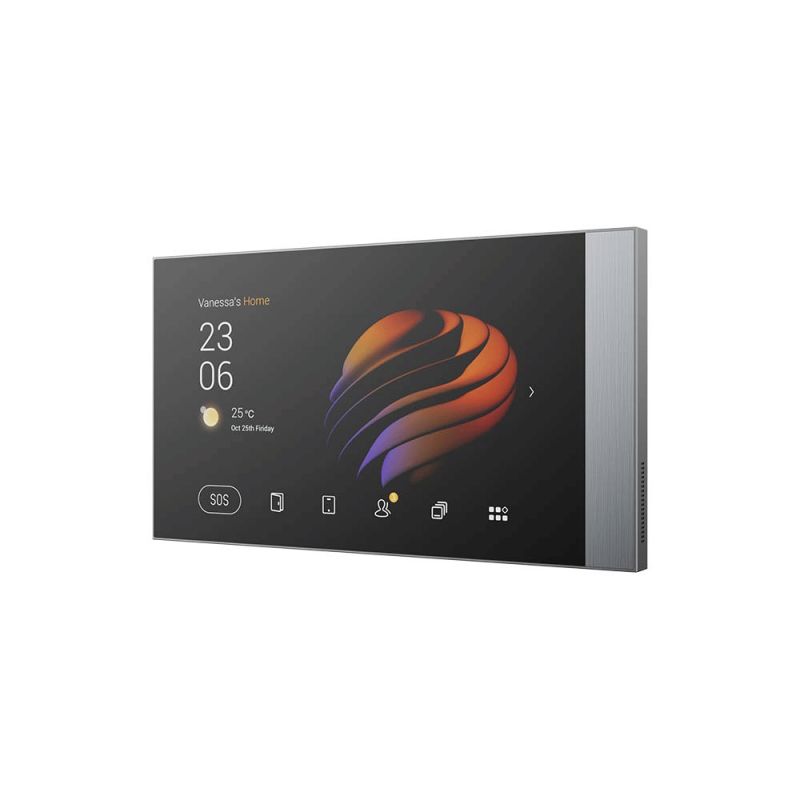

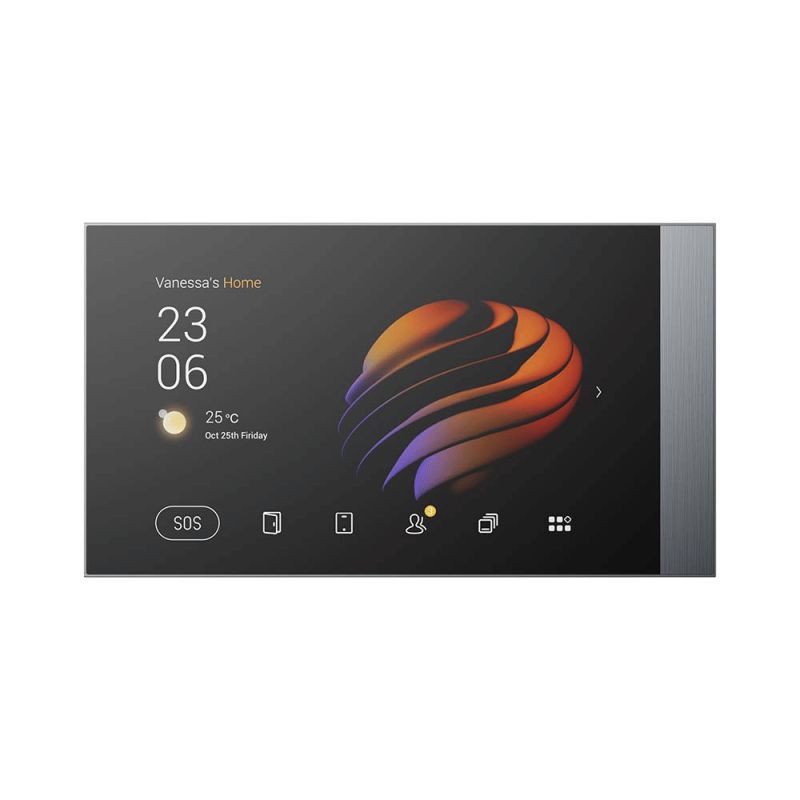

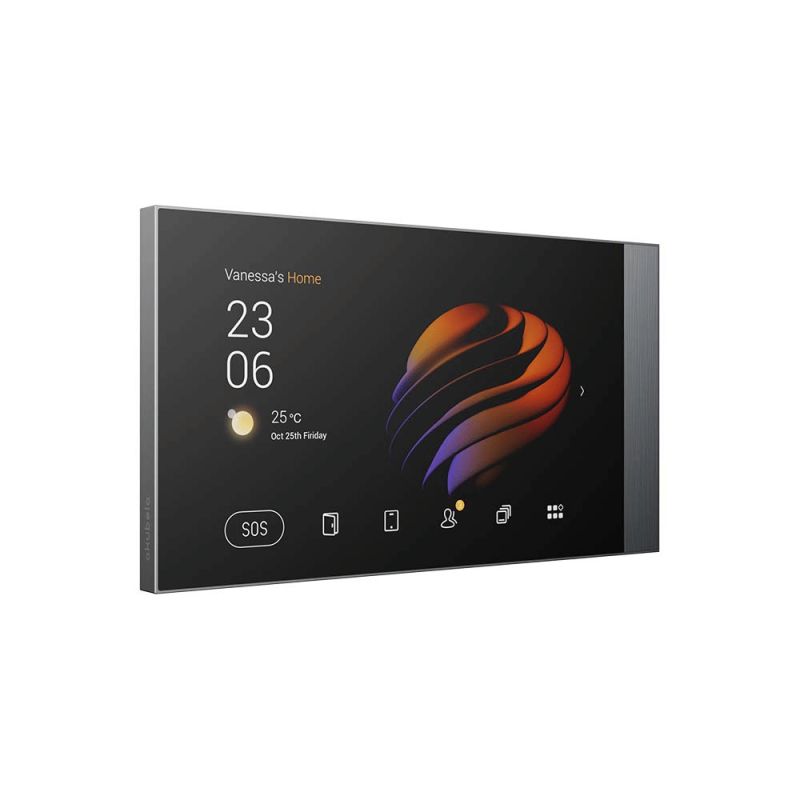

Akuvox - 8" Control Panel Akubela Hypanel Pro (PG71N-R2-EU)

Unified Control Solution for Your Smart Home

Imagine a command center for your entire smart home, seamlessly integrating intercoms, security systems, automation controls, and environmental monitoring - this is the power of the HyPanel Pro. This innovative touch panel features an 8-inch screen with exceptional performance, making it the heart of your connected living space.

The HyPanel Pro goes beyond just controlling devices. With a single touch, you can manage entire groups of devices, simplifying complex routines and enhancing convenience. No more juggling multiple apps and controllers: with the HyPanel Pro, everything is at your fingertips. Thanks to its built-in Zigbee chip, the HyPanel Pro can wirelessly communicate with compatible Zigbee modules or sensors. This radio technology is ideal for making your home smart without the need for construction work.

But that's not all, as several third-party solutions are also compatible with the HyPanel, such as Alexa, Siri, Google Home, Fibaro, Aqara, Somfy, Ikea, Aqara, Sonos, Dahua, Ring, TP-Link, Lutron, Yeelight, Yale, etc.

Make Your Traditional Devices Smart

But the HyPanel Pro doesn't stop at smart devices. Its built-in infrared control brings traditional devices to life, turning them into a smart home ecosystem. This innovative feature allows you to control everything from your television to your ceiling fan via the HyPanel Pro interface.

An Elegant and Premium Addition to Modern Homes

The brilliant 8-inch touch screen, combined with an ultra-thin frame, offers a visually stunning display when the screen lights up. The all-metal body and decorative metal strip enhance the aesthetic of the Pro.

Extended Capabilities with a Modular Design

Akubela's modular design approach separates the covers of residential control panels from their base modules. This allows the Pro to work with different functional embedded modules and is compatible with electrical boxes from various countries.

Energy Management for a Greener Life

With a built-in electricity meter and temperature and humidity sensors, Akubela’s HyPanel Pro also serves as an intelligent home energy management system. It allows you to monitor your home's energy consumption and make adjustments to minimize your environmental impact.

Technical Specifications

Basic Information

• Model Number: PG71N-R2-EU
• Power Supply: 180~260VAC, 50Hz
• Output: 2 gangs, 1200W total; 800W/gang for resistors; 400W/gang for LED/CFL
• Operating System: Android 10
• RAM/ROM: 2GB/16GB
• Wi-Fi: IEEE802.11 b/g/n, @2.4GHz/5GHz
• Bluetooth: Bluetooth 4.2
• Ethernet Ports: 1xRJ45, 10/100Mbps adaptive
• ZigBee: ZigBee 3.0
• Infrared Remote Control: Supported
• Microphone: Dual microphone, -38DBV
• Speaker: Single speaker, 6Ω/1.8W

Appearance

• Material: Metal
• Screen: 8” multi-touch screen, hydrophobic anti-pollution and anti-fingerprint coating
• Screen Resolution: 1280x800 pixels
• Screen Brightness: 310 cd/㎡

Built-in Sensors

• Proximity Sensor: 30 ~ 60cm
• Light Sensor: Low lux level detection
• Temperature Sensor: ±1℃, range: -10℃~55℃
• Humidity Sensor: ±5%, range: 10%~90%RH, non-condensing

Working Environment

• Environment: For indoor use only
• Operating Humidity: 10%~90%RH, non-condensing
• Operating Temperature: -10℃~ 55℃
• Storage Temperature: -20℃~ 70℃

Installation

• Installation: Wall-mounted recessed installation
• Embedded Module: EU/UK standard
• Wiring Mode: L- + N- wire required

Application Scenario

• Villas
• Apartment Complexes
• Home Automation Systems
• Modern Interiors
