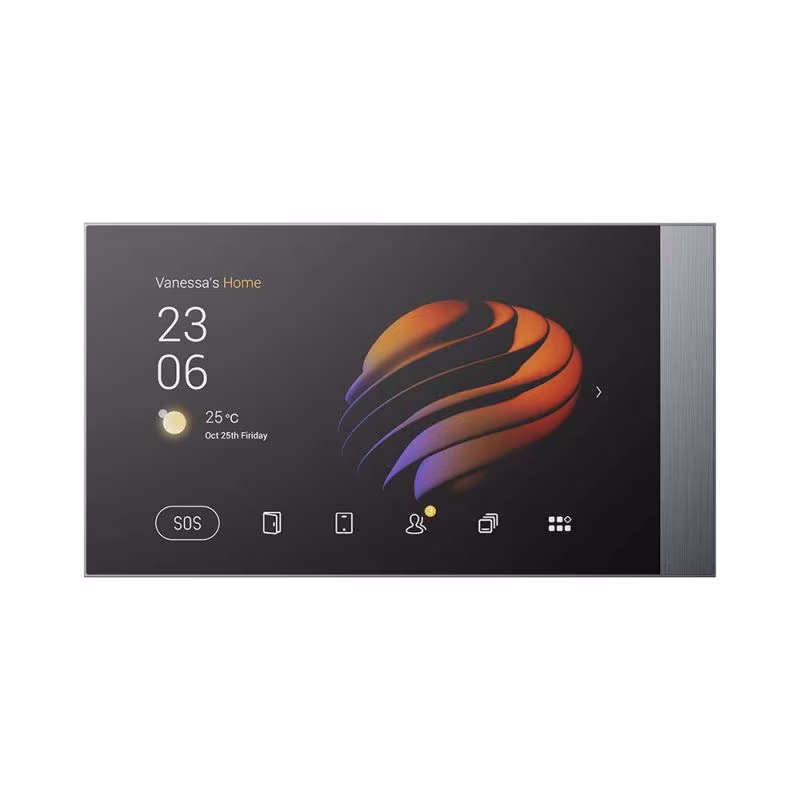

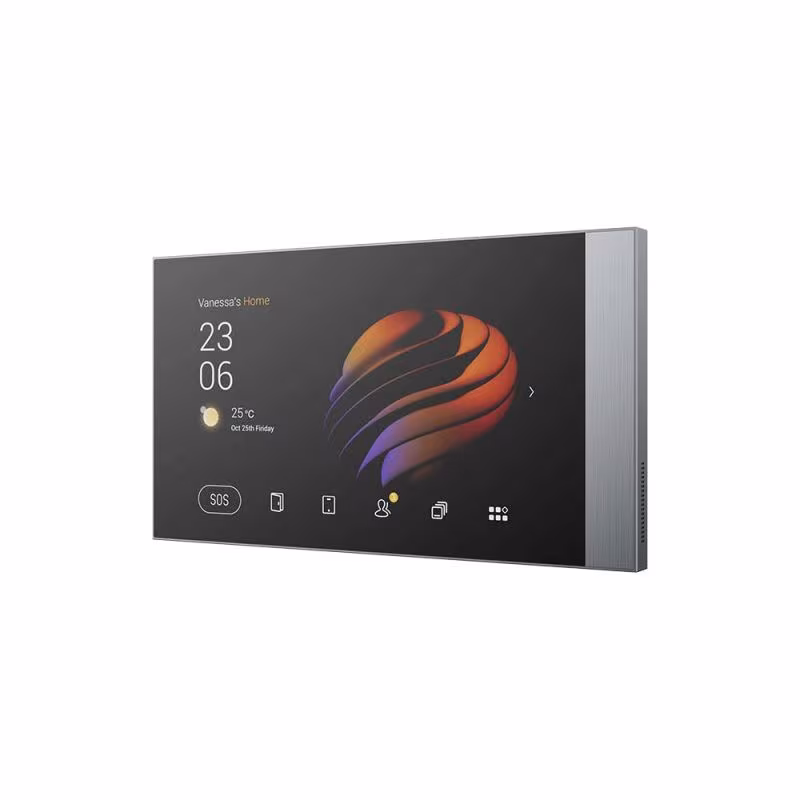

Akubela HyPanel Pro PG71-R2-EU - All-in-one intelligent control panel

Introduction

The HyPanel Pro is a revolutionary smart control panel that centralizes your entire home automation ecosystem. This all-in-one device integrates video intercom, ZigBee 3.0 gateway, and home automation control into a single elegant device. Featuring an 8-inch touchscreen and powered by Android 10, it becomes the nerve center of your connected home. Its 5-megapixel camera with privacy shutter, infrared control for traditional devices, and compatibility with multiple ecosystems (Alexa, Google Home, Aqara, Somfy, Sonos, Ring, TP-Link, Lutron, Yale, etc.) make it a universal solution. The minimalist design with a metallic frame and customizable decorative strip integrates seamlessly into modern interiors.

Main Features

All-in-One Control Center

• Video intercom, ZigBee gateway, and home automation panel in a single device
• Centralized control of all smart devices with a single touch
• Management of device groups for simplified complex routines
• Elimination of multiple apps: everything accessible from a single screen

Premium 8-inch Touchscreen

• Resolution 1280×800 pixels for crystal-clear display
• Brightness 310 cd/m² for optimal visibility
• Hydrophobic AF coating for anti-pollution and anti-fingerprint
• Responsive multi-touch screen
• Ultra-thin frame for a sleek design

High-Performance Android 10 System

• High-performance Qualcomm processor
• RAM 2GB / ROM 16GB
• Smooth and intuitive user interface
• Possible updates and software evolutions
• Third-party apps compatible with Android

5-Megapixel Camera with Privacy Shutter

• Integrated camera for quality video intercom
• 5MP resolution for sharp images
• Mechanical privacy shutter for privacy protection
• Visual communication with visitors or between rooms
• Recording and image capture possible

Integrated ZigBee 3.0 Gateway

• ZigBee 3.0 protocol for secure wireless communication
• Capacity: up to 128 ZigBee sub-devices
• Compatible with market ZigBee modules and sensors
• Eliminates the need for an additional external gateway
• Extended range to cover the entire house

Smart Infrared Control

• Integrated IR transmitter for controlling traditional devices
• Coverage: 125° horizontal, 125° vertical, 6-meter range
• Compatible with TVs, air conditioners, fans, set-top boxes
• Transforms classic devices into smart devices
• Extensive pre-programmed IR database

Integrated 2-Gang Switch

• 2 integrated relays for lighting or device control
• Relay capacity: 16A
• Total power: 1200W
• Per gang: 800W for resistive loads, 400W for LED/CFL
• Direct replacement for traditional wall switch

Multiple Environmental Sensors

• Proximity Sensor: detection 30-60cm, automatic screen activation
• Light Sensor: low light detection, automatic screen brightness adjustment
• Temperature Sensor: accuracy ±1°C, range -10°C to +50°C
• Humidity Sensor: accuracy ±5%, range 10-90% RH without condensation
• Real-time environmental monitoring displayed on the screen

Integrated Electricity Meter

• Real-time electricity consumption measurement
• Historical consumption tracking
• Statistics per device or global
• Helps reduce energy bills
• Configurable excessive consumption alerts

Complete Connectivity

• Dual-band WiFi: IEEE802.11 b/g/n/ac, 2.4GHz and 5GHz
• Bluetooth 4.2: connection for accessories and speakers
• Ethernet: RJ45 10/100Mbps port for stable wired connection
• ZigBee 3.0: integrated gateway
• Triple connectivity for maximum flexibility

Quality Two-Way Audio

• Dual microphone -38dBV for clear voice capture
• Single speaker 6Ω/1.8W for clear audio
• Intercom communication between panels or with door station
• Audio streaming from music applications
• Voice commands via compatible assistants

Customizable Modular Design

• Separation of facade and embedded module
• Metallic decorative strip available in multiple colors and textures
• Compatible with standard EU/UK electrical boxes
• Premium all-metal frame
• Refined finish for high-end interiors

Extended Ecosystem Compatibility

• Voice Assistants: Alexa, Google Assistant, Siri
• Home Automation Brands: Aqara, Fibaro, Somfy, IKEA, Philips Hue
• Security: Ring, Dahua, Yale
• Entertainment: Sonos, TP-Link
• Lighting: Lutron, Yeelight
• Seamless integration with existing systems

Technical Specifications

Basic Information

• Model Number: PG71-R2-EU
• Operating System: Android 10
• Processor: High-performance Qualcomm
• RAM/ROM: 2GB/16GB

Power Supply and Output

• Power supply: 180-260VAC, 50Hz
• Cable section: 1.5-2.5mm² (15-13AWG)
• Integrated relay capacity: 16A
• Output: 2 gangs, 1200W total
  • 800W/gang for resistive loads
  • 400W/gang for LED/CFL
• Electric meter: Integrated

Display

• Screen: 8-inch multi-touch touchscreen
• Resolution: 1280×800 pixels
• Brightness: 310 cd/m²
• Coating: Hydrophobic AF anti-pollution anti-fingerprint

Camera

• Resolution: 5 megapixels
• Privacy shutter: Yes (mechanical)

Connectivity

• WiFi: IEEE802.11 b/g/n/ac, 2.4GHz/5GHz dual-band
• Bluetooth: Bluetooth 4.2
• Ethernet: 1×RJ45, 10/100Mbps adaptive
• ZigBee: ZigBee 3.0
• ZigBee sub-device limit: 128 devices

Infrared Control

• Coverage: 125° horizontal, 125° vertical
• Range: 6 meters

Audio

• Microphone: Dual microphone, -38dBV
• Speaker: Single speaker, 6Ω/1.8W

Integrated Sensors

• Proximity Sensor: 30-60cm
• Light Sensor: Low light detection
• Temperature Sensor: ±1°C, range -10°C to +50°C
• Humidity Sensor: ±5%, range 10-90% RH without condensation

Materials and Construction

• Material: Full metallic frame
• Decorative strip: Metal, multiple finishes available
• Protection rating: IP20

Usage Conditions

• Environment: Indoor use only
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +70°C
• Operating humidity: 10-90% RH without condensation

Installation

• Type: Wall flush mounting
• Embedded module: Standard EU/UK
• Wiring: L- + N- wire required (phase + neutral)

Dimensions

• Width: 214mm
• Height: 120mm
• Mounting depth: ~50mm
• (See detailed dimensional diagram in documentation)

Certifications

• See manufacturer's documentation

Delivery Content

• 1× HyPanel Pro PG71-R2-EU
• 1× EU/UK Embedded Module
• Mounting accessories
• Installation documentation
