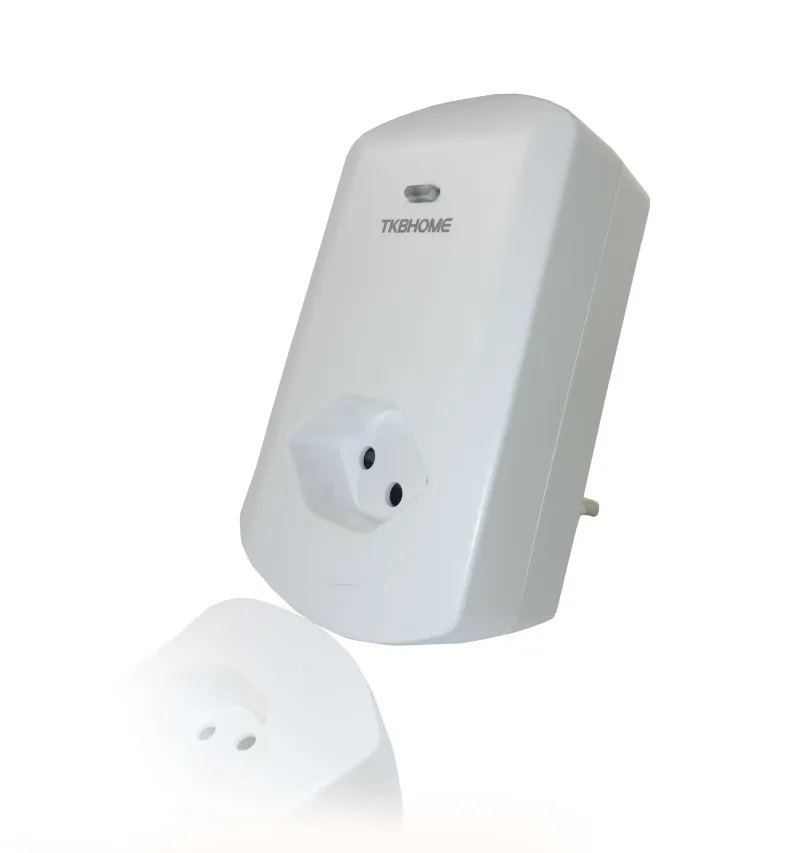

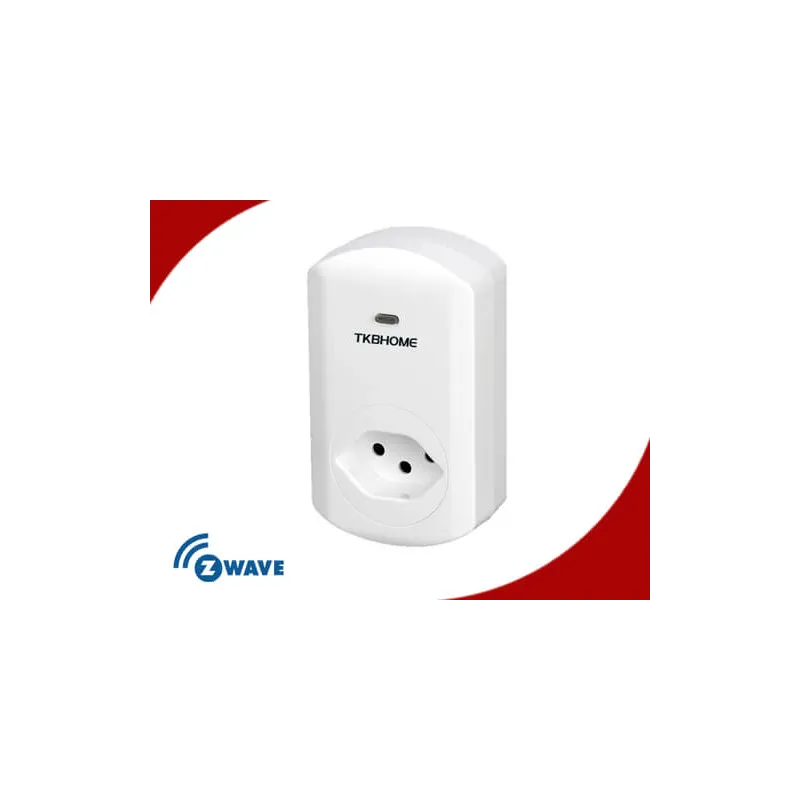

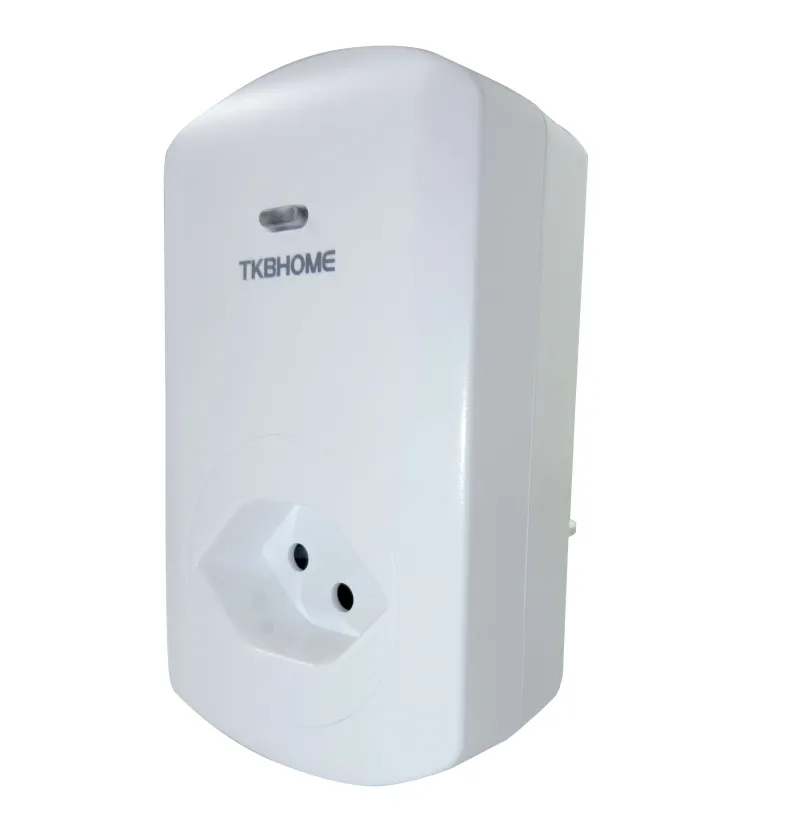

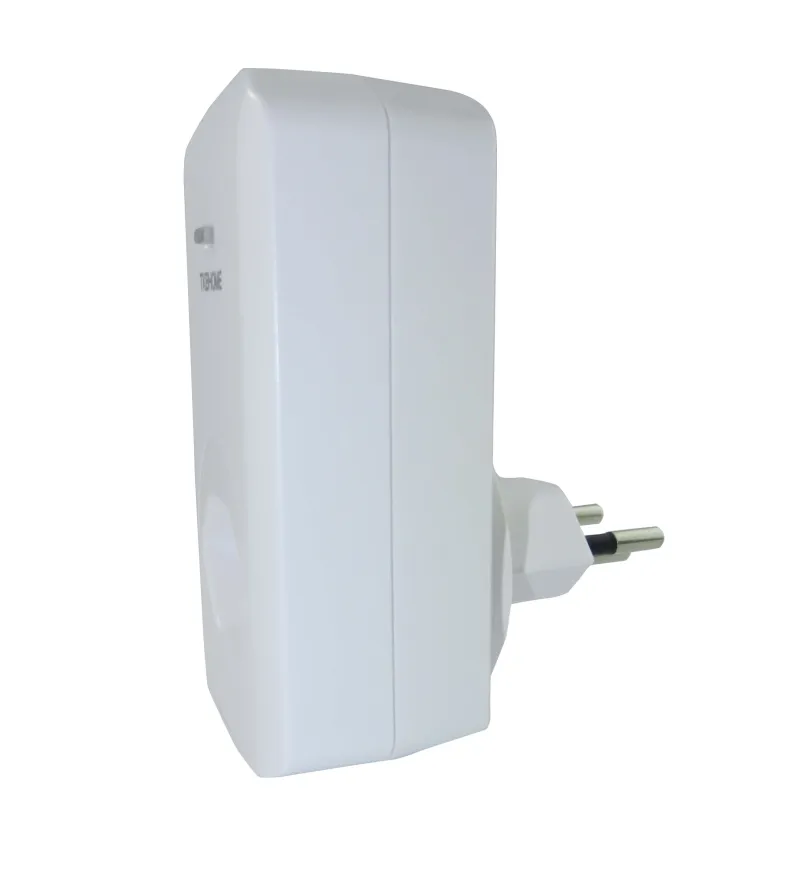

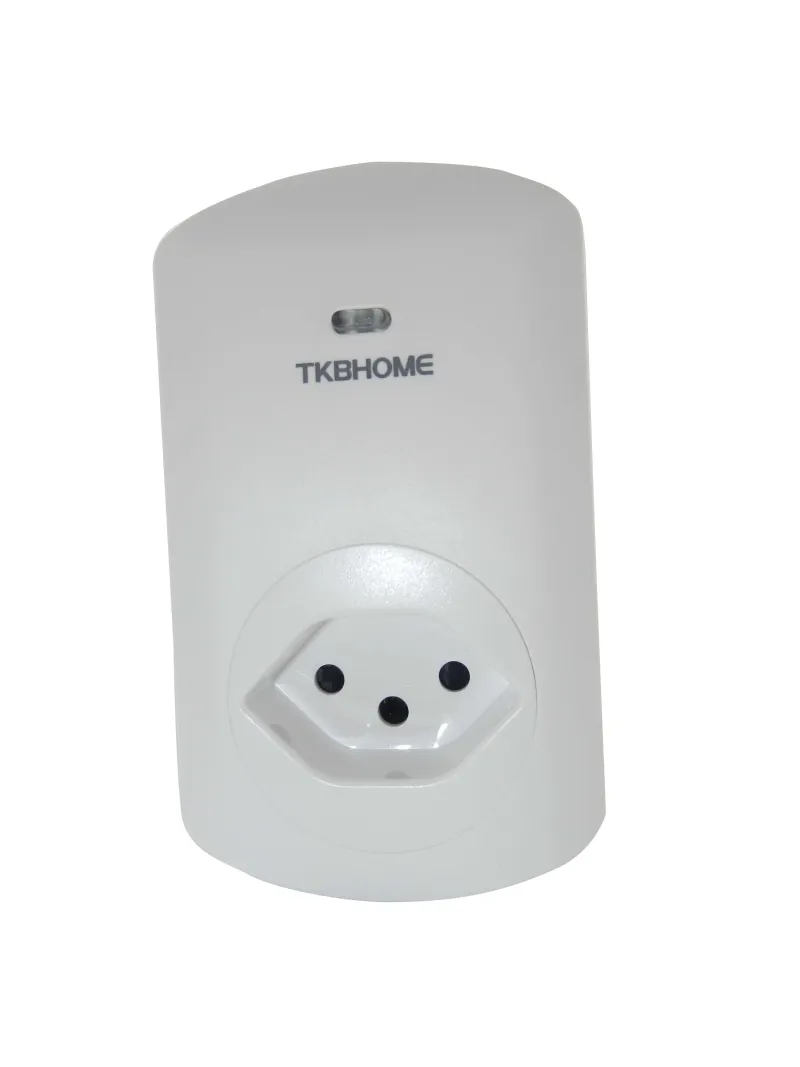

TKB Home - Z-Wave Dimmer Smart Switch GEN5 (TZ67CH)

A Swiss format Z-wave+ Dimmer socket for remote control of your appliances

The TZ67CH GEN5 socket by TKB makes it easy to control your lighting via Z-Wave, both to switch ON/OFF and to dim as required. It is designed to work with all dimmer-compatible lighting with a maximum wattage of 300W.

It can be controlled by a remote control, PC software or any Z-Wave controller in your network.

This Z-Wave module also functions as a wireless repeater with your other modules to ensure total coverage for your home. It accepts over-the-air (OTA) updates and includes an overload protection.

Features

• Remote control for lighting or other appliances
• Z-Wave socket module available in Swiss Format
• Fits directly between the electrical socket and the device to be controlled
• ON/OFF and Dimmer functions to control lights or appliances
• Manual control of the device via the integrated button
• Integrated LED status button
• Overload protection
• Secure radio communication via AES-128 encryption
• Integrated 500 series Z-Wave chip
• Communication 250% faster compared to standard Z-Wave devices
• Over-the-air firmware updates (OTA)
• Z-Wave message repeater
• Easy to use and install

​Technical Specifications

• Module type: Z-Wave receiver
• Power supply: 230VAC, 50/60Hz
• J type socket (Switzerland)
• Power consumption: 1W
• Maximum load: 300W
• Frequency: 868.42 MHz
• Transmission range: 150m free field
• Dimensions: 101.4 x 60 x 34mm
• Working temperature: 0°C to 40°C
• Certifications: FCC, UL, CE, ROHS
