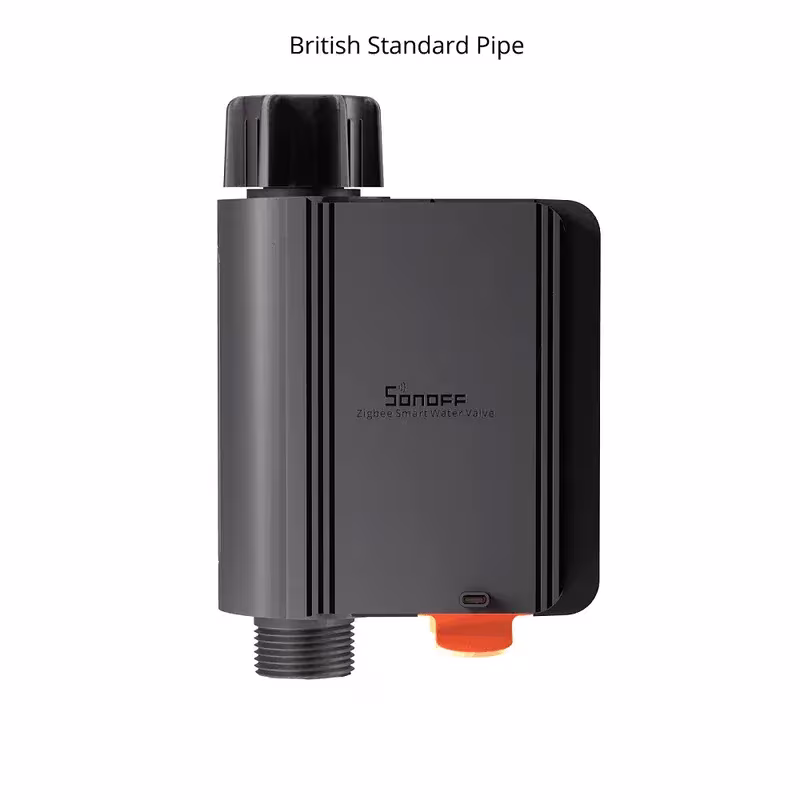

SONOFF SWV-BSP - Zigbee 3.0 Smart Water Valve

Presentation

The SONOFF Smart Water Valve (SWV) transforms your traditional irrigation system into a smart connected installation. Powered by four standard AA batteries, this valve is quickly installed on any standard faucet thanks to its universal threaded connector, without the need for electrical wiring or complex modifications.

Control your garden watering from anywhere via the eWeLink app: schedule precise irrigation times, set repetitive cycles, configure specific water quantities, or create smart automations combining weather sensors and other smart devices. The system automatically records water consumption with a history kept for free for 6 months.

Its IP55 waterproof design withstands water splashes and weather for permanent outdoor installation. The robust black PC+ABS case integrates a local manual control button, a tricolor LED connection status indicator, and a battery compartment accessible without tools. A 130-meter Zigbee range in open field ensures reliable coverage even when far from the gateway.

Key Functions

• Installation without wiring 4 AA batteries: Eliminate electrical constraints by powering the valve with standard replaceable batteries available everywhere, allowing flexible installation on outdoor faucets far from any power outlet.

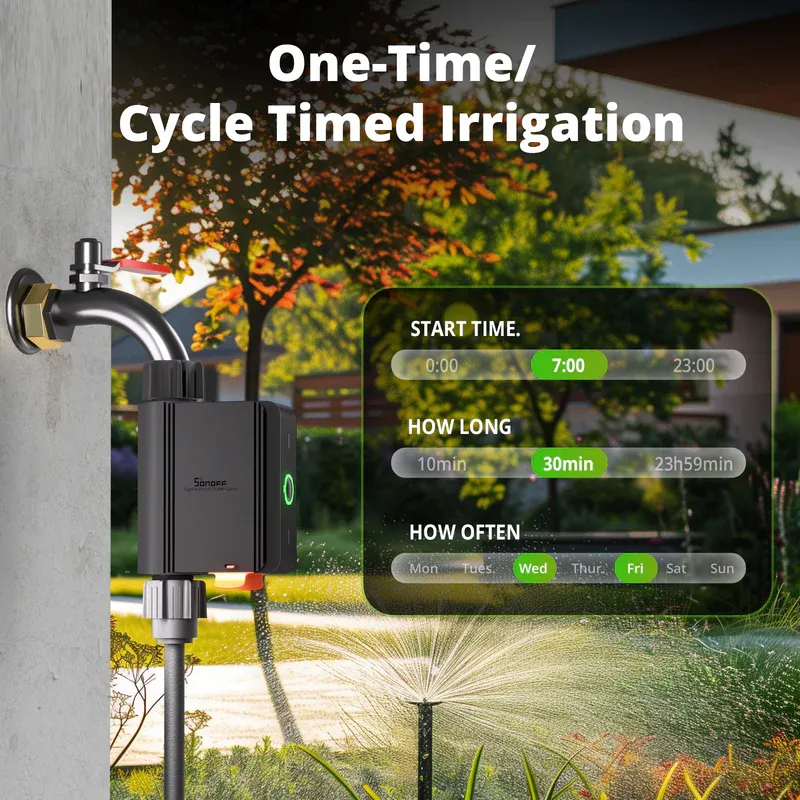

• Multifunctional scheduled watering: Set timed irrigation for daily morning watering, weekly repetitive cycles adapted to each garden zone, or quantitative irrigation stopping automatically after a defined volume for precise water savings.

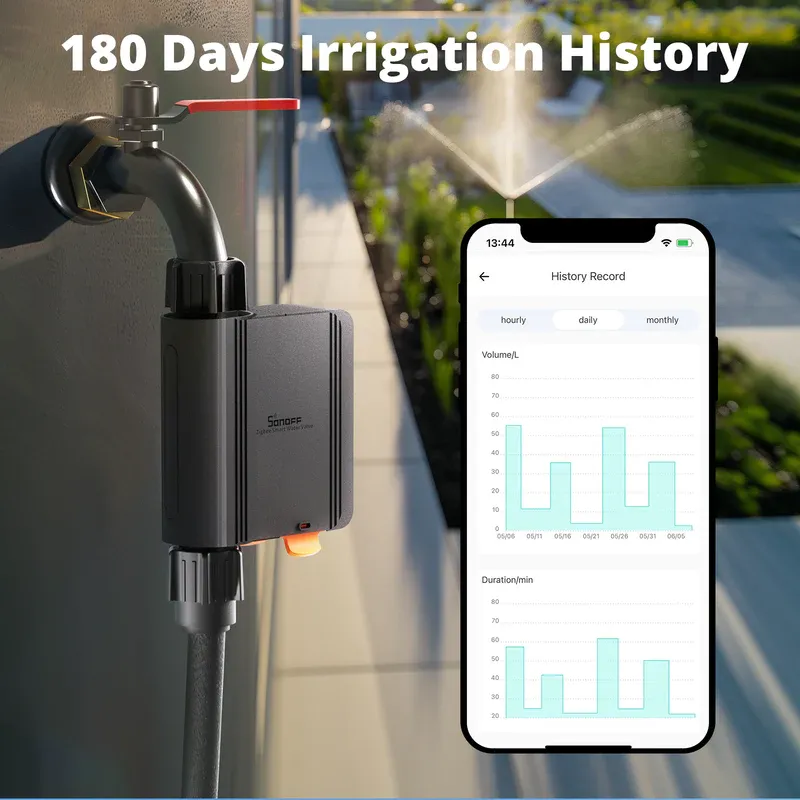

• Real-time water consumption tracking: Instantly visualize the amount of water used during each watering and consult free 6-month historical graphs to identify excessive consumption, optimize irrigation durations according to seasons, and significantly reduce the water bill.
• Smart weather automations: Pair the valve with rain, temperature, or soil humidity sensors to trigger watering only when necessary, cancel scheduled irrigation in case of detected precipitation, or adjust volumes according to weather to avoid waste and over-watering.
• Hands-free voice control: Activate or deactivate watering instantly with simple voice commands "Alexa, open the garden valve" or "Ok Google, stop watering" without using a smartphone, convenient for wet or busy hands.
• Remote control for vacation peace of mind: Monitor and manage irrigation even when traveling, start emergency watering during heatwaves, receive alerts if the valve remains open abnormally long, preventing costly leaks or floods.
• Quick standard faucet mounting: Simply screw the inlet nut onto the existing faucet after applying sealing Teflon, then connect the hose to the valve outlet in less than 5 minutes without a plumber or specialized tools required.

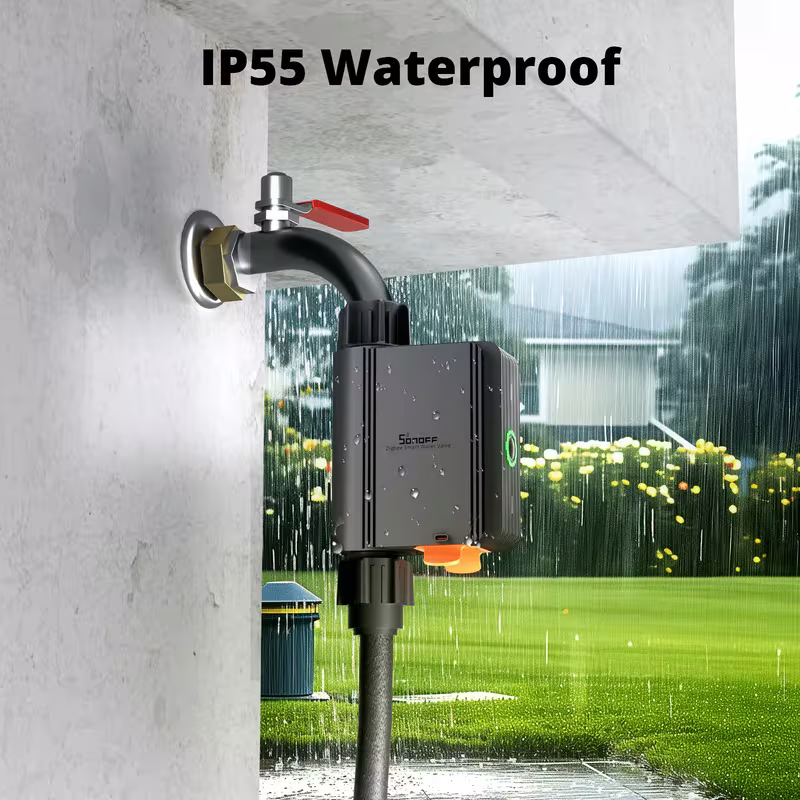

• IP55 outdoor waterproof protection: Install the valve outside exposed to rain and sun without fear thanks to IP55 certification ensuring resistance to water jets and dust, durable PC+ABS material supporting UV and temperatures from 5-60°C year-round.
• Instant status LED indicator: Identify connection status at a glance with a solid green LED (normally connected), slow blinking (pairing in progress), or rapid blinking (gateway connection problem requiring intervention).
• Local manual emergency control: Activate or deactivate the valve with a simple press of the physical button directly on the case in case of smartphone unavailability, internet outage, or need for quick functionality testing without an app.
• Complex multi-zone scenarios: Orchestrate sequential irrigation of multiple valves automatically chaining lawn watering, then vegetable garden, then flowerbeds with optimized intervals avoiding simultaneous water pressure drop and ensuring uniform distribution.

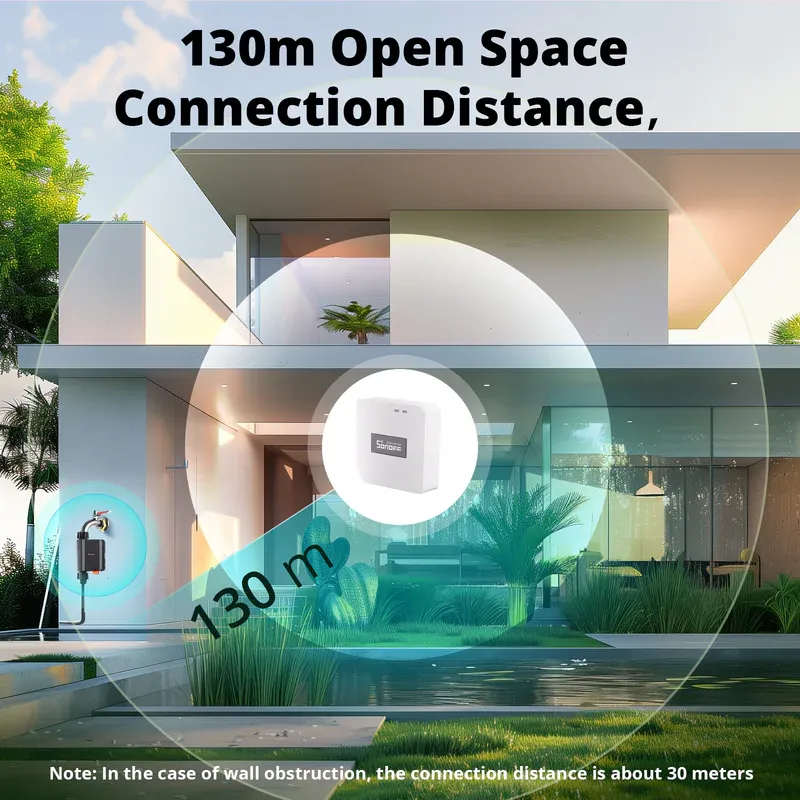

• Professional 130m Zigbee range: Cover large gardens up to 130 meters between the gateway and valve in open space, or extend unlimited range via additional Zigbee routers for vast terrains or obstructed configurations.

Technical Specifications

Electronic Specifications

• Models: SWV-BSP
• MCU: EFR32MG22 (Silicon Labs)
• Wireless protocol: Zigbee 3.0 (IEEE 802.15.4)
• Operating frequency: 2405-2480 MHz
• Transmission power: ≤10 dBm
• Power supply: 6V (4 AA 1.5V batteries)
• Battery type: 4x standard AA (LR6/R6)
• Autonomy: Several months depending on usage frequency
• Communication distance: 130m in open field

Hydraulic Specifications

• Working pressure: 0.06 MPa to 0.8 MPa (0.6 to 8 bars)
• Inlet threading: Standard male faucet connector
• Outlet threading: Standard garden hose connector
• Recommended installation: Vertical (horizontal increases flow measurement error)
• Valve mechanism: Motorized solenoid valve
• Default position: Closed (power cut-off safety)

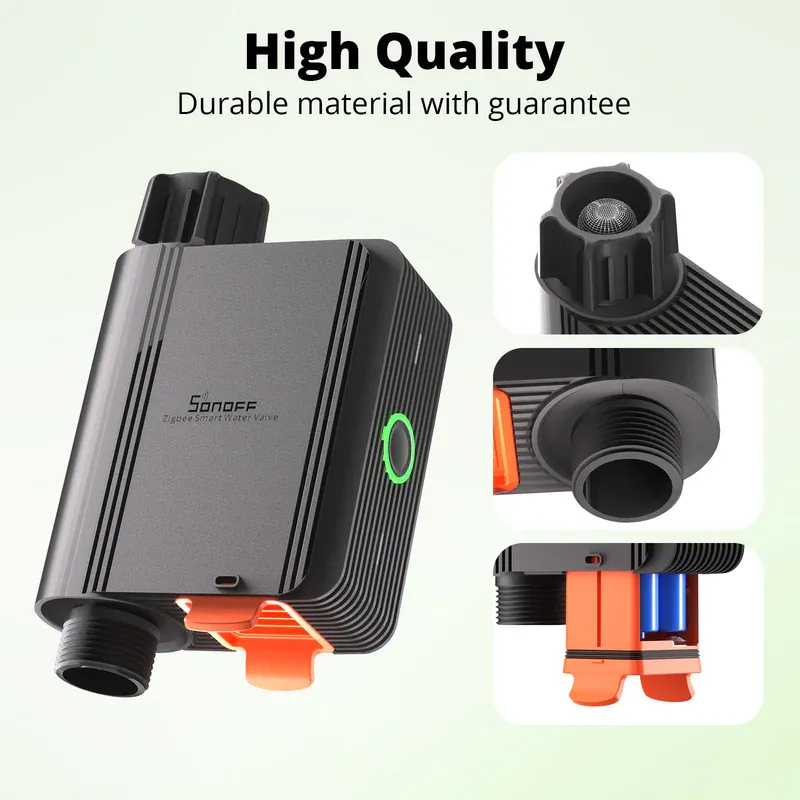

Construction and Protection

• Protection index: IP55 (water splash proof, dust resistant)
• Case material: High resistance PC+ABS
• Color: Black
• Dimensions: 152 x 100 x 46 mm
• Net weight: 278g
• Battery compartment: Tool-free opening
• Standard norm: EN62368-1

Environmental Conditions

• Operating temperature: 5°C to 60°C (41°F to 140°F)
• Operating humidity: 5% to 95%RH non-condensing
• Maximum altitude: ≤2000m for safe use
• Exposure: Permanent outdoor (UV and weather resistant)

Interface and Controls

• Control button: Accessible on the front panel
• Single press: Manual valve activation/deactivation
• Long press 5 seconds: Enter Zigbee pairing mode
• LED indicator: Tricolor green (solid/slow blink/fast blink)
• Solid LED: Normal connection with gateway
• Slow blinking LED: Active pairing mode (180 seconds)
• Fast blinking LED: Gateway connection problem

Gateway Compatibility

• Recommended SONOFF gateways: ZBBridge-P (V2.0.0), NSPanel Pro (V3.3.0), iHost (V2.1.0), ZBBridge-U (upcoming support)
• Other SONOFF gateways: ZBDongle-P, ZBDongle-E
• Amazon gateways: Echo Plus 2nd Gen, Echo Show 2nd Gen, Echo 4th Gen
• Standard compatibility: Any certified Zigbee 3.0 gateway
• Smart home platforms: eWeLink, Home Assistant (ZHA), Zigbee2MQTT, openHAB, ioBroker, Domoticz, Jeedom
• Voice assistants: Google Home, Amazon Alexa

eWeLink App Features

• Remote control: Real-time valve activation/deactivation
• Timed irrigation: Daily/weekly watering schedule programming
• Cyclic irrigation: Customized automatic repetitive cycles
• Quantitative irrigation: Automatic stop after defined water volume
• Consumption statistics: Real-time water usage tracking
• 6-month history: Free cloud storage of consumption data
• Trend graphs: Consumption evolution visualization over periods
• Smart scenarios: Conditional multi-device automations
• Push alerts: Notifications for valve status and abnormal consumption
• Device grouping: Simultaneous control of multiple valves
• Access sharing: Multi-user management with differentiated permissions

Recommended Applications

• Residential gardening: Lawn, flowerbeds, vegetable garden, hedges
• Urban agriculture: Hydroponic crops, greenhouses, community gardens
• Professional green spaces: Public parks, sports fields, golf courses
• Balconies and terraces: Planters, hanging plants, planting boxes
• Drip irrigation: Water-saving micro-irrigation systems
• Outdoor cleaning: Cleaning patios, driveways, vehicles
• Pond filling: Pools, ornamental ponds, reservoirs

Installation and Accessories

• Installation method: Direct screwing onto standard faucet
• Sealing: Teflon tape provided for threading
• Outlet connection: Standard universal diameter garden hose
• Orientation: Vertical recommended (horizontal possible)
• Required tools: No specialized tools required
• Installation time:
• Sealing test: Leak check before final use

Certifications and Compliance

• Certifications: CE, FCC, ISED
• Device class: Class B digital device
• Safety distance: Minimum 20 cm between antenna and user's body
• WEEE: Recyclable product according to directive 2012/19/EU
• EU compliance: Directive 2014/53/EU
• Declaration of conformity: https://sonoff.tech/compliance/

Battery Safety

• Battery replacement: Identical type required (AA 1.5V)
• Mixing prohibited: Do not mix new and used batteries
• Different types: Do not mix brands/types of batteries
• Polarity: Respect +/- installation direction
• Short circuit: Avoid contact between poles
• Leaking batteries: Remove immediately and recycle according to local regulations
• Disposal: Mandatory recycling at specialized collection points
• Extreme temperatures: Do not expose to heat >60°C or extreme cold

Package Contents

• 1x SONOFF SWV Smart Water Valve
• 4x AA batteries (pre-installed)
• 1x Teflon tape for thread sealing
• 1x Multilingual user manual
• 1x Quick installation guide
