Qubino - Z-Wave+ DIN Dimmer ZMNHSD1

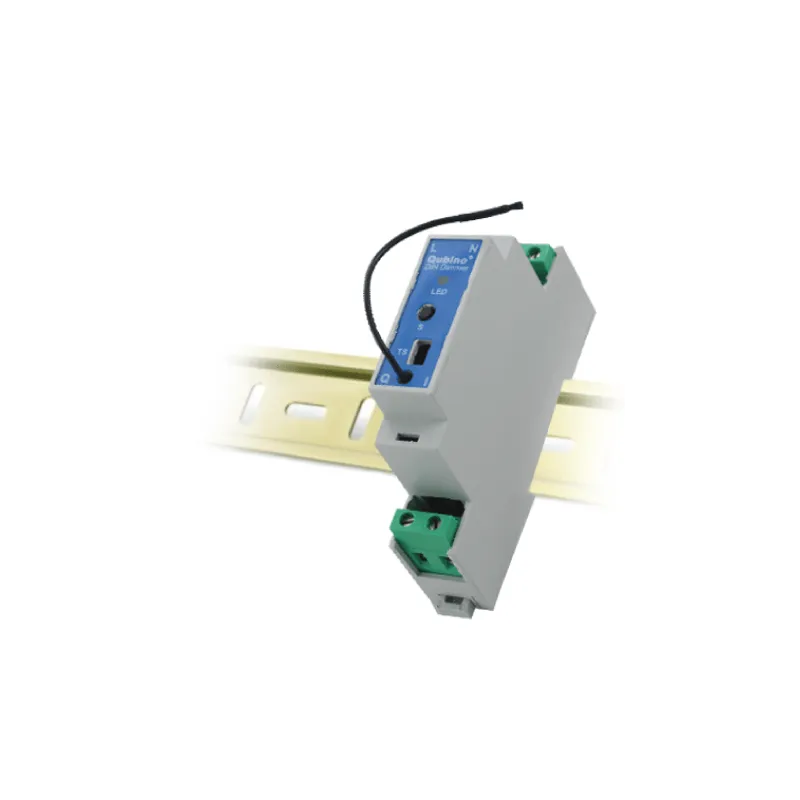

The Qubino DIN ZMNHSD1 dimmer is the first Z-Wave module in din rail format

This Z-Wave+ dimmer module manufactured by Qubino has been designed in DIN rail format enabling for perfect integration into your electrical cabinet.

It replaces a standard or dimmer switch giving remote control over your lighting via Z-Wave Plus technology.

The Mosfet relay fitted into this module enables you to control the intensity of compatible loads, such as dimmable LEDs CFL, incandescent or halogen light bulbs. It is able to dim a light bulb from 0.1W to 200W with no need to add an additional external ByPass type resistor.

The Qubino ZMNHSD1 DIN DIMMER is economical and environmentally friendly: itself consuming less than 0.7W, it also continuously measures the energy used at any given moment (in Watts) of the device it controls.

An additional temperature sensor can be connected to the Qubino module in order for example to manage a heating, air conditioning or ventilation system.

It is also possible to connect a bistable switch or monostable push buttons to its "I" input.

Thanks to Z-Wave PLUS technology the module has an improved range and faster communication. It remains, of course, compatible with previous Z-Wave versions.

Features

• Remote control for lighting/electrical appliances
• Installed directly in the electrical cabinet
• DIM function (dimmer) and power consumption monitoring
• Can be installed on 23V DC and 230V AC circuits
• Simply replaces most switches
• Integrated 500 series Z-Wave chip (Z-Wave+)
• Communication 250% faster compared to standard Z-Wave devices
• Very low power consumption, less than 0.7W
• Operating temperature of -10 to 40˚C
• Analogue temperature sensor connection
• Input for a bistable switch or monostable push button.

Technical specifications

• Power supply: 110 - 230 VAC ±10% 50/60Hz, 24-30VDC
• Power Consumption: 0.7W
• Rated load current of AC output (resistive load): 1A / 230VAC
• Rated load current of DC output (resistive load): 1A / 30VDC
• Power circuit AC output (resistive load): 230W (230V AC)
• Power circuit DC output (resistive load): 24W (24VDC)
• Power monitoring accuracy: +/- 2W
• Radio frequency: 868.42MHz, Z-Wave+
• Range: up to 30m indoors (depending on surrounding material)
• Digital temperature sensor measurement range (sensor sold separately): -50 ~ 125°C
• Operating temperature: -10 ~ 40°C
• Mounting: 35mm DIN rail
• Dimensions (L x H x D): 21x95x64mm
• Weight: 50g
• Certifications: EC, RoHs
