NOUS - Smart Energy Monitor Din Zigbee
Monitor and optimize your energy consumption accurately with the NOUS D4Z smart monitor.
NOUS D4Z Zigbee Energy Monitor compatible with Tuya and Zigbee2mqtt
Enhance the management of your electrical consumption with the NOUS D4Z smart energy monitor. Easy to install in a standard DIN electrical panel, this innovative device uses the Zigbee 3.0 protocol to provide precise and real-time tracking of your energy consumption, accessible directly from the Tuya Smart mobile app. With a measurement capacity of up to 120A, it is ideal for monitoring high-consumption equipment or a complete installation, whether for residential or commercial use.
The NOUS D4Z gives you access to detailed data on your consumption, allowing you to control your costs and reduce your energy expenses. Receive instant notifications in case of consumption spikes, analyze your usage trends over time, and take actions to save and optimize your daily energy consumption.
Technical features of the NOUS D4Z meter:
- Model: NOUS D4Z
- Main function: Energy monitor for DIN rail mounting
- Measurement capacity: Up to 120A
- Operates in three-phase or single-phase
- Communication protocol: Zigbee 3.0 (compatible with Tuya/ Zigbee2mqtt)

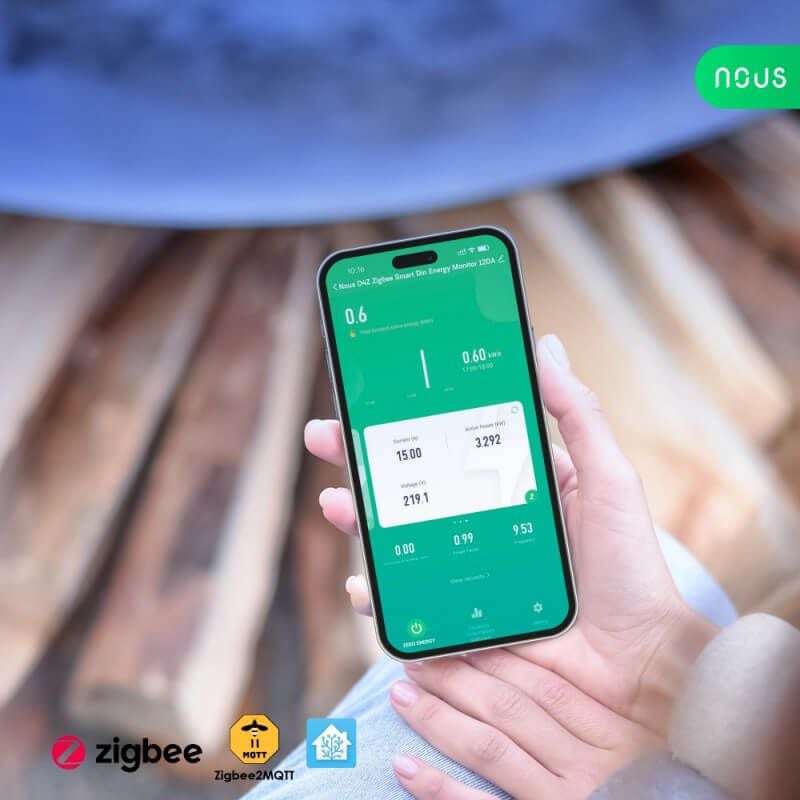

- Consumption tracking: Real-time consumption data visualization
- Compatibility: Compatible with Zigbee ecosystems, Tuya Smart and Smart Life apps, Zigbee2mqtt, Jeedom, Home Assistant

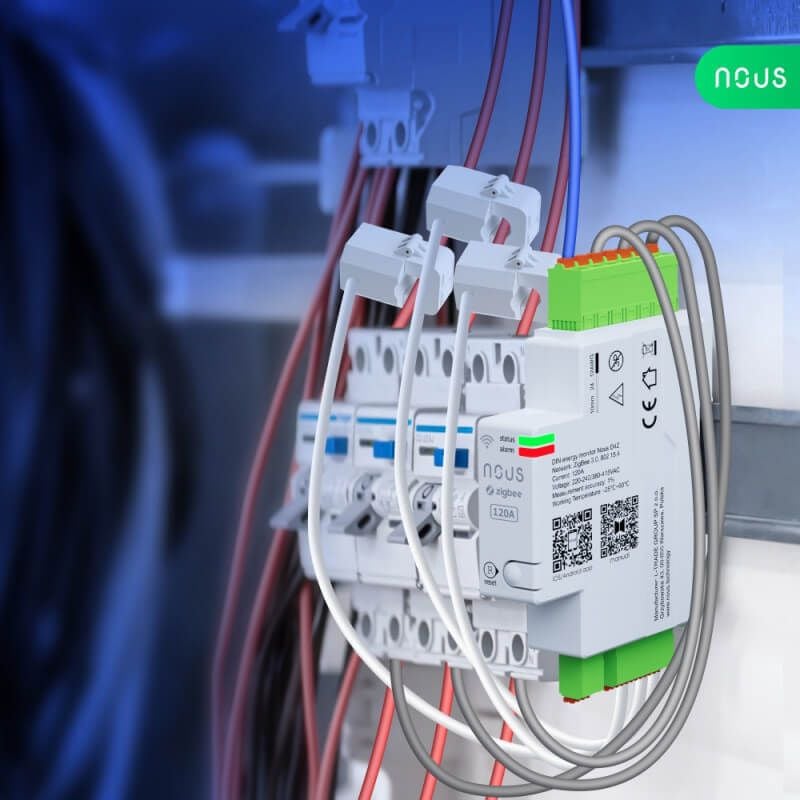

- Installation: Easy installation on standard DIN rail (35 mm)
- Power supply: 100-240V AC, 50/60 Hz
- Internal consumption: Less than 1W

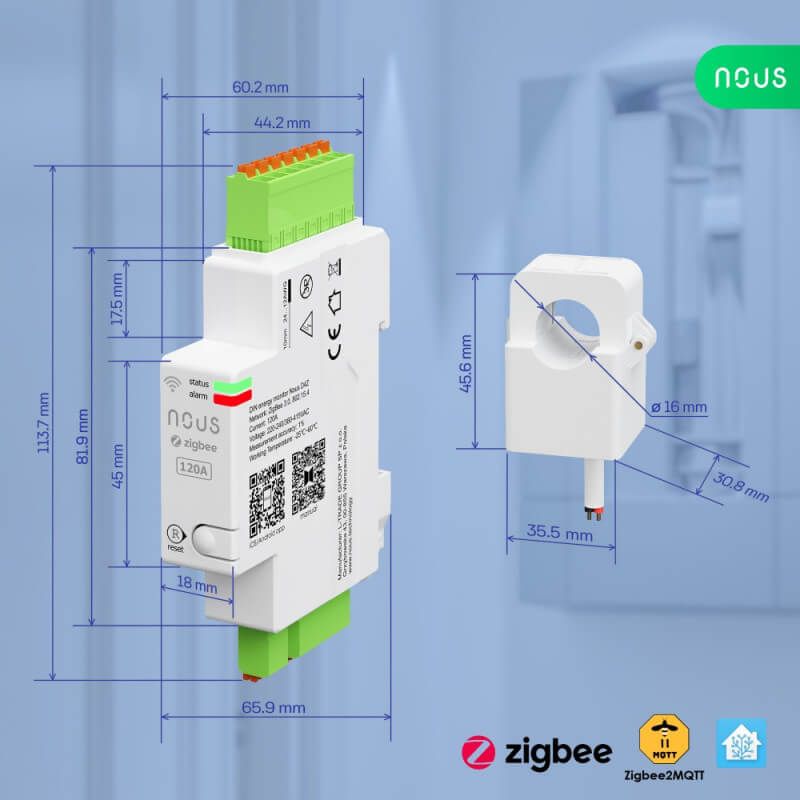

- Dimensions: 36 mm x 70 mm x 65 mm, compatible with standard sizes for electrical panels
- Operating temperature: -10°C to +50°C
- Operating humidity: 0 to 95% RH (non-condensing)
- LED indicators: Connection status and activity indicator
Specifications
| Protocol | Zigbee |
|---|
