The SMLIGHT SLZB-MR1U is an intelligent LAN adapter that allows you to connect and manage remote USB devices while integrating Zigbee 3.0, Thread, Wi-Fi, and Bluetooth protocols, offering a modular and comprehensive solution for advanced home automation installations.

On order
Brand SMLIGHTSKU SM_SLZB-MR1U
Buying this product you will collect CHF1.20 with our loyalty program. Your cart will total CHF1.20.

Introduction

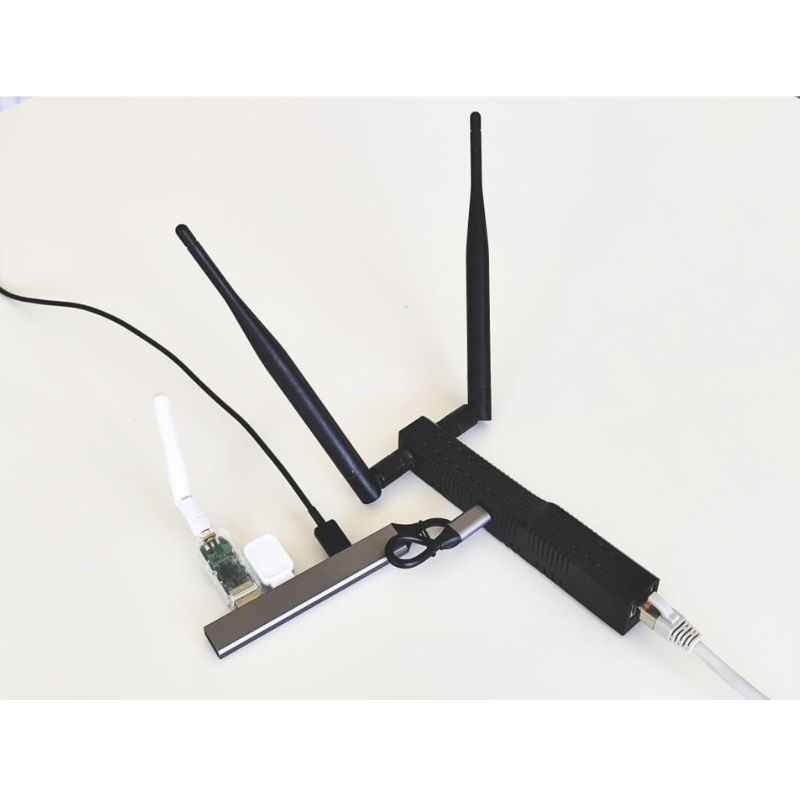

The SMLIGHT SLZB-MR1U is a next-generation smart LAN adapter designed for connected homes. It builds on the solid foundation of the SLZB-MR1 by adding a unique feature: USB device passthrough via Ethernet. This modular device allows you to connect and access remote USB devices, such as Z-Wave keys or custom modules, via the local network, offering unprecedented flexibility for advanced smart home installations.



Key Features

  • Zigbee 3.0 support via the Texas Instruments CC2652P chipset, compatible with Zigbee2MQTT and ZHA.
  • Thread Border Router functionality thanks to the Silicon Labs EFR32MG21 chipset, compatible with OpenThread.

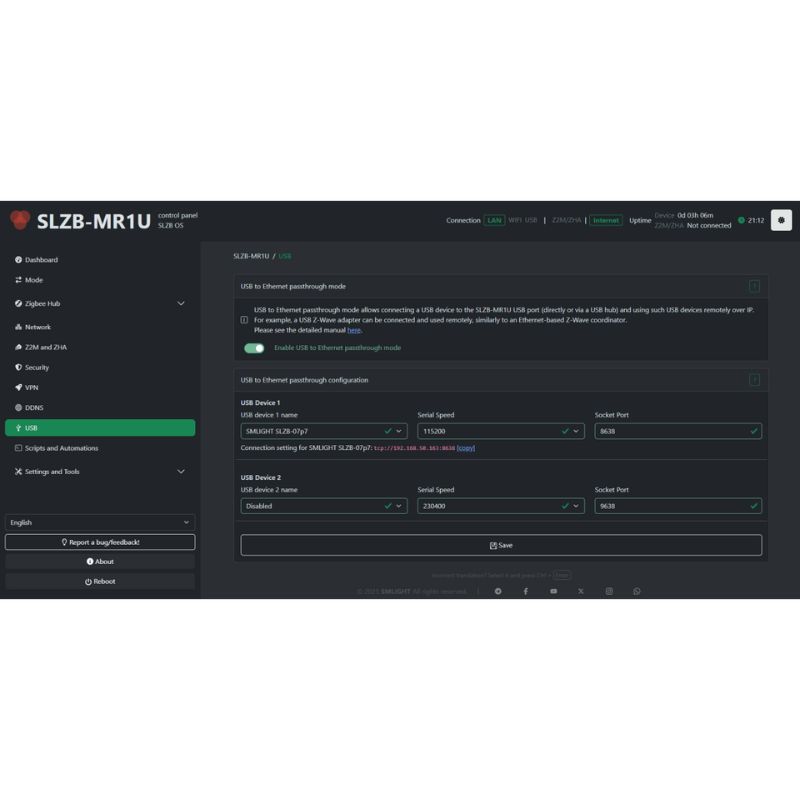

  • USB passthrough over Ethernet allowing connection and access to remote USB devices via TCP/IP.
  • Integrated Wi-Fi and Bluetooth connectivity via an ESP32 module.
  • Modular architecture allowing connection of any USB device via a port or USB hub.
  • Power via LAN with PoE (Power over Ethernet) or via USB-C for flexible installation.

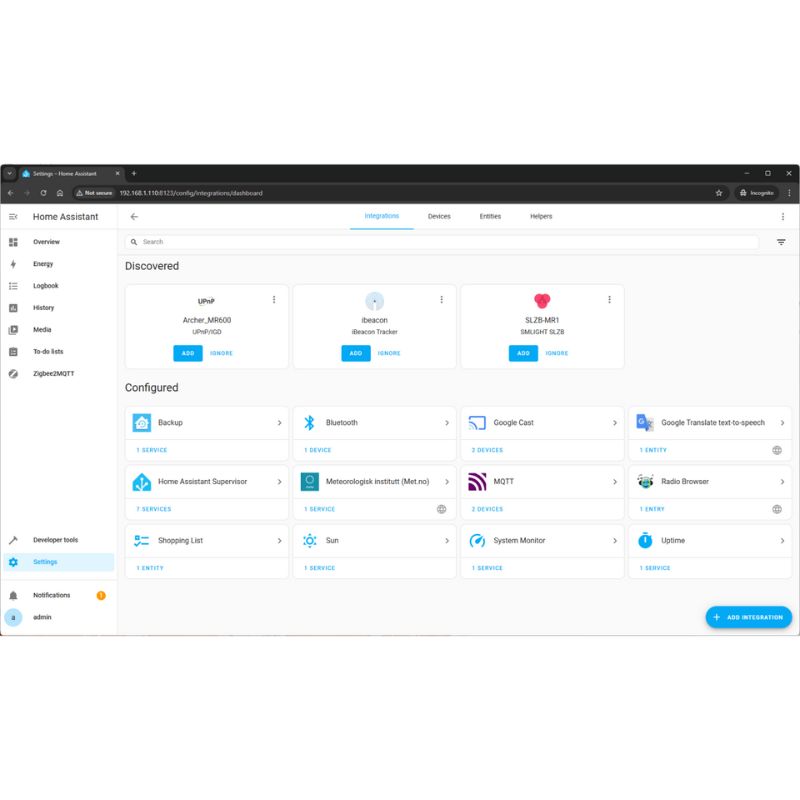

  • Compatibility with smart home platforms such as Zigbee2MQTT, Home Assistant, OpenThread, and Z-Wave JS (via a USB stick).
  • Pre-installed SLZB-OS operating system, with firmware update via a web interface.



Technical Specifications

  • Radio Chipsets:
    • Texas Instruments CC2652P7: Zigbee 3.0 support, +20 dBm transmission power, 144 kB + 8 kB RAM, 704 kB Flash.
    • Silicon Labs EFR32MG21: Thread support, +20 dBm transmission power, 96 kB RAM, 1024 kB Flash.
  • Connectivity:
    • Ethernet with PoE (48V) for a stable connection.
    • Integrated Wi-Fi and Bluetooth via ESP32.
    • USB-C for alternative power supply.
    • Host USB-A port for expansion with USB devices.
  • Power Supply:
    • PoE (IEEE 802.3af) or USB-C (5V DC).
    • Low power consumption, up to 1.5 W when both radio chipsets are active.
  • Enclosure:
    • Compact and durable ABS enclosure with ventilation.
    • Compatible with DIN rail mounting and wall mounting.
    • Compact dimensions for discreet installation.
  • Antennas:
    • External female SMA connectors for each radio chipset.
    • PCB antenna for Wi-Fi and Bluetooth.
    • Two high-gain external 2.4 GHz antennas included.
  • LED Indicators and Peripherals:
    • 6 independent status LEDs for each radio.
    • Multifunction button for mode selection, reboot, etc.
  • Firmware Updates:
    • Remote radio firmware updates via web interface.
    • Support for ESP32 firmware updates.
    • Auto-boot mode for flashing via USB.

Specifications

Protocol Bluetooth Zigbee
Gateway compatibility Home Assistant - Partial compatibility
Wifi Yes
