FIBARO - Z-Wave+ Wall plug with energy consumption monitoring (French format) FGWPE-102-ZW5 (FIBARO Wall Plug)

For use in Switzerland, we recommend the plugs of the manufacturer TKB available on our website.

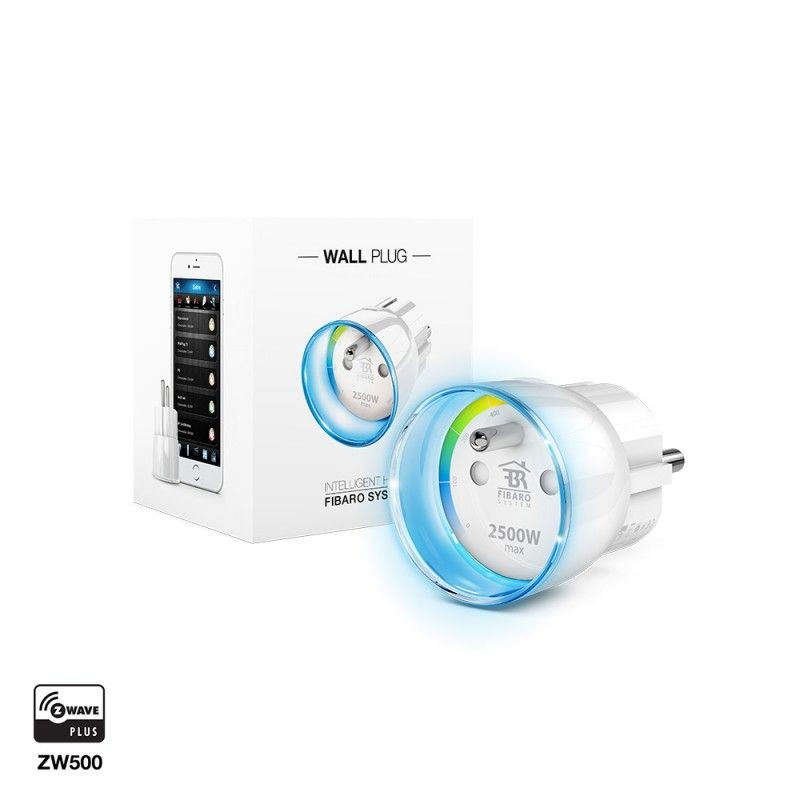

The Wall Plug of FIBARO, a clever Z-wave+ socket

Discover the smallest Z-Wave+ plug module in the world!

This truly multifunctional module is also capable of testing your Z-Wave coverage by displaying a color index representative of the network quality.

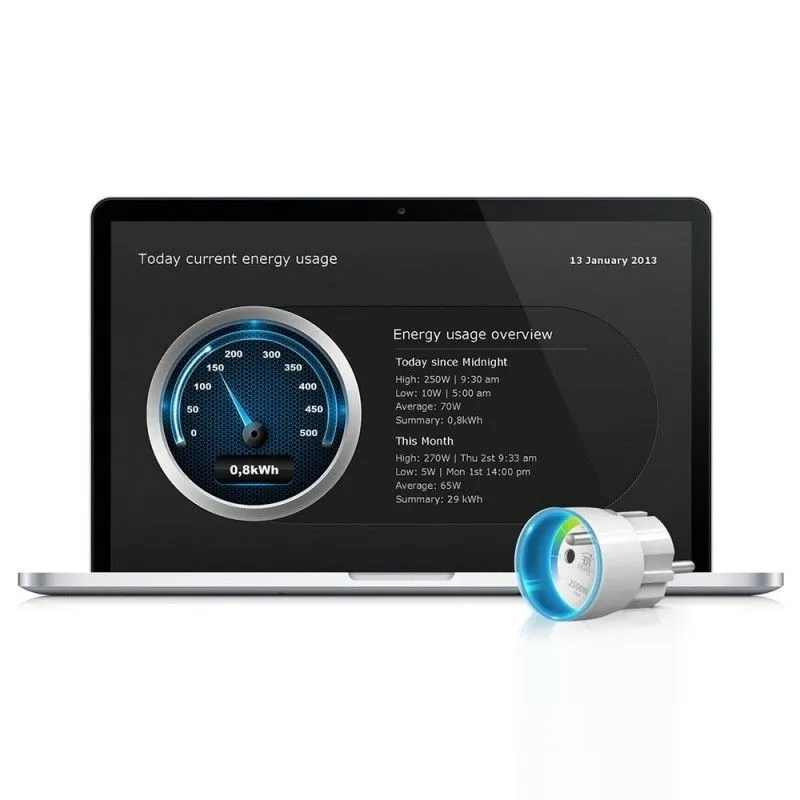

The Wall Plug from FIBARO is a smart plug capable of driving a device or lamp with a maximum power of 2500W while measuring the power consumption of the connected element. Instant and total consumption values are sent to the Z-Wave controller. The built-in visual indicator allows you to have a quick overview of your consumption. The green ring indicates low consumption and the red ring indicates high consumption.

Of course, this module acts as a wireless repeater with the other modules, in order to ensure optimal coverage of the Z-Wave network within your home.

Attention: This plug is not in Swiss format. It is designed for use abroad. It can be used in Switzerland in a foreign outlet provided that the foreign wall outlet is located near a Swiss wall outlet.

Features

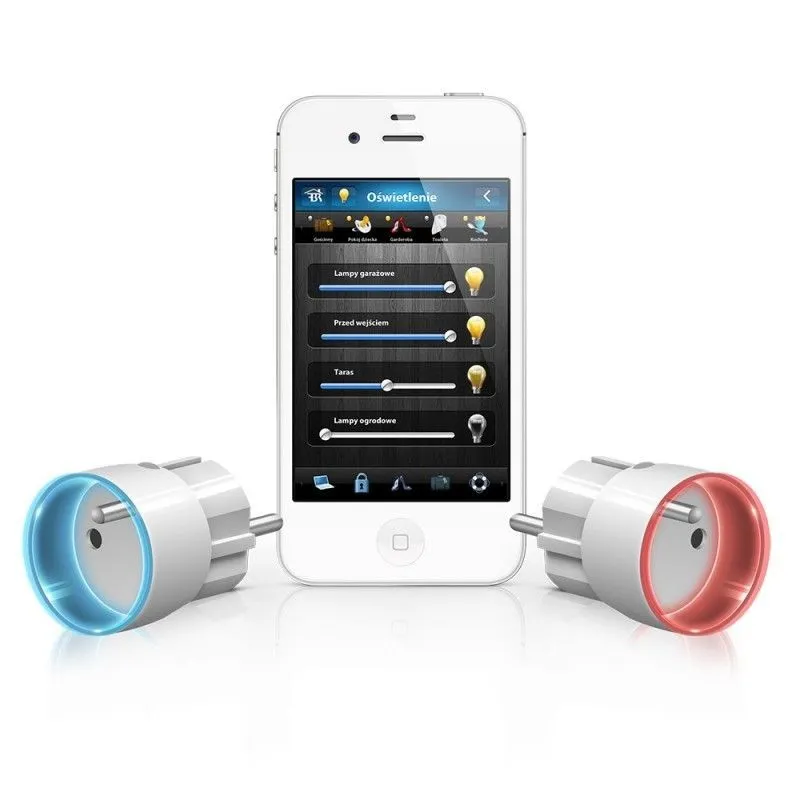

• Control a lamp or device remotely, or locally through the built-in button
• Plug module integrating directly between an electrical socket and the charge to be ordered
• The most compact plug on the market, which avoids blocking adjacent outlets
• ON/OFF function to drive lamps or devices
• Measuring the power consumption of the connected charge
• Overload Alert (>2500W)
• Temperature alert > 55°C
• Local load control via the built-in button
• Indicates in real time the consumption thanks to its light ring
• Unique feature: testing Z-Wave network coverage
• Child protection and night light function
• Wireless update with the FIBARO Home Center 2 box
• Ease of use and installation

Technical Specifications

• Module type: Z-Wave+ receiver
• Power supply: 110 - 230 V AC ±10% 50/60Hz
• Maximum power: 2.5 kW
• Power consumption: 0.8W
• Frequency: 868.42 MHz
• Transmission distance: 50m free field, 30m indoors
• Dimensions: 43 x 65 mm (diameter x height)
• Operating temperature: 0-40°C
• Temperature limit: 105°C
• Standards: EN 55015 and EN 60669-2-1
• Type F (Schuko)
