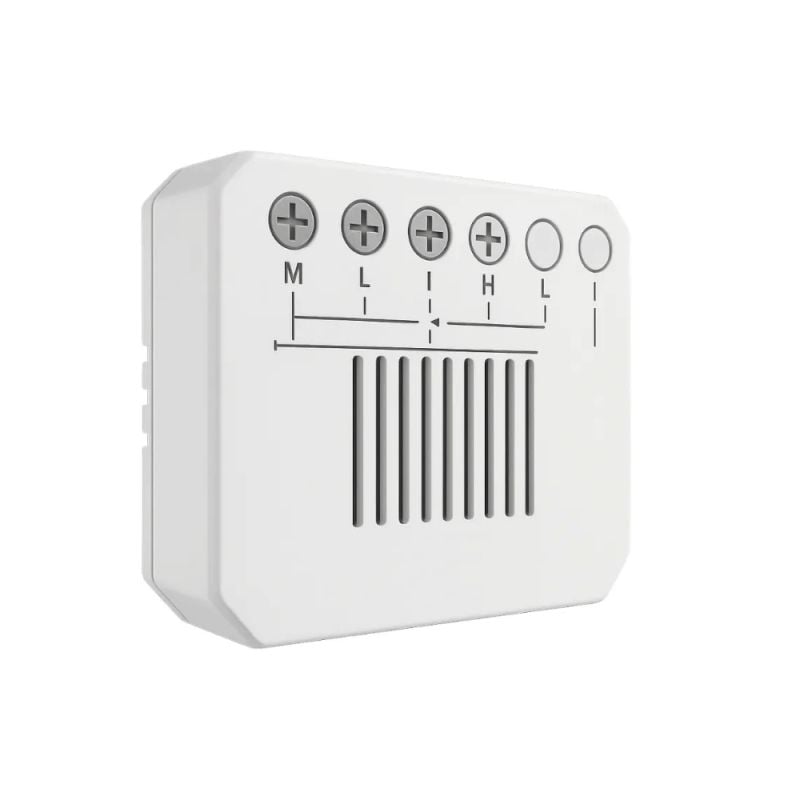

1 Gang ZigBee Connected Switch Module - Akubela ZBMD-C1-R1

PRESENTATION

Transform your traditional electrical installation into a smart system with this Akubela connected switch module. Designed for intelligent renovation, this compact device hides directly in your existing wall box, without requiring major work.

Compatible with the ZigBee 3.0 protocol, this module integrates seamlessly into your home automation ecosystem, communicating with your gateway to give you total control of your electrical equipment, wherever you are. Whether you want to automate your lighting, pilot your boiler or control any electrical appliance, this module is the ideal solution for modernizing your home without changing everything.

With its impressive 16A load capacity, it's just as well suited to conventional domestic applications as it is to more demanding equipment such as boilers. Its ultra-compact design guarantees easy installation in all types of standard flush-mounting box

KEY FEATURES

Universal compatibility
ZigBee 3.0 standard for maximum interoperability with the market's leading gateways and home automation platforms.

Remote Control
Control your devices from your smartphone via the dedicated app or directly from your connected wall control panels.

Simplified installation
Ultra-compact dimensions (50×41×15.7mm) enable integration in any standard flush-mounted box, even the smallest.

Power Supply Versatility
Accepts a wide range of input voltages: 100-250V AC (50/60Hz) or 24-30V DC, adapting to all your electrical configurations.

State memory
Automatic memory function: the module retains its last state in the event of a power failure, and resumes its previous operation when power is restored.

High Load Capacity
Supports up to 16A at 250VAC, making it ideal for controlling energy-hungry equipment such as boilers, electric radiators or heaters.

Real-time control
Two-way communication for instant status feedback and immediate response to your commands.

Flexibility of use
Compatible with different switch types and electrical configurations to suit your existing installation

TECHNICAL SPECIFICATIONS

Product code: ZBMD-C1-R1

Communication protocol: ZigBee 3.0

Input voltage: 100 ~ 250V AC, 50/60Hz or 24 ~ 30V DC

Load capacity: 1 × 16A / 250V AC or 1 × 16A / 30V DC

Number of channels: 1 gang (1 channel)

Dimensions: 50 × 41 × 15.7 mm

Operating temperature: -10°C to +50°C

Storage temperature: -20°C to +70°C

Operating humidity: 10 to 90% RH (non-condensing)

LED indicator: Blue status indicator

Certification: CE

Configuration and pairing

1. Slow indicator (1 flash/sec): pairing pending
2. Hold down reset button for 5 seconds: pairing mode (rapid flashing)
3. Steady indicator: connection established with gateway
