Ajax - Relay or WallSwitch mounting bracket on a DIN rail (Ajax DIN Holder)

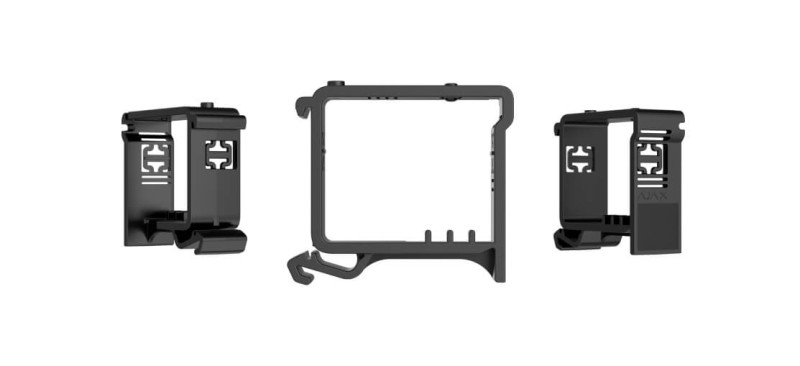

Relay or WallSwitch mounting bracket on a DIN rail
Practicality in the details
The DIN Holder makes it possible to securely attach a Relay or WallSwitch relay to a DIN rail, for example, in a junction box, server box or electrical panel. The stickers provided indicate which device or circuit is controlled by the relay.
Adapted size
The bracket with the relay in place has the same width as the single-phase circuit breaker.
Manual control
The built-in button in the body of the stand allows you to manually control the power supply: by pressing it, you change the status of the contacts in the opposite direction in bistable mode. In pulse mode, you can change the state for the time defined in the settings.
No overheating
Neighboring circuit breakers will not be a problem. The body perforation system provides passive ventilation of the device: the relay can operate at temperatures up to +60°C.
Technical specifications
- Dimensions: 52 × 41 × 18 mm
- Weight: 9 g
- Operating temperature: from –25°C to +60°C
- Permissible humidity: up to 75%
- Materials: Polycarbonate
Specifications
| Type | Accessory |
|---|
-
