Reyee - Wi-Fi 6 Dual-Band 3000 Mbps Access Point for in-wall box RG-RAP1261
Rating:
(0)
CHF151.00
Tax included
- Reyee
- Wi-Fi 6 Omnidirectional Wall-Mount Access Point
- 2.4 and 5 GHz Frequency / 160MHz Channel Width
- Transmission speed up to 3000 Mbps
- MU-MIMO 2x2 antennas in 2.4GHz, 2x2 in 5GHz
- Junction box installation

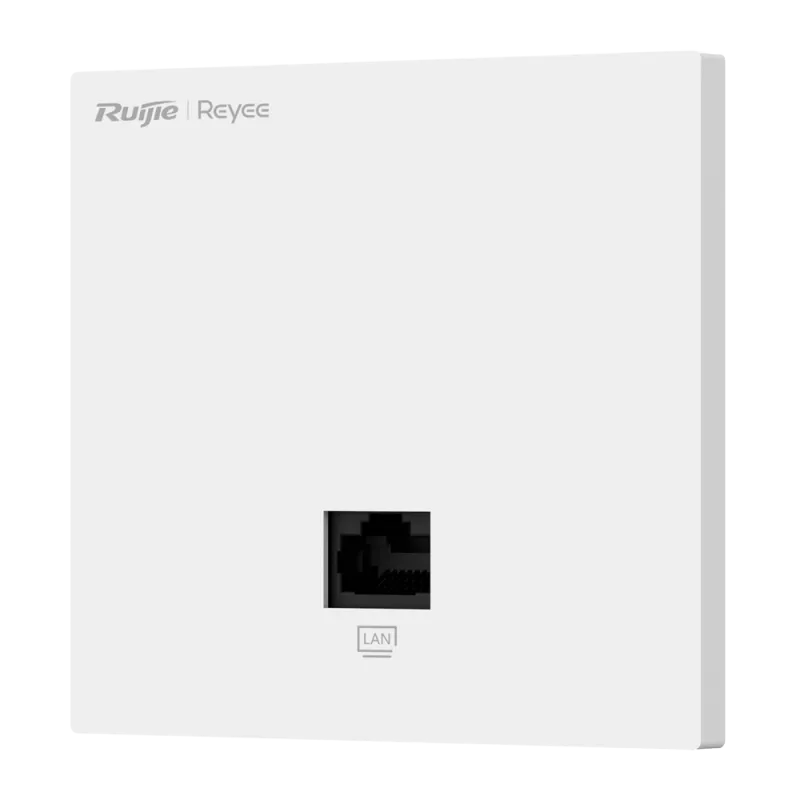

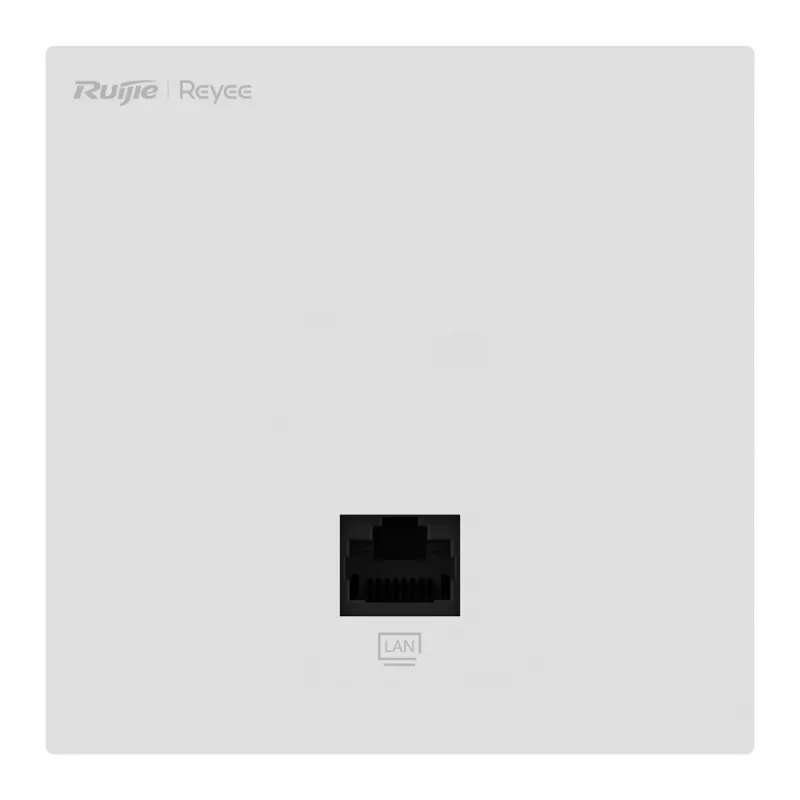

Reyee RG-RAP1261 Wi-Fi 6 Access Point
Overview
The Reyee RG-RAP1261 is a high-performance Wi-Fi 6 access point designed for professional installation. Compatible with the latest Wi-Fi standards, it offers speeds up to 3000 Mbps thanks to its dual 2.4 and 5 GHz bands. Its in-wall mounting capability and management through free Ruijie Cloud make it an ideal solution for professional environments.
Key Features
- Latest generation Wi-Fi 6 (802.11ax) technology
- Simultaneous dual-band 2.4 GHz and 5 GHz
- Combined throughput up to 3000 Mbps
- 2x2 MIMO technology on each band
- In-wall installation with PoE power
- Free Cloud management
- Up to 512 simultaneous clients
Technical Specifications
| Brand | Reyee |
| Wireless Standard | Wi-Fi 6 802.11ax |
| Frequencies | 2.4 GHz and 5GHz |
| Wi-Fi Performance | Up to 3000 Mbps Radio1: 2.4GHz - 574 Mbps Radio2: 5GHz - 2402 Mbps - Up to 160MHz |
| Maximum Transmission Power | Radio1: 2.4GHz - 20 dBm Radio2: 5GHz - 30 dBm |
| Built-in Antenna | Radio1: 2.4GHz - 2x2 MIMO 1.6dBi Radio1: 5GHz - 2x2 MIMO 4.13dBi |
| Interfaces | 1 Rear Uplink RJ45 10/100/1000 Mbps PoE In 1 Downlink RJ45 10/100/1000 Mbps |
| SSIDs | Up to 8 |
| Operating Modes | Wireless Access Point Basic Routing Functions Compatible with Reyee AP Mesh |
| Security | WPA-PSK, WAP2-PSK and WPA-WAP2-PSK |
| Management | Web/Cloud/App/Console |
| Simultaneous Clients | Maximum software: 512 / Recommended: 110 |
| Technologies | Hidden SSID Band Steering Load Balancing Bandwidth Control 802.11k/v Roaming |
| Installation | Junction box |
| Certification | IP41 |
| Power Supply | PoE IEEE802.3af/at 10.2W |
| Operating Temperature | 0°C ~ 40°C |
| Dimensions | 86 x 86 x 42.4 mm |
| Weight | 160 g |
Specifications
| Warranty | 3 years |
|---|---|
| 10/100 Base-T ports | 0 |
| 10/100/1000Base-T ports | 2 |
| 10/100/1000M/2.5G Base-T ports | 0 |
| SFP ports | 0 |
| PoE/PoE+ ports | 0 |
| Max. power consumption | 15 W |
| WiFi standard | Wi-Fi 6 (802.11ax) |
| Max Wifi clients | 512 |
| Recommended Wifi clients | 110 |
| Power supply | IEEE 802.3at/af PoE |
| Wireless Data Rates | 2974 Mbps |
| Cloud-Management | Yes |
| Outdoor use | no |
