Akuvox - ACR-CRP12 long-range UHF reader

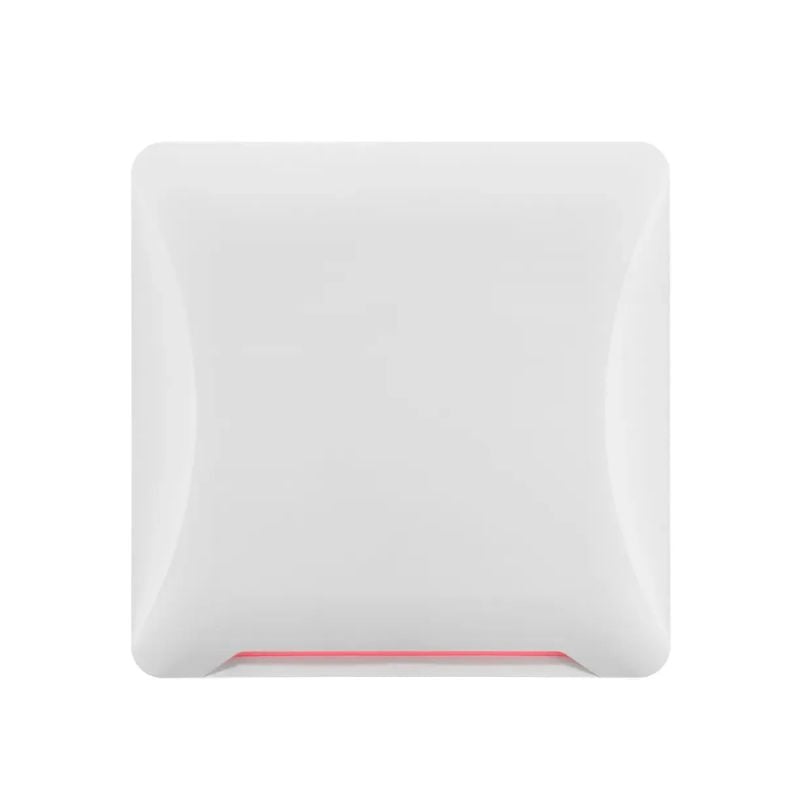

Access control reader Akuvox ACR-CRP12

The Akuvox ACR-CRP12 long-range UHF reader revolutionizes vehicular access control with its reading range of up to 10 meters, eliminating traffic jams at entry points while guaranteeing enhanced security. This professional solution transforms the user experience by providing totally hands-free access for company parking lots, logistics centers and secure facilities. With its multiple communication interfaces (Wiegand, USB, TCP/IP, RS485) and IP66 certification, the ACR-CRP12 integrates perfectly into existing systems, while withstanding the most demanding outdoor conditions.

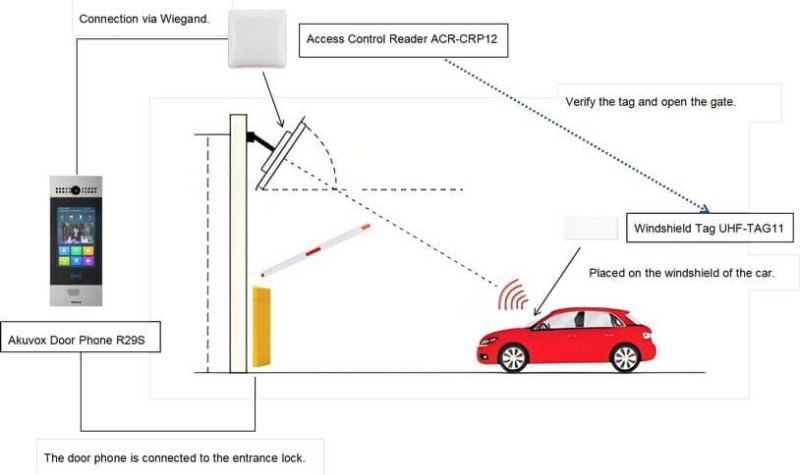

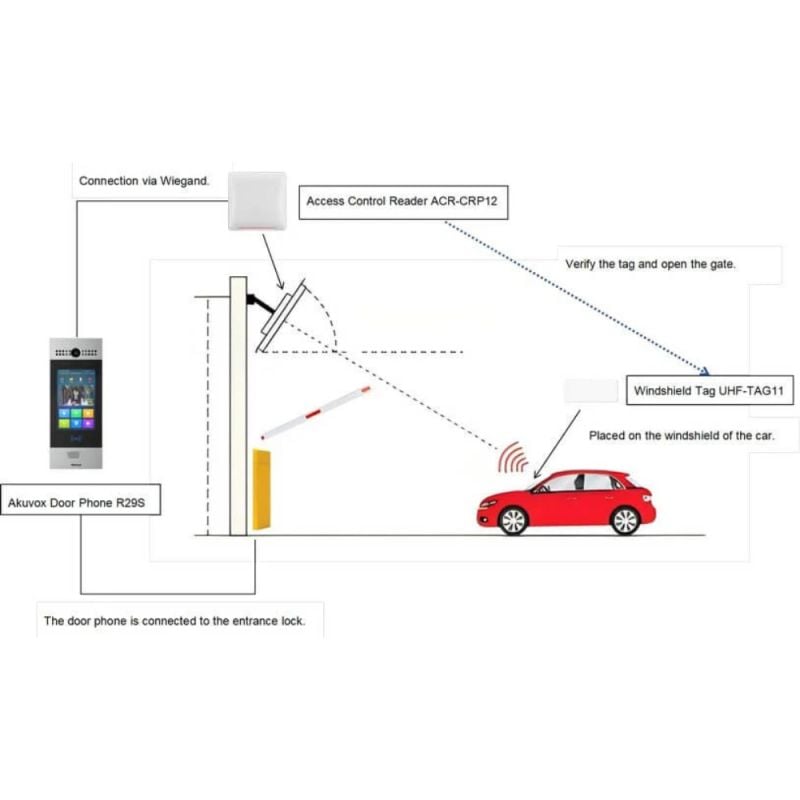

Example topology with an R29:

The R29S is connected to the ACR-CRP12 via Wiegand and to the entrance lock.

The ACR-CRP12 checks the UHF-TAG11 and transmits the data to the R29S.

When the verification is validated on the intercom, the gate opens. Users can place the UHF-TAG11 on the car windshield to facilitate verification.

A new-generation vehicular access solution

L'Akuvox ACR-CRP12 meets the critical challenges of modern access control: smooth traffic flow, enhanced security and ease of use. Unlike traditional systems requiring the vehicle to come to a complete stop, this UHF reader automatically detects and authenticates authorized vehicles within a 10-meter radius.

This ultra-high-frequency technology guarantees instant identification even in adverse weather conditions, through tinted windscreens or in environments with high electromagnetic interference. The system eliminates bottlenecks at peak times, reducing waiting times from minutes to seconds.

Designed with professionals in mind, the ACR-CRP12 is particularly aimed at :

• Corporate parking managers
• Logistics centers
• Industrial facilities
• High-end residential complexes

Immediate commercial benefits

Investment in ACR-CRP12 generates quantifiable benefits from the very first year:

• Significant reduction in security personnel costs
• Increase in effective parking lot capacity
• Full traceability of access for regulatory compliance
• Improved overall facility security
• Complete audit with precise time and date stamping

Identification performance and speed

The core technology of the ACR-CRP12 is its ultra-fast processing capacity:

• Processing of up to 10 identifiers per second
• Total elimination of slowdowns at access points
• Perfect for vehicle convoys or large flows

Environmental robustness and reliability

Rugged design for all environments:

• IP66 certification for intensive outdoor use
• Resistant to rain, snow, dust and spray
• MTBF in excess of 100,000 hours
• Operation from -40°C to +85°C

Advanced security and authentication

Maximum security thanks to state-of-the-art technologies:

• Advanced encryption protocols ISO 18000-6C and EPC Gen 2
• Unique encryption for every badge-to-reader exchange
• Centralized management of access rights
• Instant revocation of compromised badges
• Definition of time slots and circulation zones

Technical specifications

• Supply voltage: DC 9 - 15V
• Power consumption: Standby current less than 1A, read current less than 3A
• Communication interfaces: WG, USB, TCP/IP, RS485
• Buzzer: 1

RF characteristics

• 902-908MHz (US standard)
• 865-868MHz (European standard)
• Antenna gain: 9dBi
• UHF identification range: up to 10 meters

User interface

• Indicator light: Red/Yellow/Green/Blue/Cyan/Violet/White

• Visual and auditory feedback: To inform users

Technical specifications

• Protocol standards supported: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

• Identification: Non-contact, transparent vehicle identification
• Identification: Adaptable and reliable

Mechanical specifications

• Frame: Plastic

• Color: White housing
• Dimensions: 308.5 x 308.5 x 67.5 mm
• Protection rating: IP66

Environmental specifications

• Operating temperature : -20°C ~ +65°C

• Storage temperature: -20°C ~ +80°C
