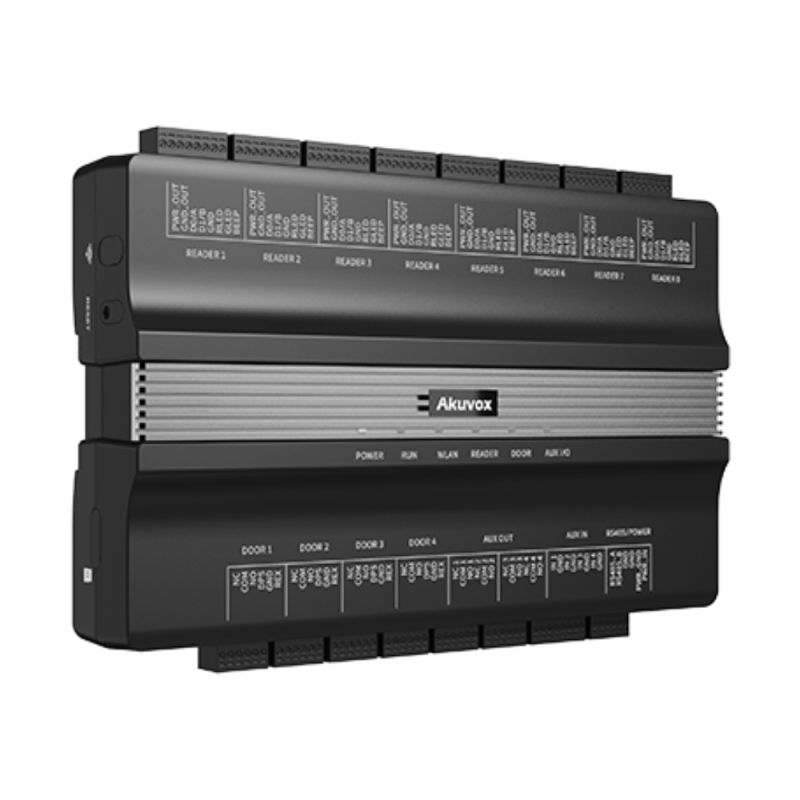

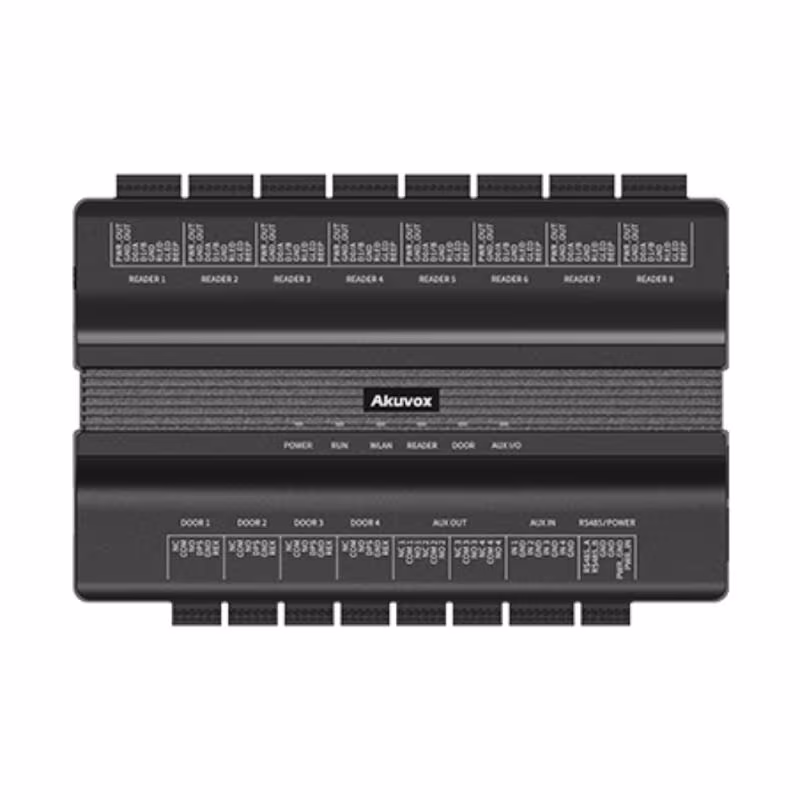

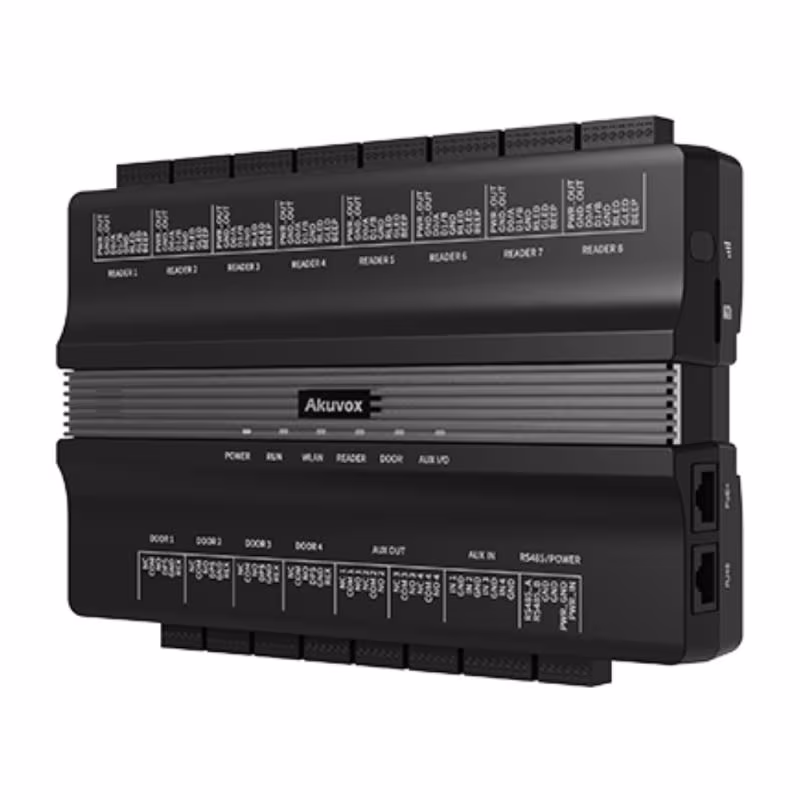

AKUVOX A095S - 4-Door Access Controller

TheAkuvox A095S is a professional 4-door access controller with Ethernet interface, designed to efficiently manage your building's access control. Based on a Linux operating system, it supports up to 100,000 users and offers a range of functions that let you precisely control who enters your building. Its tamper-proof design guarantees optimum security and reliability.

Equipped with 8 Wiegand/RS485 ports, 8 relays, 12 inputs and 8 power outputs, the A095S offers exceptional flexibility for integrating card readers, electric locks and alarm systems. Its ability to manage up to 500,000 cards and 200,000 access logs makes it ideal for medium-sized commercial and residential projects.

The A095S boasts full connectivity: dual Ethernet ports with 802.3at PoE support and dual-band Wi-Fi (2.4GHz and 5GHz). Easy to deploy and manage via a web interface, it integrates perfectly with Akuvox Cloud and ACMS to establish large-scale access control systems.

KEY FEATURES

High capacity and performance

User and card management

• Up to 100,000 users
• Up to 500,000 cards supported
• Up to 100,000 PIN codes
• Up to 200,000 access logs

Multi-door control

4 Managed Doors

• 8 Wiegand/RS485 ports for card readers
• 8 output relays for lock control
• 12 inputs for output buttons, alarms, sensors
• 8 power outputs for peripherals

Multiple card reader support

Supported protocols

• Wiegand 26/34/58
• RS485 (OSDP/OSDP v2)
• Compatible with a wide range of readers on the market

Advanced security features

Intelligent access control

• Anti-pass back: Prevents multiple use of a badge
• Multi-door interlock: Inter-door locking for secure areas
• First person in: First access control

Full Connectivity

Flexible network options

• 2× RJ45 Ethernet ports (10/100 Mbps adaptive)
• PoE IEEE 802.3at (power over Ethernet)
• Wi-Fi IEEE 802.11a/b/g/n/ac/ax (2.4GHz and 5GHz)

Network protocols

• IPv4, HTTP, HTTPS, FTP, TFTP, OSDP
• DNS, SNTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Linux operating system

Professional management

• Web-based management interface
• Auto-provisioning
• Configuration backup/restore
• Web-based firmware update
• Web-based packet dump
• Comprehensive system logs

Cloud and ACMS integration

Centralized management

• Compatible with Akuvox Cloud for remote management
• Integration with ACMS (Akuvox Access Control Management System)
• Facilitates deployment of large-scale access control systems

Flexible installation

Mounting options

• Wall mounting
• DIN rail
• Compact design for discreet installation

Power supply

• PoE IEEE 802.3at (power supply via Ethernet cable)
• External power supply 12V DC / 5A

TECHNICAL SPECIFICATIONS

Hardware

Housing and construction

• Material: Plastic
• Tamper-proof design
• Elegant appearance
• Dimensions (LxWxH): 208 × 128.5 × 37 mm

Operating system

• Embedded Linux

Capabilities

Users and boards

• Users: 100,000
• Cards: 500,000
• PIN codes: 100,000
• Access logs: 200,000

Interfaces and Ports

Access Control Ports

• 8× Wiegand/RS485 ports
• 8× output relays
• 12× inputs
• 8× power outputs

Network connectivity

• 2× RJ45 Ethernet ports, 10/100 Mbps adaptive
• PoE: IEEE 802.3at
• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax, 2.4GHz and 5GHz

Storage and Control

• 1× TF card slot
• 1× reset button
• Status LEDs

Supported card readers

Protocols and standards

• Wiegand 26/34/58
• RS485 (OSDP/OSDP v2)

Access Control Functions

Advanced security

• Anti-pass back
• Multi-door interlock
• First person in

Network and Protocols

Supported protocols

• IPv4
• HTTP, HTTPS
• FTP, TFTP
• OSDP
• DNS, SNTP
• TCP, UDP, TLS
• ICMP, DHCP, ARP

Management and maintenance

Administrator features

• Auto-provisioning
• Web-based management portal
• Web-based network packet capture
• Configuration backup/restore
• Firmware update
• System logs
• Compatible with Akuvox Cloud and ACMS

Power supply

Power supply options

• Input: 12V DC / 5A
• PoE: IEEE 802.3at (via Ethernet)
• 8× power outputs for external devices

Environment

Operating conditions

• Operating temperature : -10°C to +55°C
• Storage temperature: -20°C to +70°C
• Operating humidity: 10% to 90%

Installation

Mounting options

• Wall mounting
• DIN rail
• Compact dimensions: 208 × 128.5 × 37 mm

APPLICATIONS

Commercial environments

• Office buildings
• Shopping centers
• Industrial areas
• Schools

Residential environments

• Apartment buildings
• Secure residences
• Condominiums
• Residential complexes

Special Facilities

• Hospitals and clinics
• Data centers
• Laboratories
• Restricted areas
